Control Module

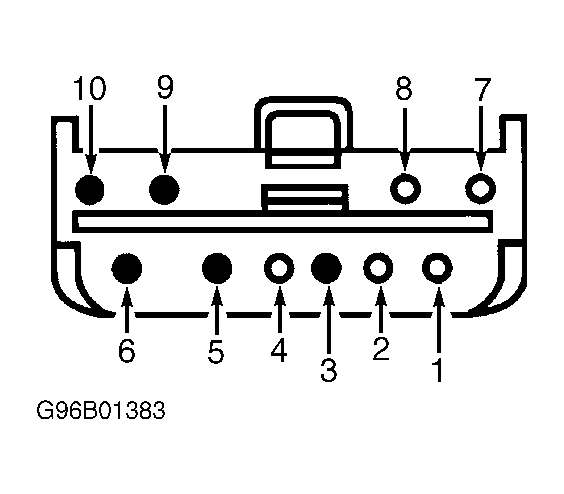

With control module still connected, backprobe terminals with test light. Verify condition of terminals match specification as shown in CONTROL MODULE SPECIFICATIONS table. See Fig 1. If any terminal fails test, replace control module. Control module is located behind trim panel in body cavity at left rear of driver's seat.
CONTROL MODULE SPECIFICATIONS
| Terminal No. | Switch Position | Terminal Condition |
|---|---|---|
| 1 | UNLOCK | Battery Voltage |
| 2 | LOCK | Battery Voltage |
| 4 | ALL | Ground |
| 7 | LOCK | Battery Voltage |
| 8 | ALL | Battery Voltage |
