Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

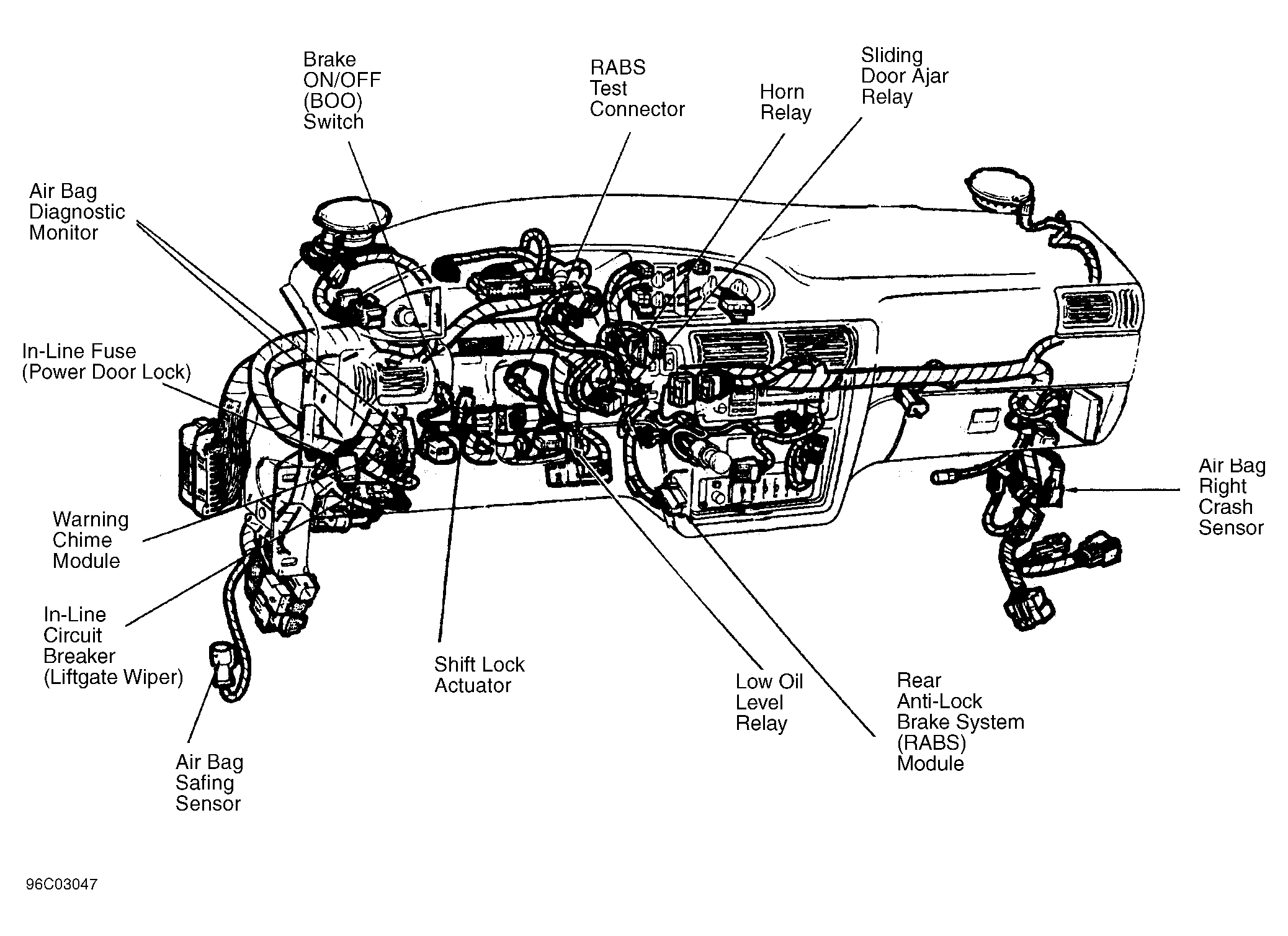

| Air Bag Diagnostic Monitor | Above left kick panel. See Figure . |
| Anti-Lock Brake System (RABS) Module (Rear) | Behind center of dash, below front ashtray. See Figure . |
| Daytime Running Lamps (DRL) Module | On front of left fender apron, in front of starter relay. See Figure . |

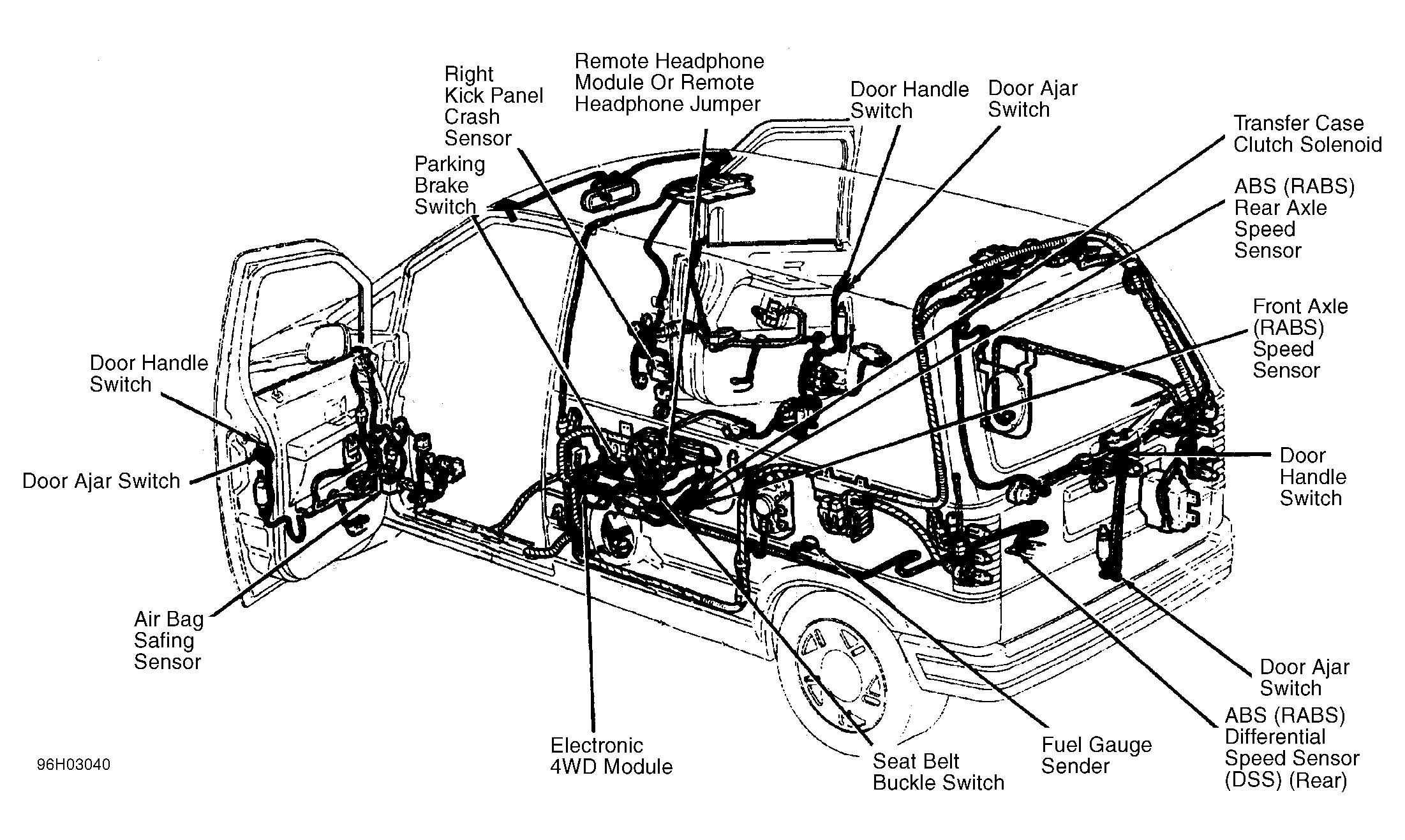

| Electronic 4WD Module | Under driver's seat. See Figure . |

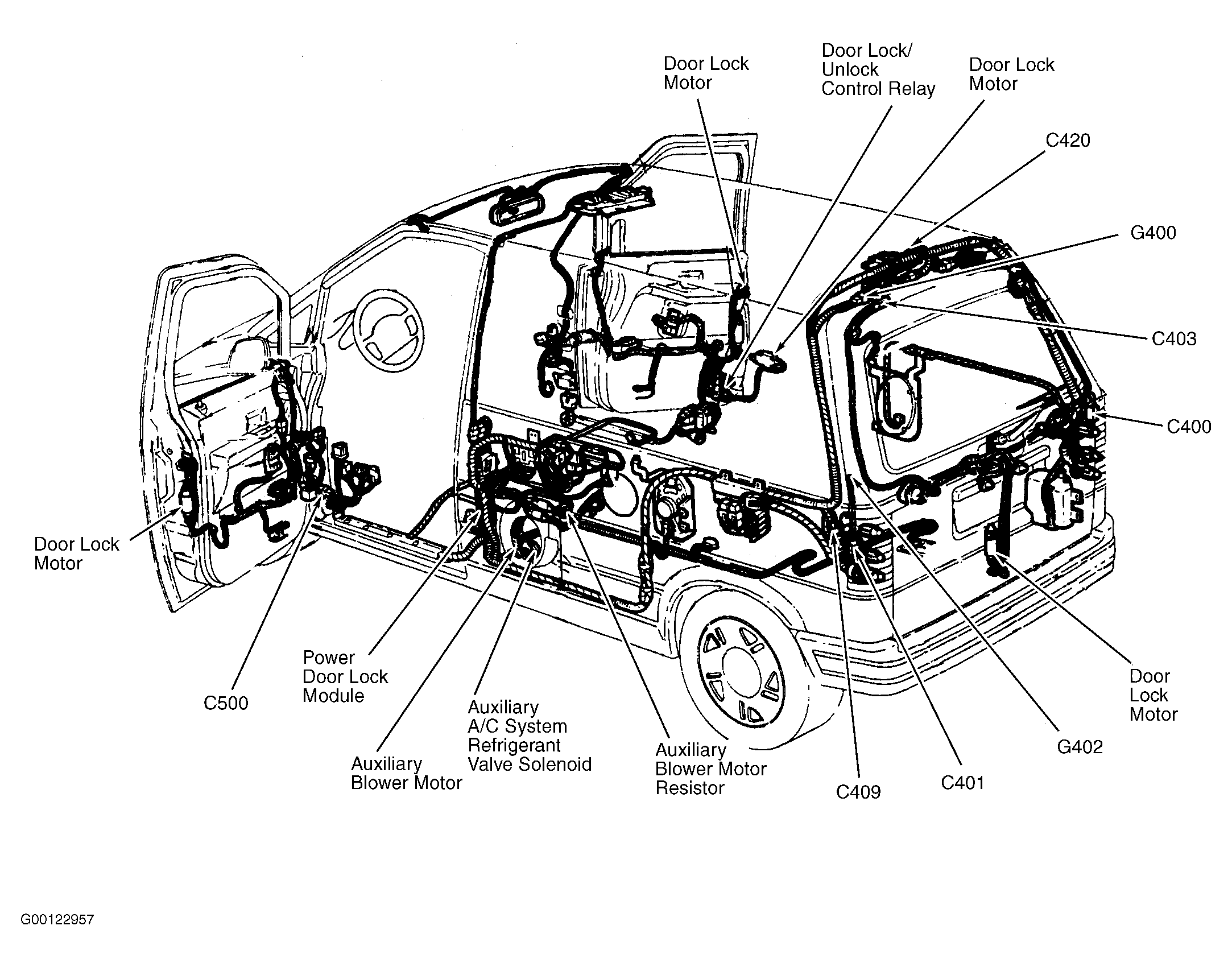

| Power Door Lock Module | Behind left "B" pillar. See Figure . |

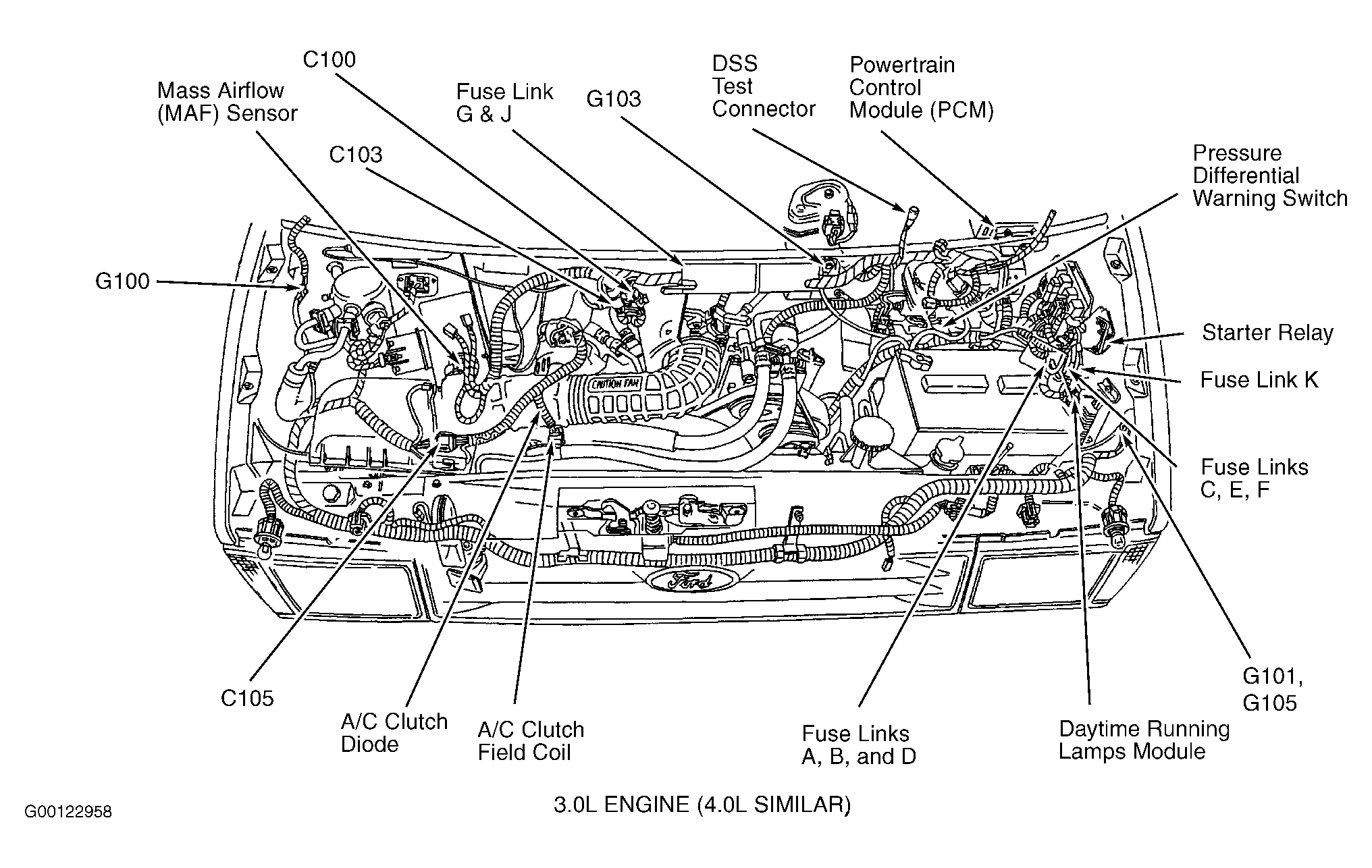

| Powertrain Control Module (PCM) | On left side of master cylinder. See Figure . |
| Remote Headphone Module | Behind left rear quarter panel. See Figure . |
| Warning Chime Module | Above left kick panel. See Figure . |

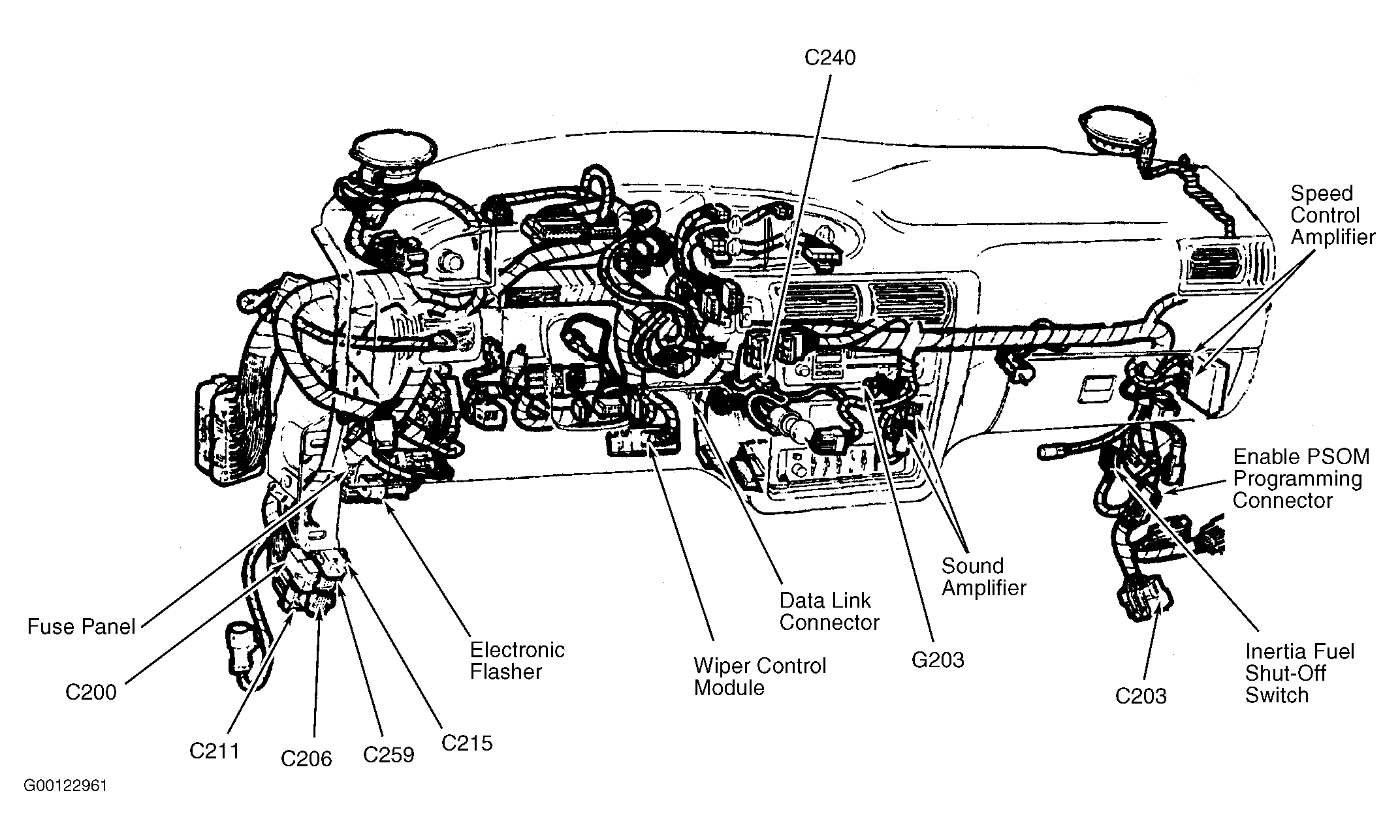

| Wiper Control Module | Behind left side of dash, on right side of steering column. See Figure . |
