Throttle Position Sensor: Service and Repair

Throttle Position Sensor:

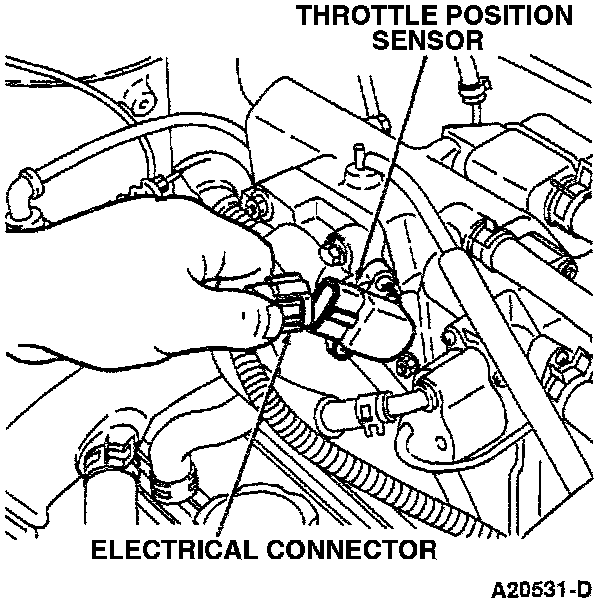

1. Remove the Throttle Position (TP) sensor electrical connector.

Throttle Position Sensor:

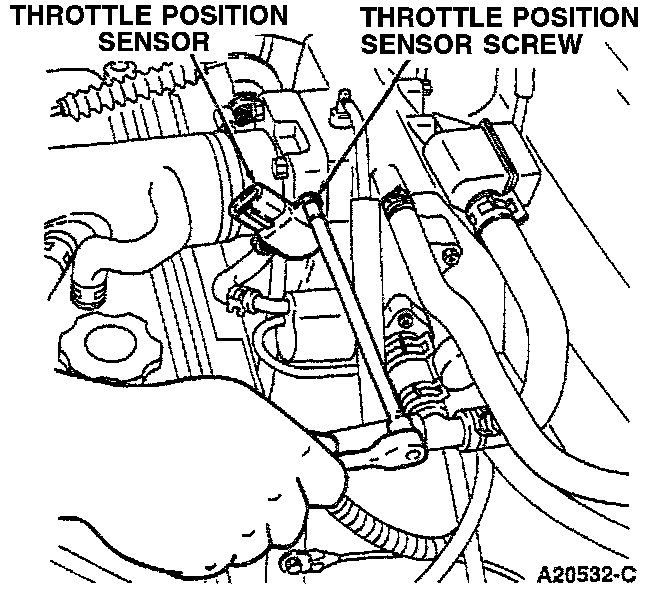

2. Remove the two TP sensor screws
3. Remove the sensor from the throttle body.
4. To install, reverse the removal procedure. Tighten the TP sensor screws to 1.6-2.3 Nm (14.2-20.3 lb in).
5. Adjust the sensor. Adjustments
