Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| Circuit Breaker Power Locks/4WD/Tailgate Window | In cavity No. 12 of fuse block. |
| Circuit Power Windows | In cavity No. 14 of fuse block. |

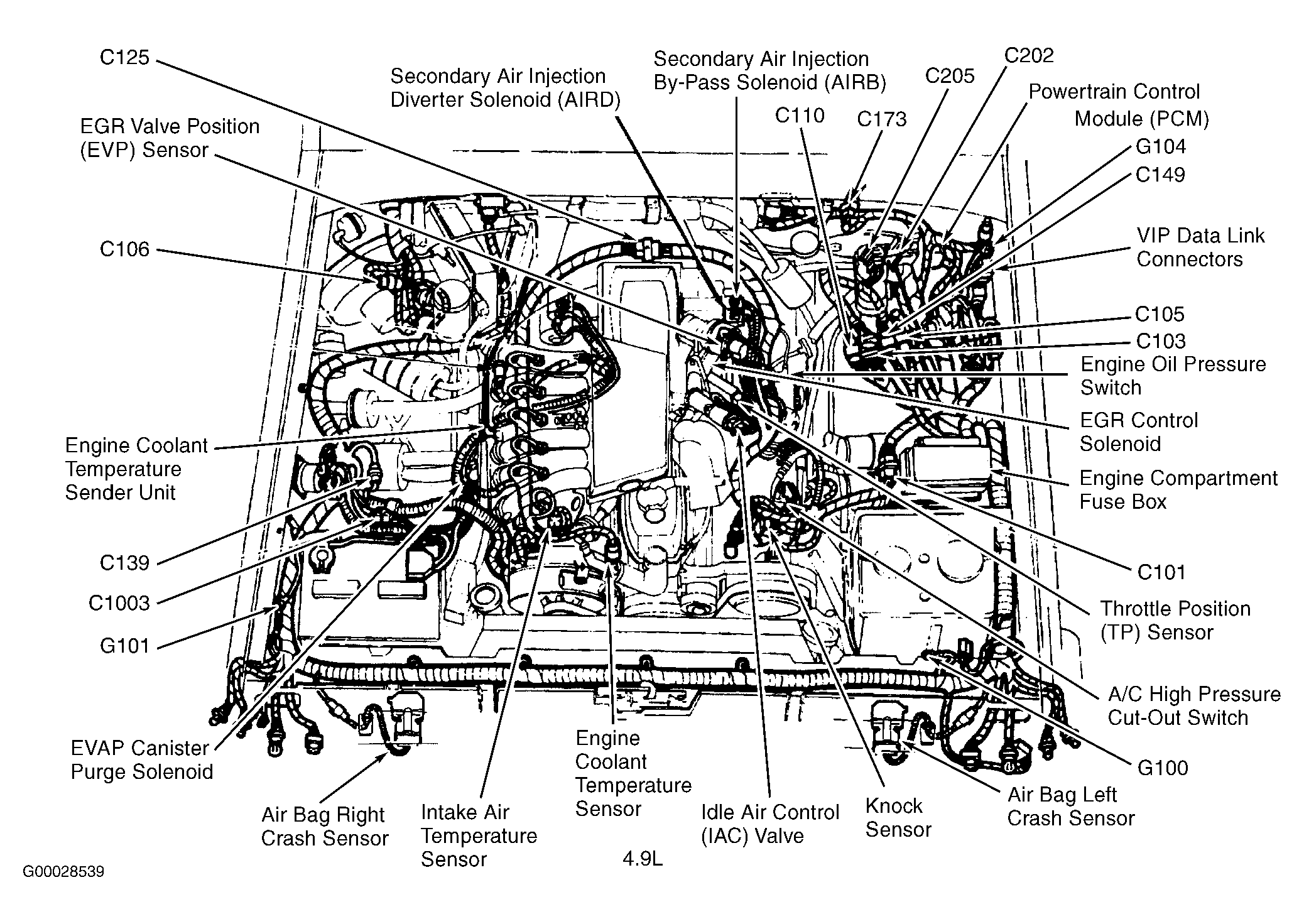

| Engine Compartment Fuse Box (4.9L) | In engine compartment, on left inner fender panel. See Figure. |

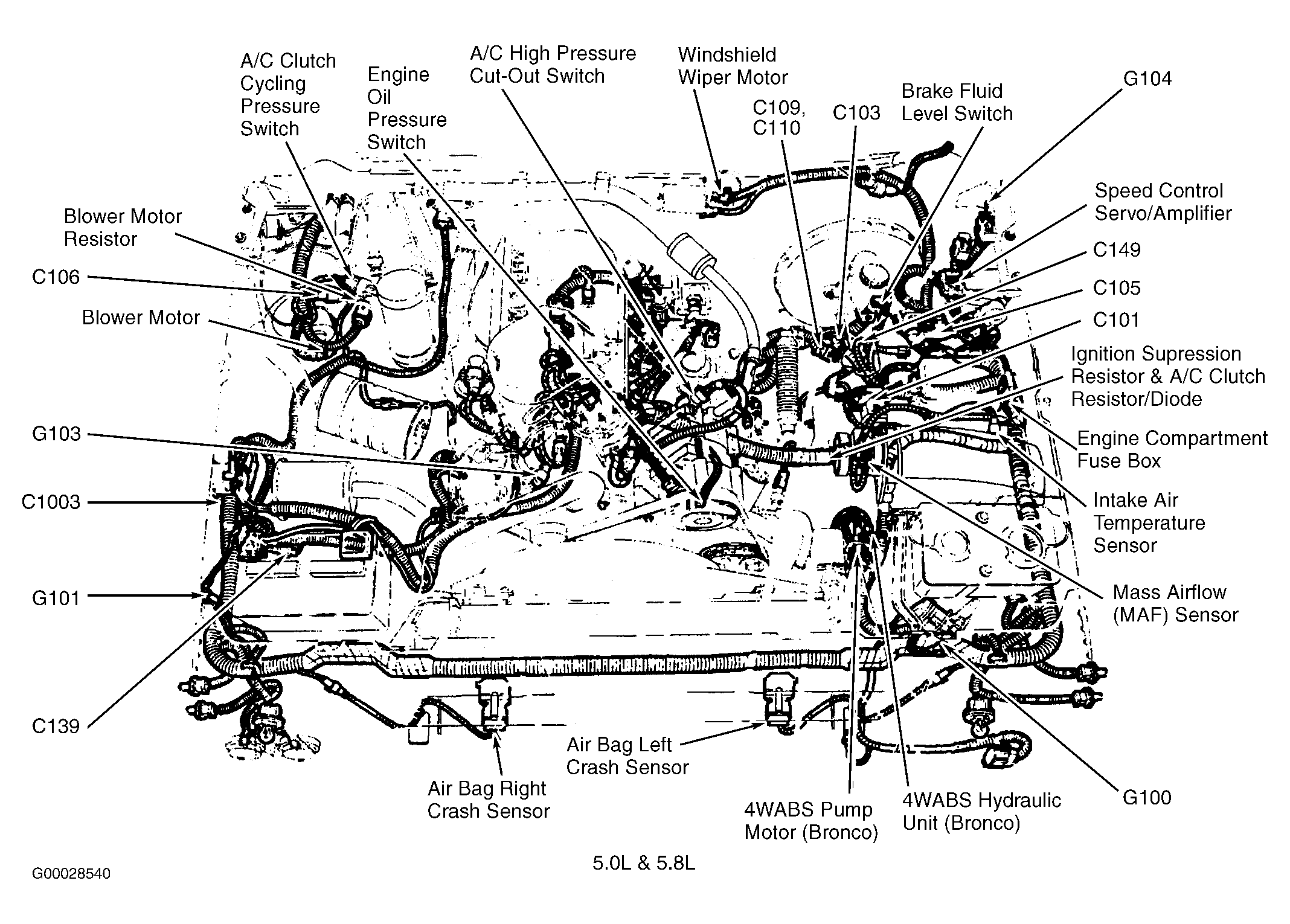

| Engine Compartment Fuse Box (5.0L & 5.8L) | In engine compartment, on left inner fender panel. See Figure. |

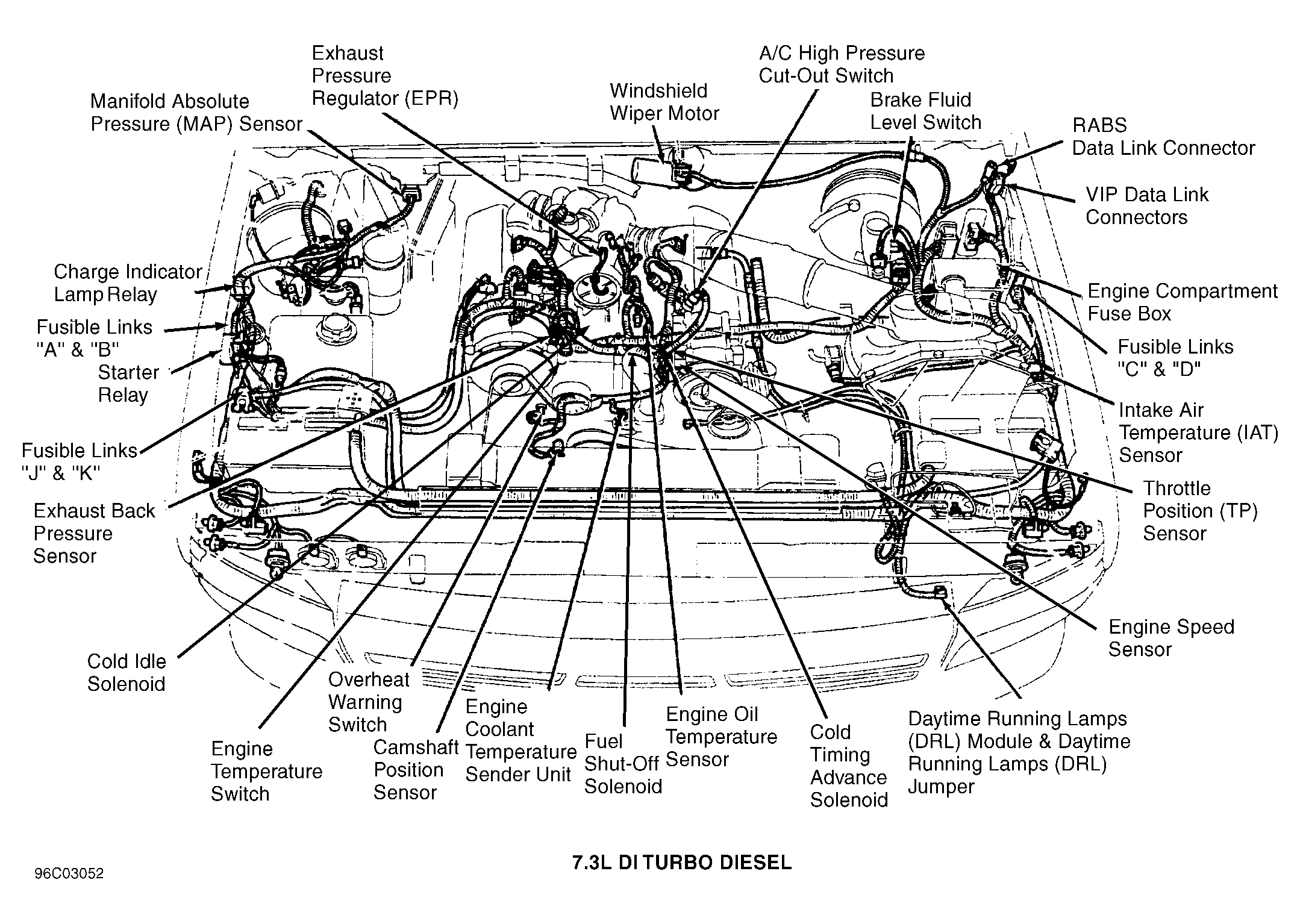

| Engine Compartment Fuse Box (7.3L DI Turbo Diesel) | In engine compartment, on left inner fender panel. See Figure. |

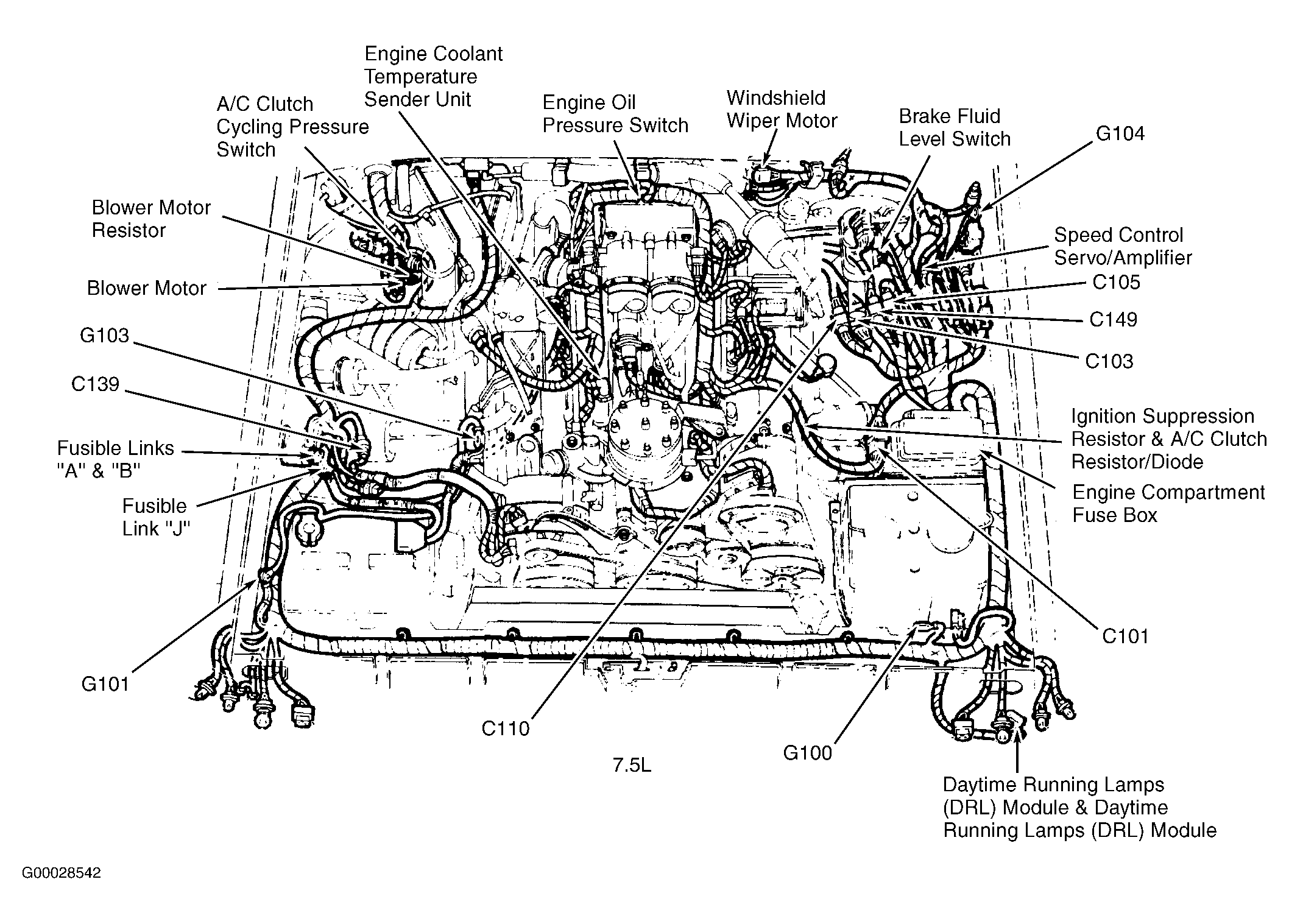

| Engine Compartment Fuse Box (7.5L) | In engine compartment, on left inner fender panel. See Figure. |

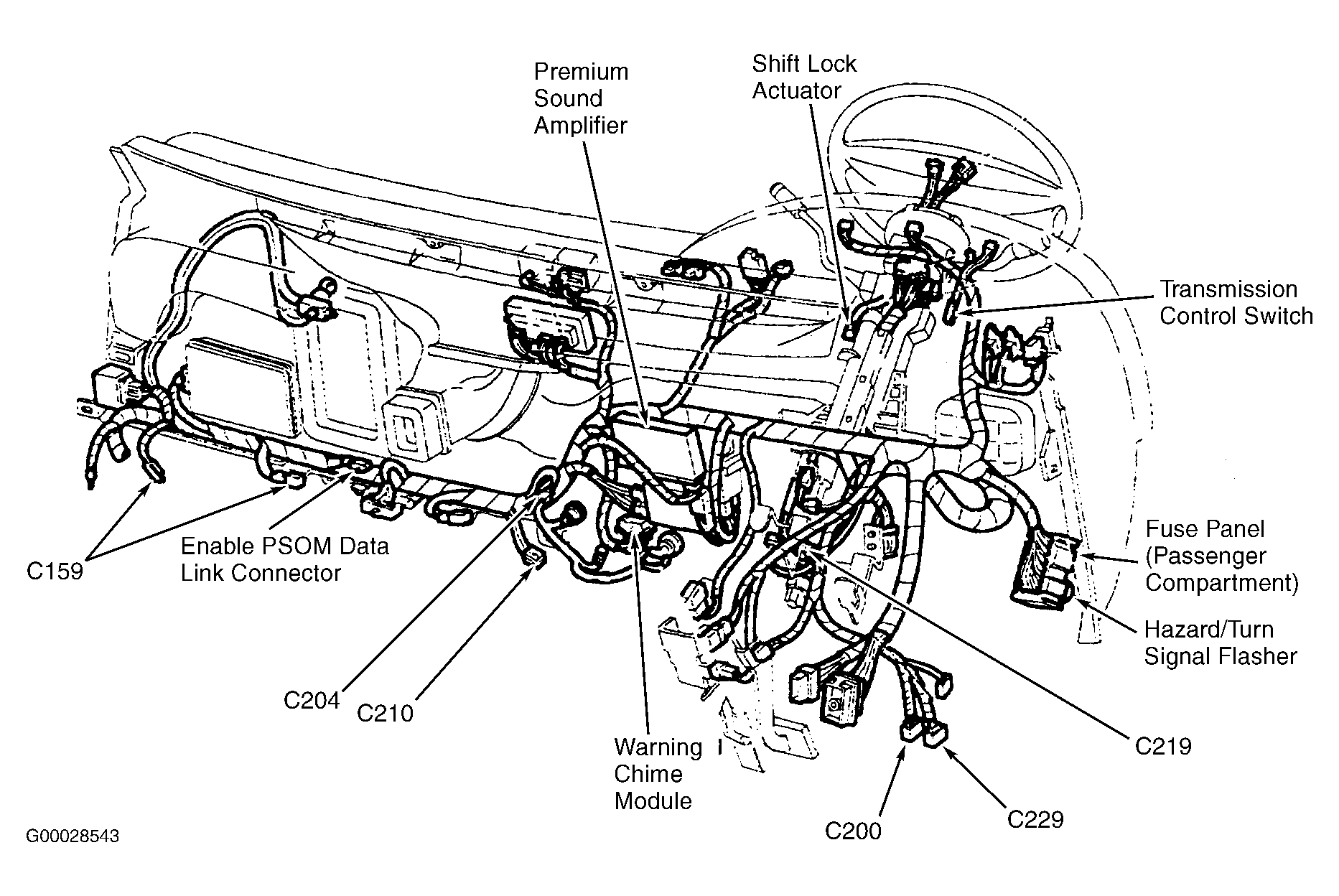

| Fuse Panel (Passenger Compartment) | Behind left side of dash. See Figure. |

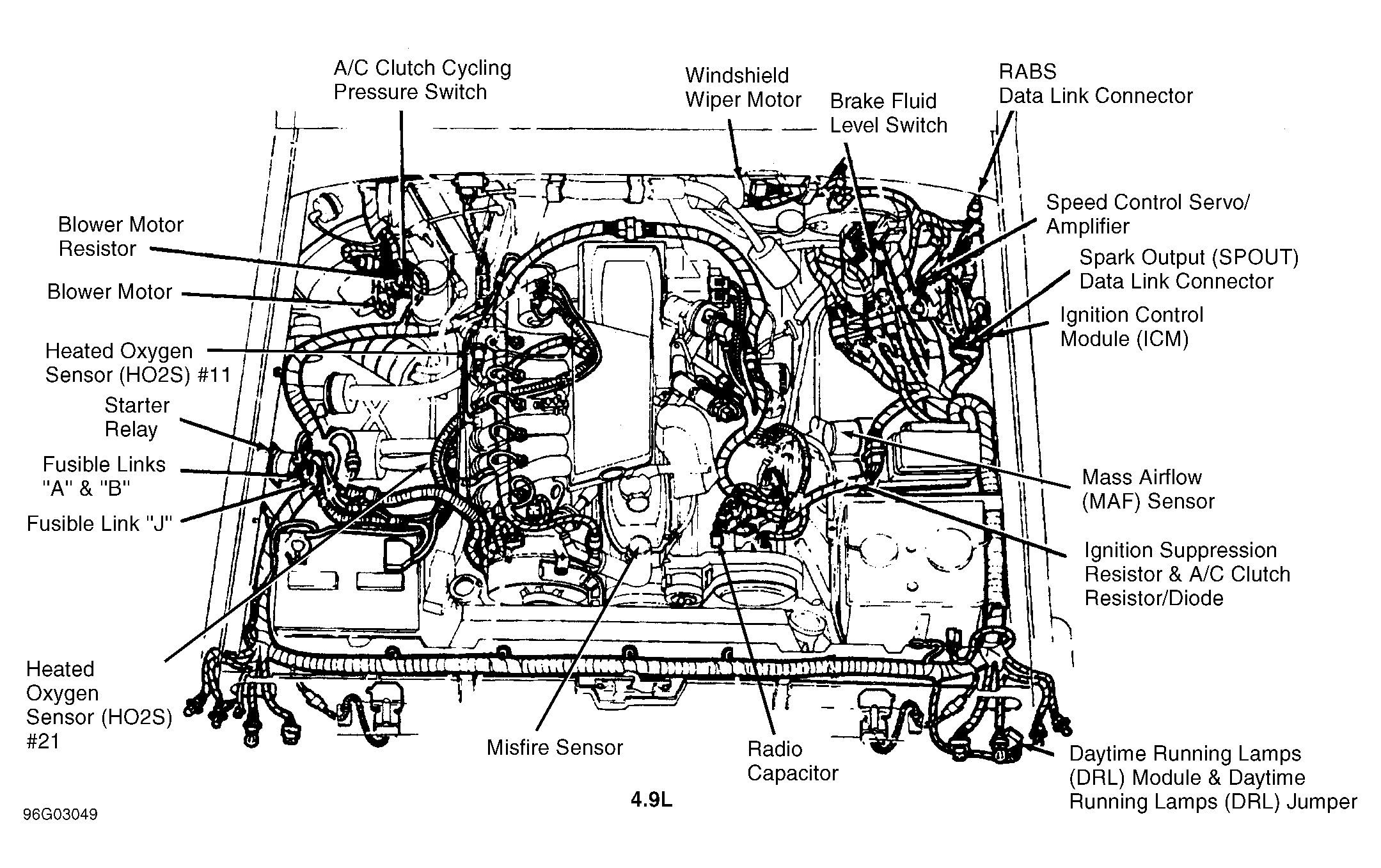

| Fusible Links "A & B" (Gray) (4.9L) | At starter relay. See Figure. |
| Fusible Links "A & B" (Gray) (7.3L DI Turbo Diesel) | At starter relay. See Figure. |
| Fusible Links "A & B" (Gray) (7.5L) | At starter relay. See Figure. |
| Fusible Links "C & D" (DK Green) (7.3L DI Turbo Diesel) | On engine compartment fuse/relay block. See Figure. |
| Fusible Link "J" (Gray) (4.9L) | At starter relay. See Figure. |
| Fusible Links "J & K" (Gray) (7.3L DI Turbo Diesel) | At starter relay. See Figure. |
| Fusible Link "J" (Gray) (7.5L) | At starter relay. See Figure. |
| MEGA Fuse | Right hand front of engine compartment (on generator/voltage regulator bracket). |
| Trailer Relay Block | On engine compartment fuse/relay block. |
