Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module (Rear) | Behind glove box. See Figure. |

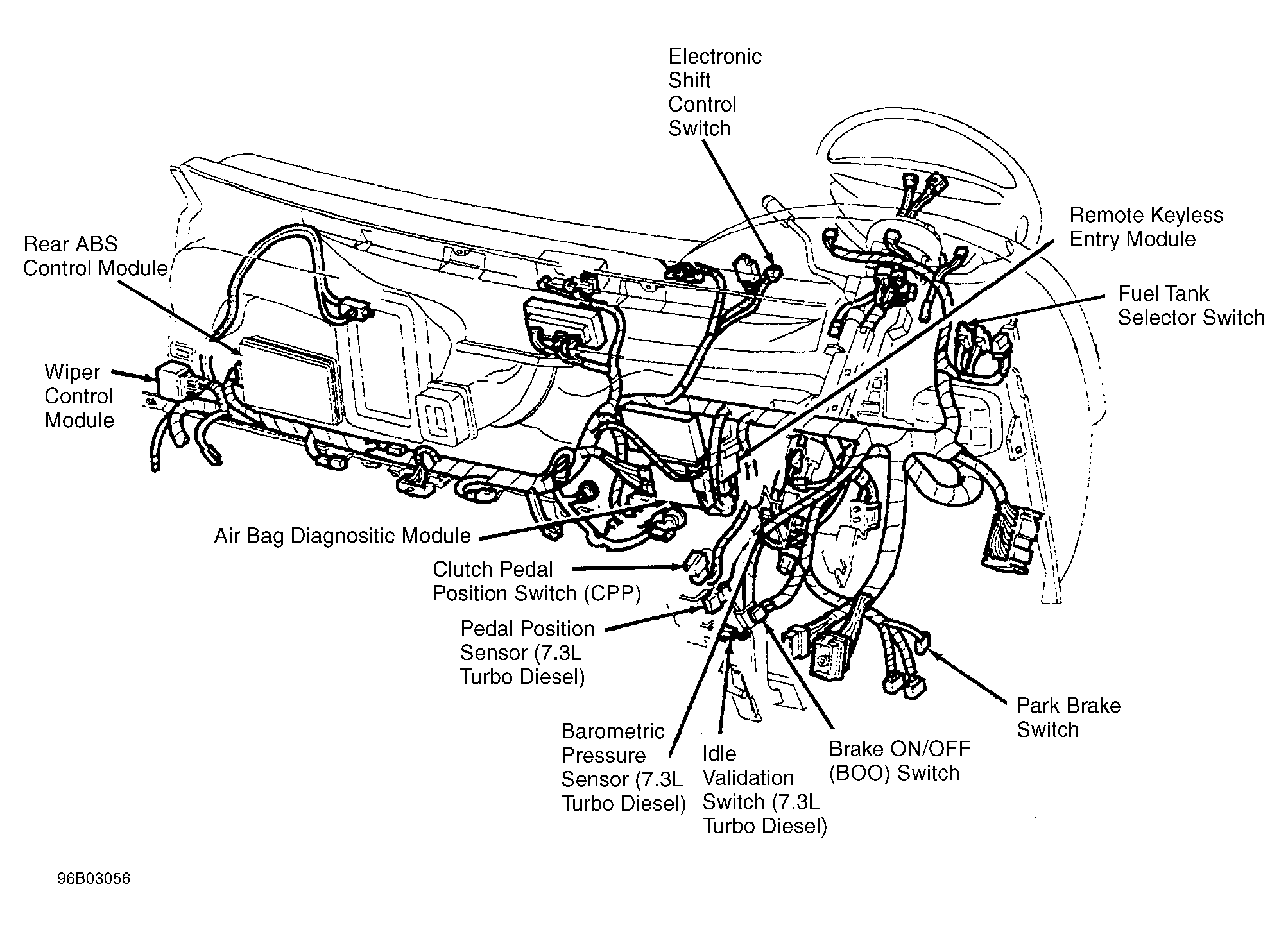

| Air Bag Diagnostic Module | Behind left side of dash. See Figure. |
| Daytime Running Lights (DRL) Module (4.9L) | On left side of lower radiator support. See Figure. |
| Daytime Running Lights (DRL) Module (5.0L & 5.8L) | On left side of lower radiator support. See Figure. |
| Daytime Running Lights (DRL) Module (7.3L DI Turbo Diesel) | On left side of lower radiator support. See Figure. |
| Daytime Running Lights (DRL) Module (7.5L) | On left side of lower radiator support. See Figure. |
| Electronic Shift Control Module | Behind right kick panel. |
| Ignition Control Module (ICM) (4.9L) | On left rear side of inner fender panel. See Figure. |
| Ignition Control Module (ICM) (5.0L & 5.8L) | On left rear side of inner fender panel. See Figure. |
| Ignition Control Module (ICM) (7.5L) | On left rear side of inner fender panel. See Figure. |
| Injection Pressure Regulator (IPR) (7.3L DI Turbo Diesel) | Top center of engine. See Figure. |
| Injector Driver Module (IDM) (7.3L DI Turbo Diesel) | In left side of engine compartment. See Figure. |
| Powertrain Control Module (PCM) (4.9L) | On left side of firewall, left of main harness connectors. See Figure. |

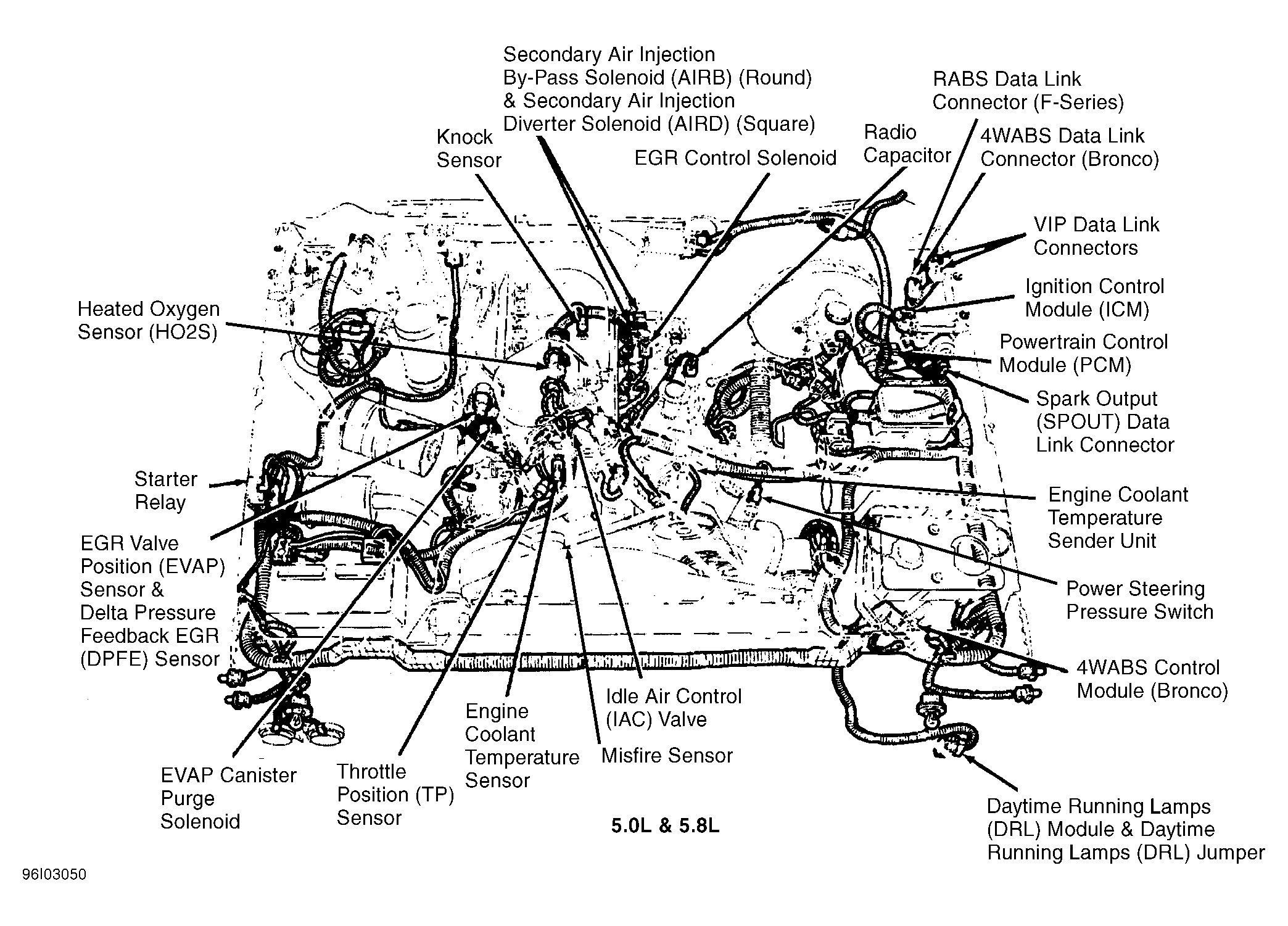

| Powertrain Control Module (PCM) (5.0L & 5.8L) | On left side of firewall, left of main harness connectors. See Figure. |

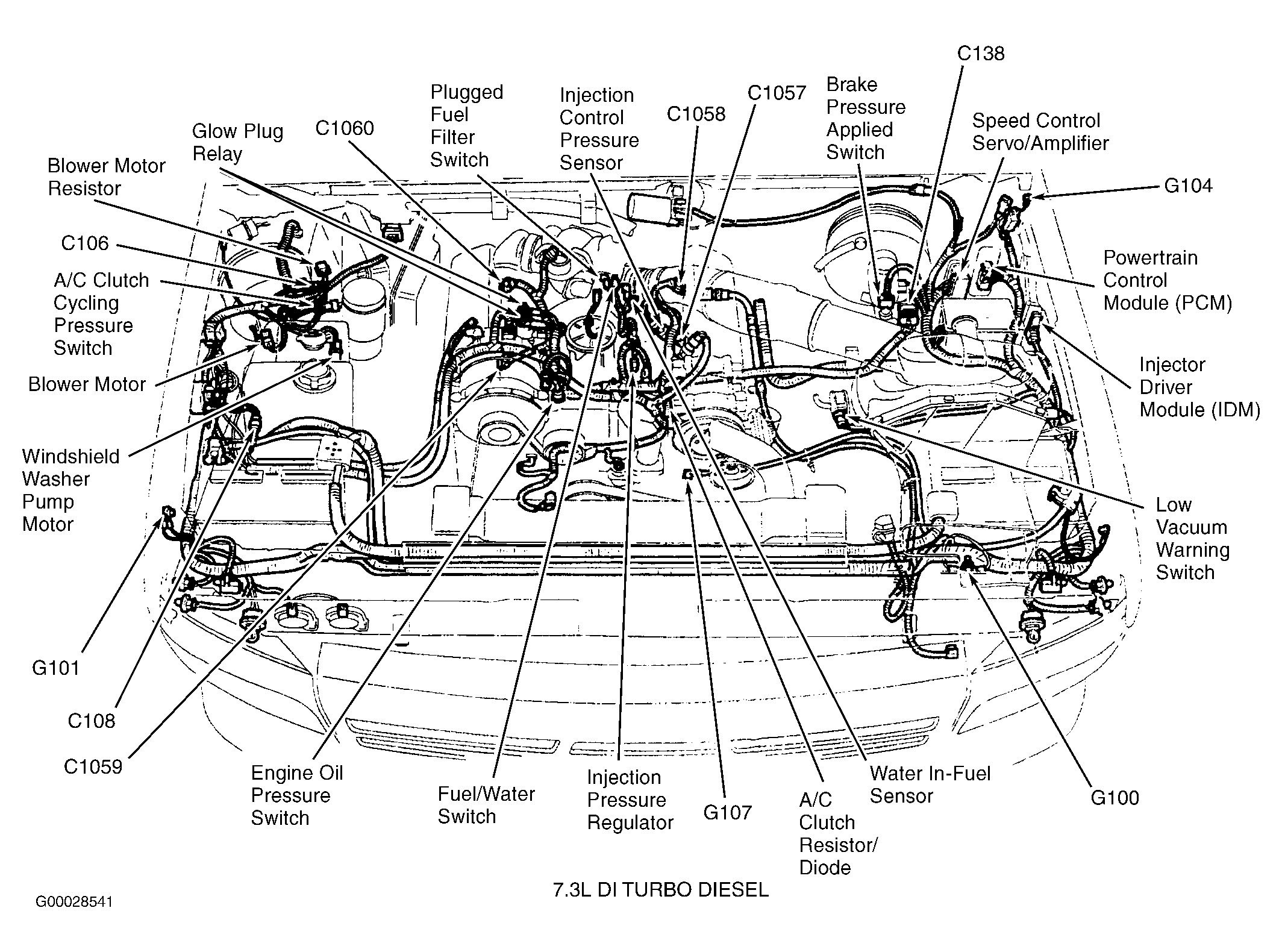

| Powertrain Control Module (PCM) (7.3L DI Turbo Diesel) | On left side of firewall, left of main harness connectors. See Figure. |

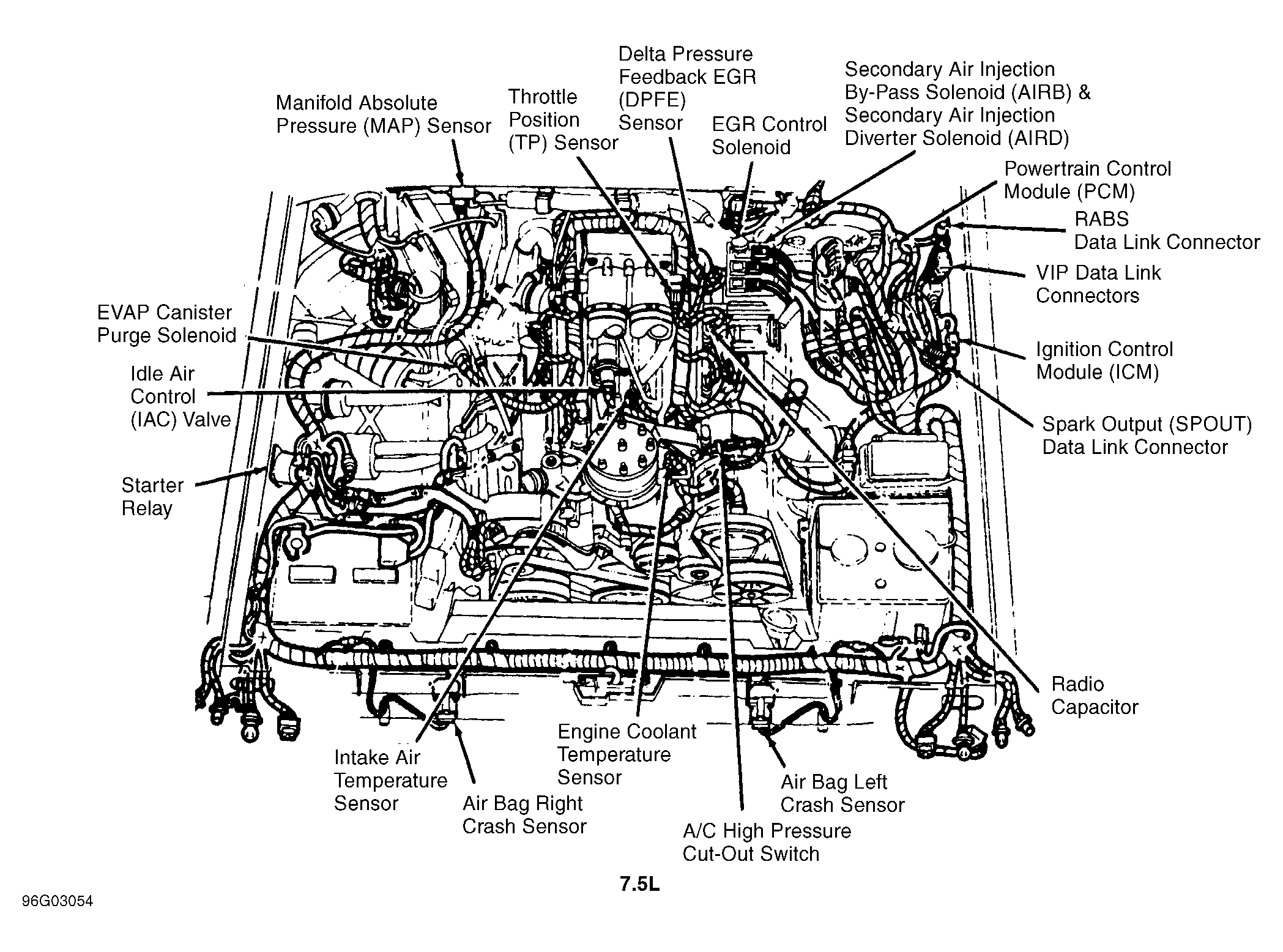

| Powertrain Control Module (PCM) (7.5L) | On left side of firewall, left of main harness connectors. See Figure. |
| Programmable Speedometer Odometer Module (PSOM) | Behind left side of dash. |
| Remote Keyless Entry Module | Behind left side of dash. See Figure. |
| Warning Chime Module | Behind lower center of dash. See Figure. |
| Wiper Control Module | Above right kick panel. See Figure. |
| 4WABS Control Module (Bronco) | In left front corner of engine compartment. See Figure. |
