Wiper Control Module: Service and Repair

Windshield Wiper Control Module


Removal and Installation







1. Disconnect battery ground cable.

2. Remove the steering column shroud cover retaining screws.

3. Separate the two halves and disconnect the multiple connector at the rear of the multi-function switch.

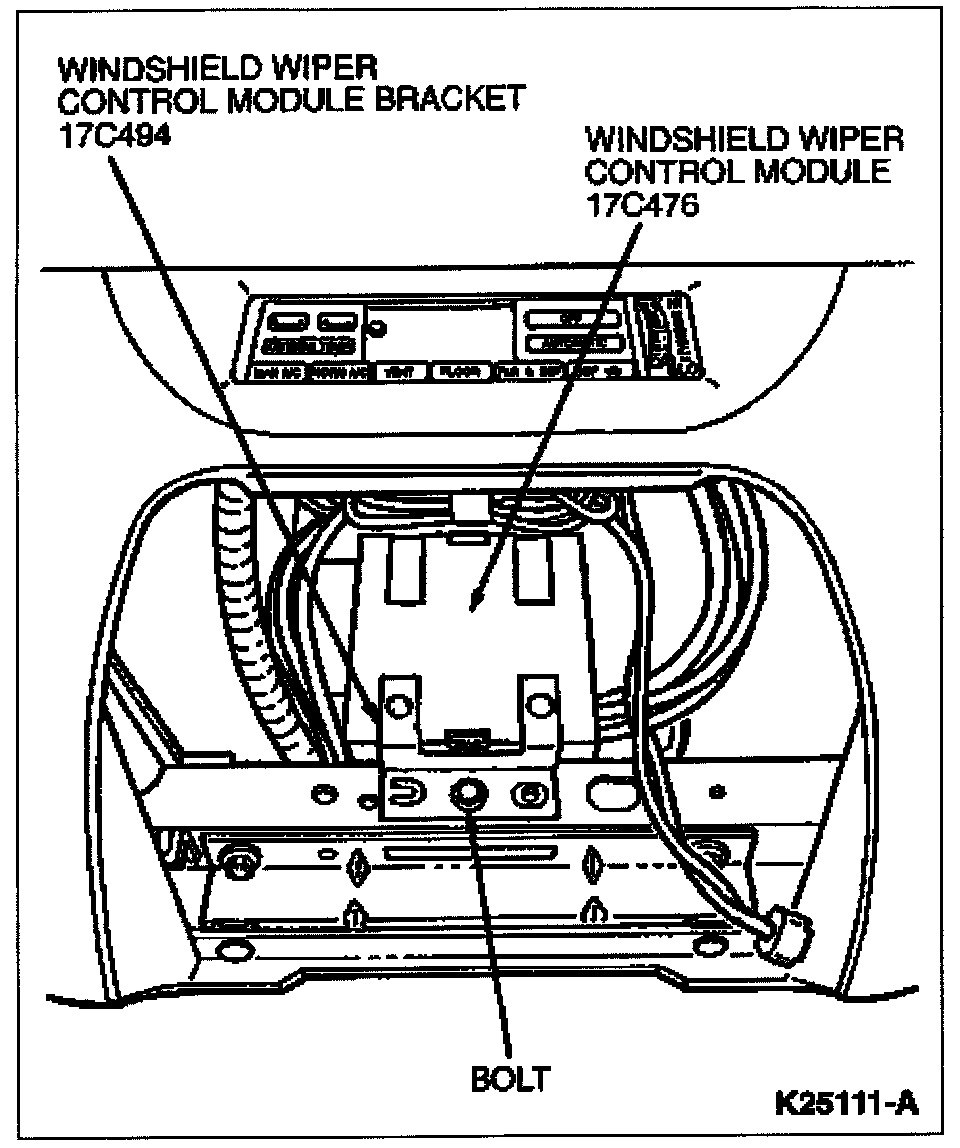

4. Disconnect the multiple connector at main wiring loom. Remove the windshield wiper control module from the bracket.

5. To install, reverse Removal procedure.
