PCM Schematic, Connector Views and Pin Identifications

CAUTION: Pin locations are given for reference only. Probing the 60-pin connector will result in permanent damage to the pin connectors. Always probe as directed using the breakout box.

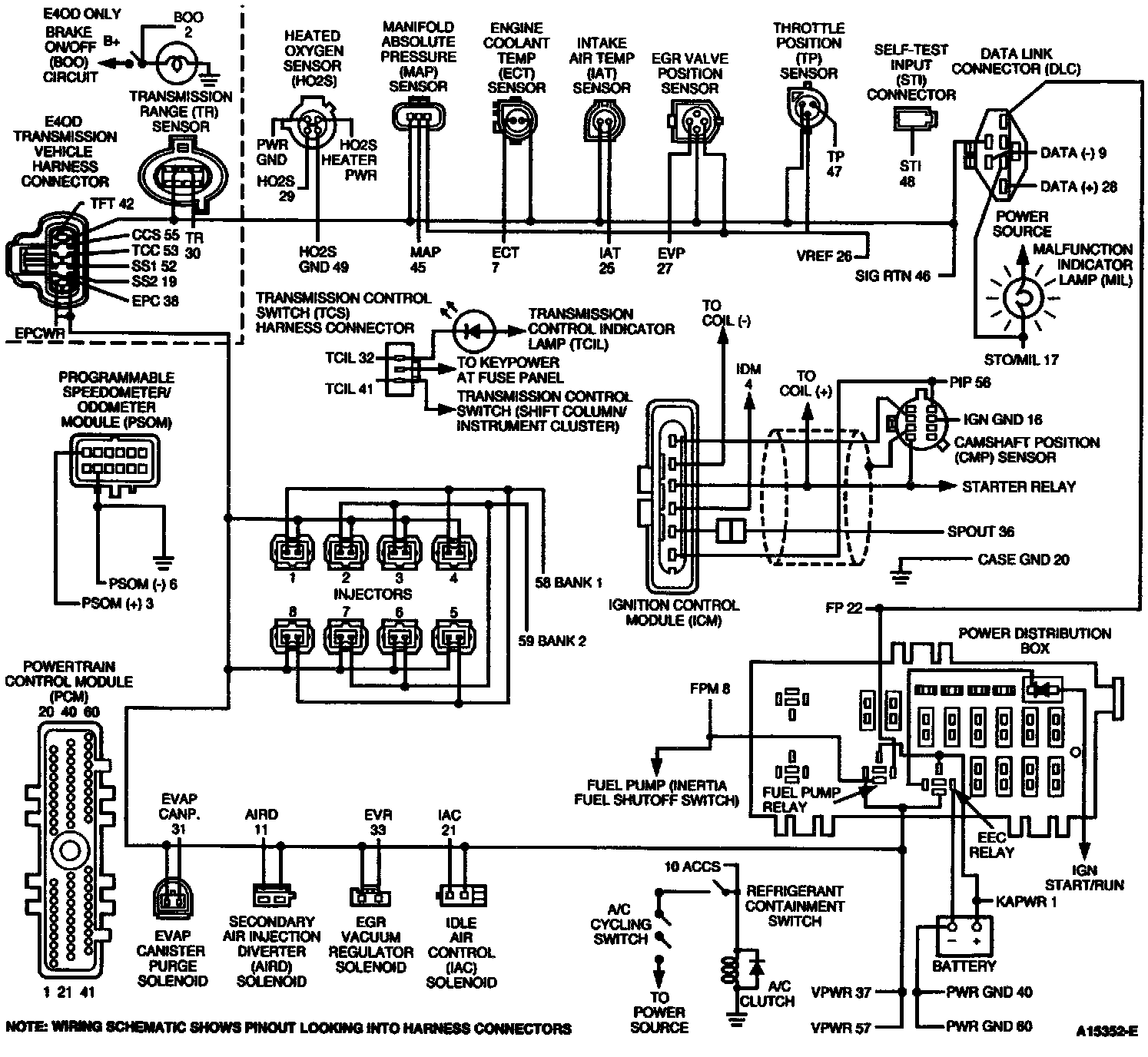

Schematic:

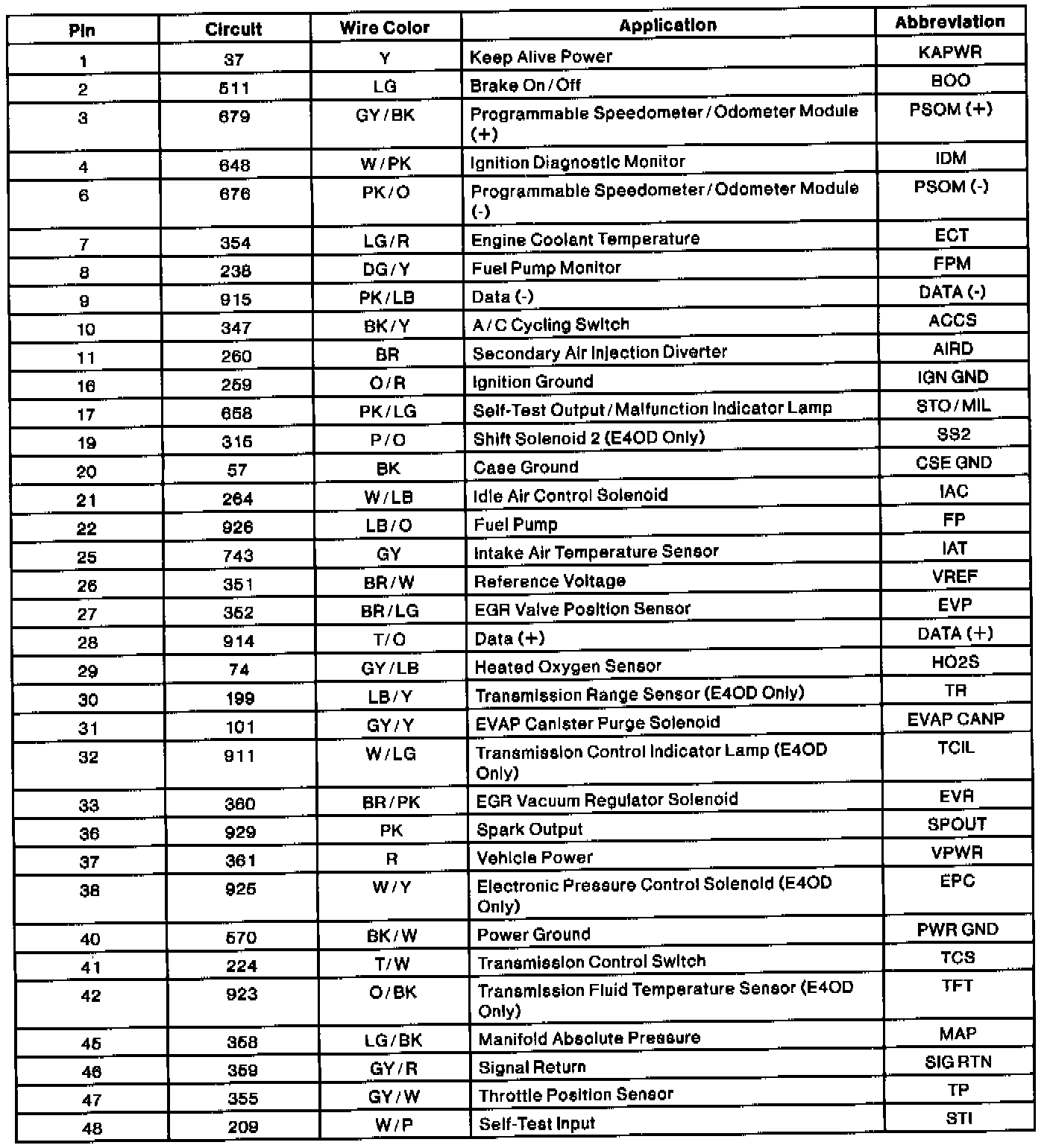

Powertrain Control Module (PCM) Connector Pin Usage:

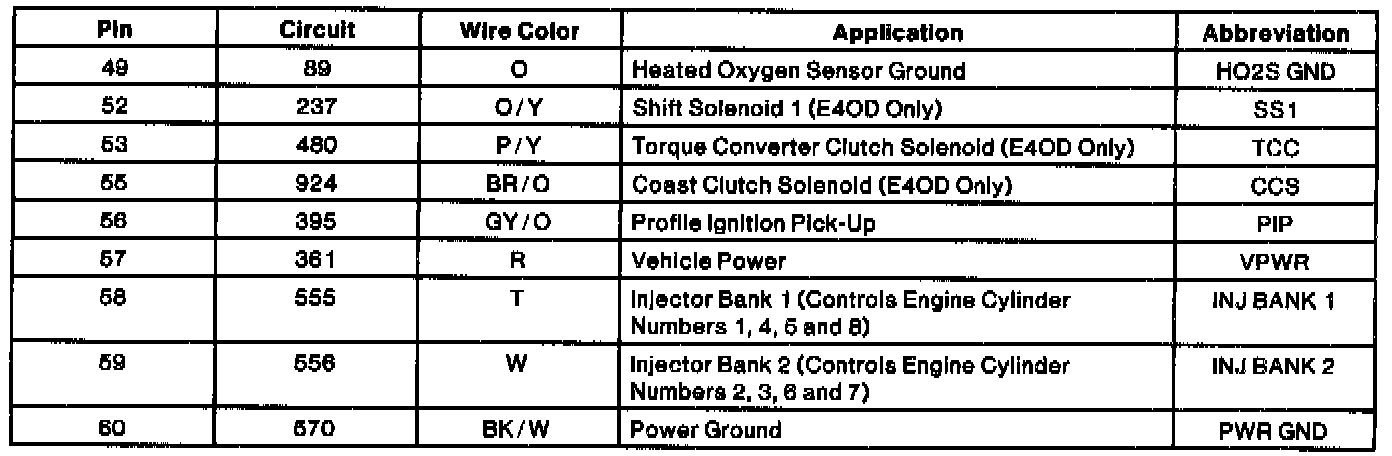

Powertrain Control Module Pin Identification:






Powertrain Control Module Pin Identification:
