New Generation STAR (NGS) Tester





1. Turn the ignition switch OFF.

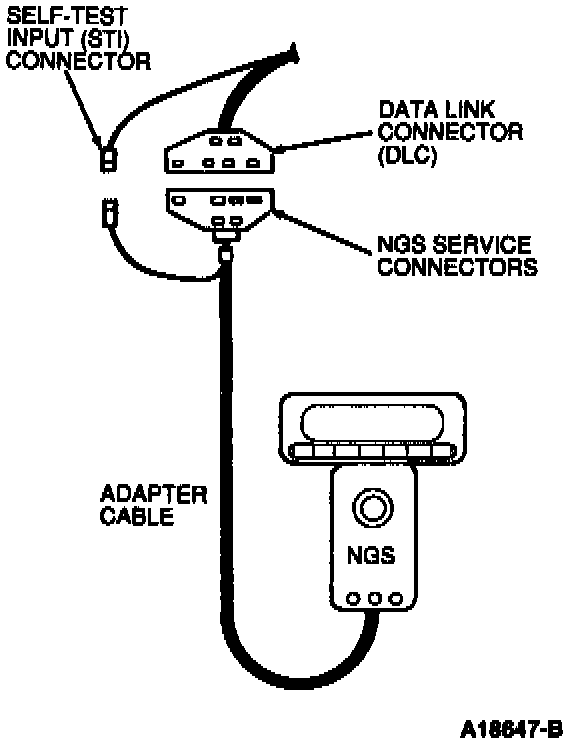

2. Connect the appropriate EEC adapter cable to the scan tool.
3. Connect the adapter leads to the Data Link Connector (DLC) and Self Test Input (STI) connector.
4. Connect power cords to power source.
5. Connect the timing light (if applicable).
