Transmission Position Sensor/Switch: Locations

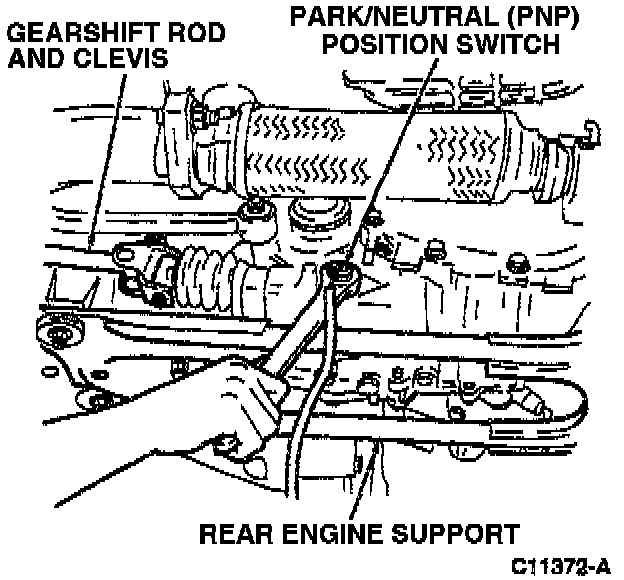

Park/Neutral Position Switch:





The Park/Neutral Position (PNP) switch is mounted on the transaxle, near the shift linkage.
