Relay Module
NOTE:

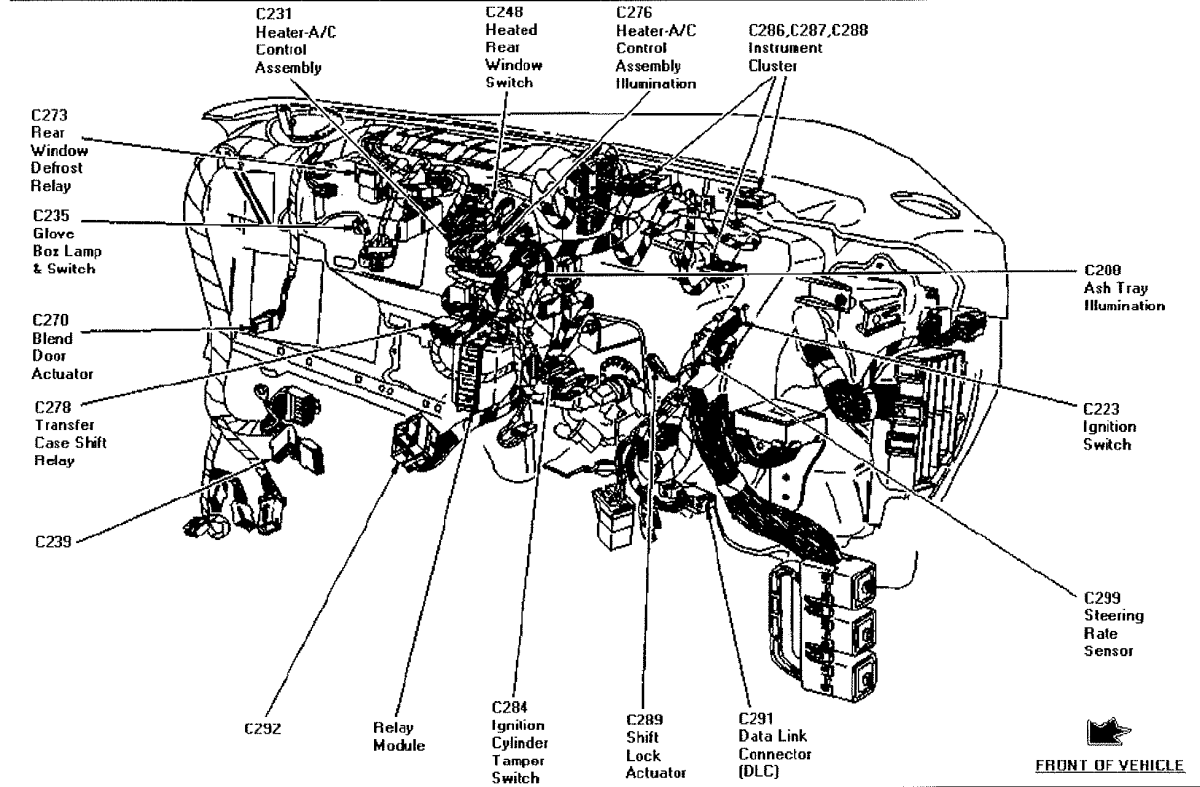

Relay module is located behind center of instrument panel. See
Figure
.

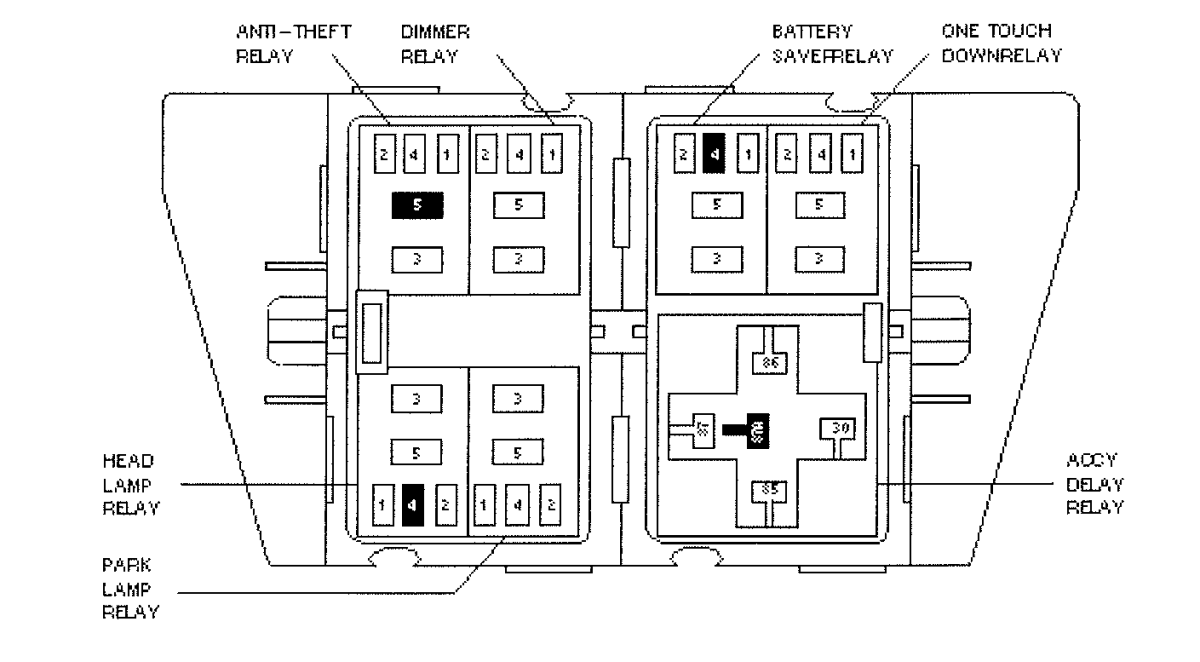

Fig 1: Identifying Relay Module Components
