Memory Seat Switch Test

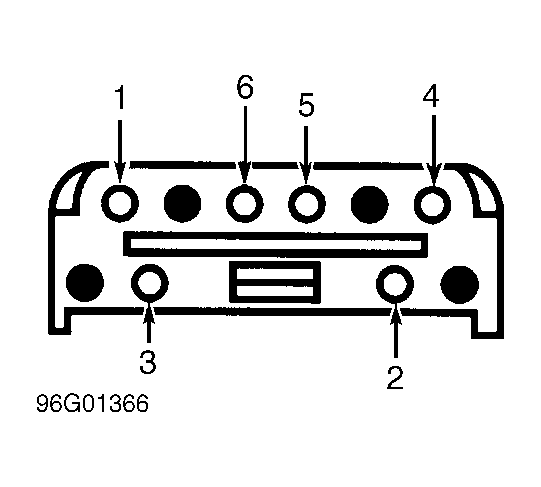

Remove memory seat switch and unplug connector. See MEMORY SEAT SWITCH under REMOVAL & INSTALLATION. Using ohmmeter, check for continuity between indicated switch connector terminals when switch is activated as specified. See MEMORY SEAT SWITCH CONTINUITY table. See Fig 1 . To test LED, ground terminal No. 2 and apply battery power to terminal No. 3. Replace switch if it does not test as specified.
MEMORY SEAT SWITCH CONTINUITY
| Button Pressed | Continuity Between Terminals No. |
|---|---|
| No. 1 | 4 & 5 |
| No. 2 | 4 & 6 |
| SET | 4 & 1 |
