Disconnect (Spring Lock Coupler)
WARNING: This page is about a different car, the 1995 Mazda B4000, 1995 Mazda B3000, and 1995 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

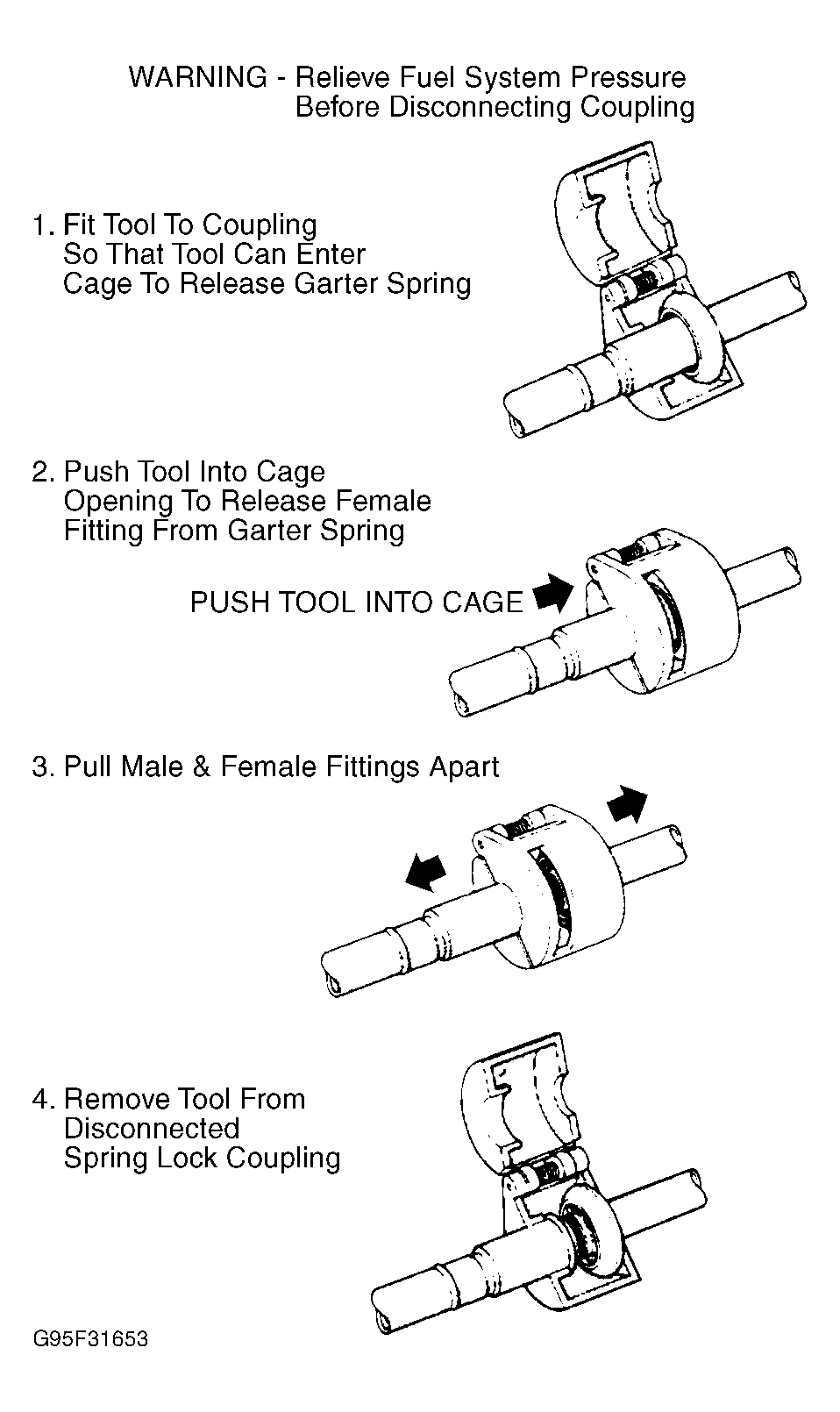

- Release fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE . Remove locking (safety) clip (if equipped). Place Spring Lock Coupler Releaser (49-UN01-051 for 3/8" line; 49-UN01-052 for 1/2" line) over fuel line coupler. See Figure .
- Push spring lock coupler releaser to release female fitting from garter spring. Pull spring lock coupler apart. Remove releaser.
