Code 12: Throttle Position Sensor

WARNING: This page is about a different car, the 1995 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

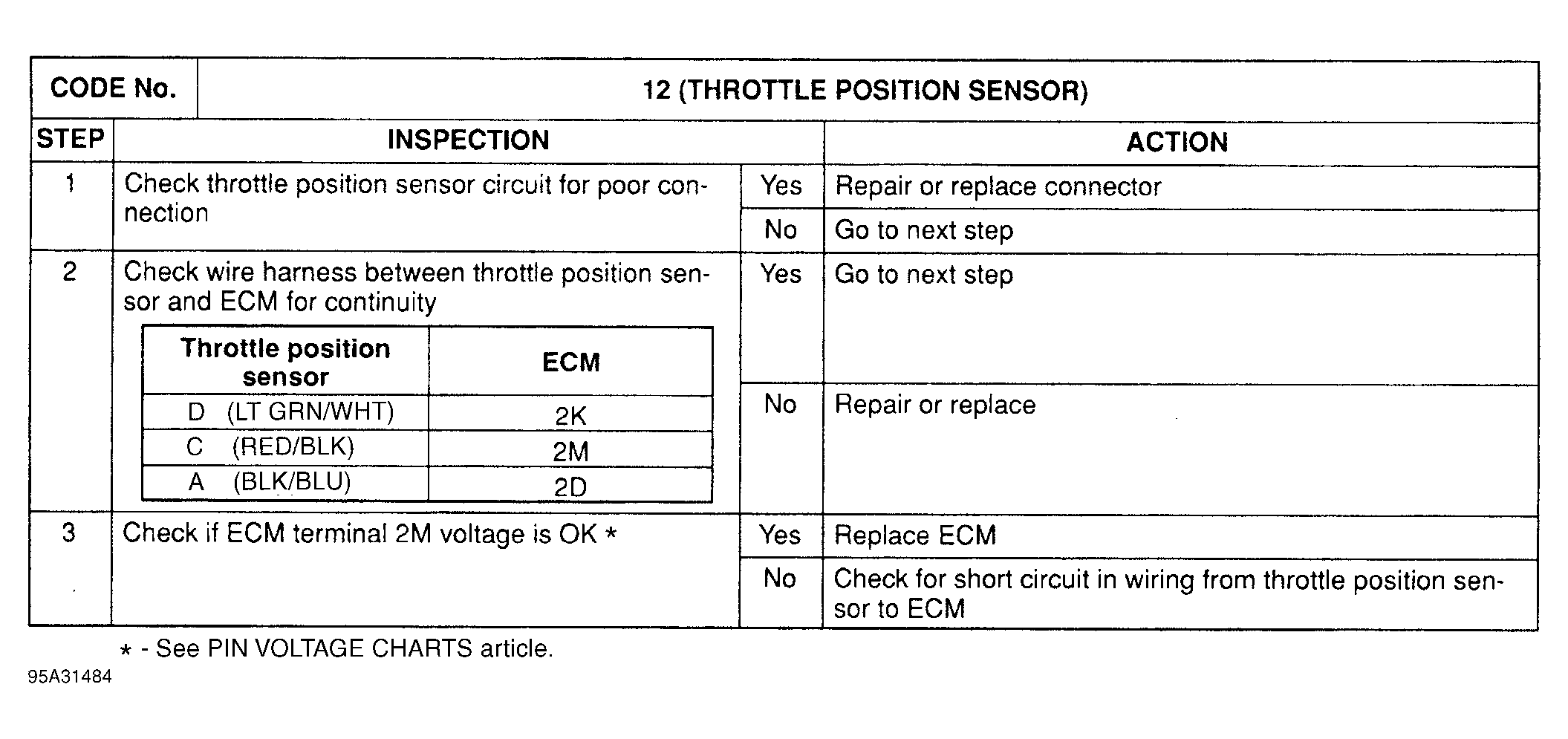

Fig 1: Trouble Code No. 12 Throttle Position Sensor
G95A31484
