Code 16: EGR Valve Position Sensor

WARNING: This page is about a different car, the 1995 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

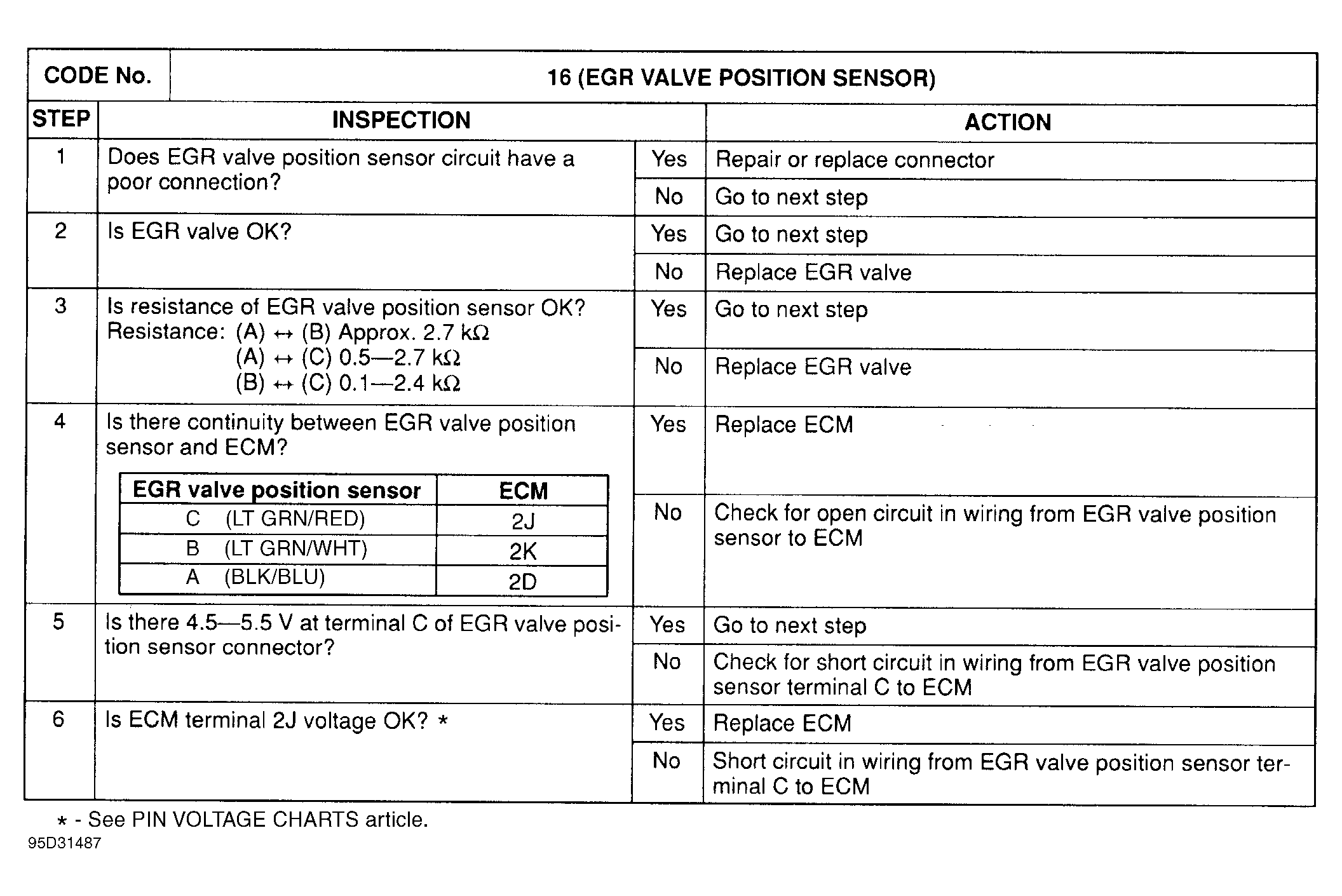

Fig 1: Trouble Code No. 16 EGR Valve Position Sensor
G95D31487

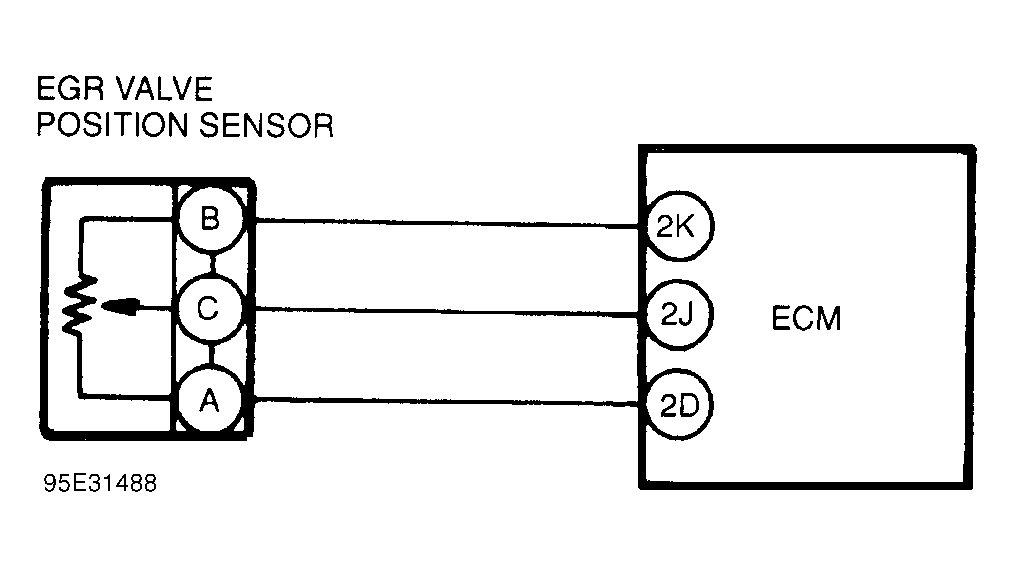

Fig 2: Trouble Code No. 16 EGR Valve Position Sensor Circuit Diagram
G95E31488
