Trouble Code Identification Chart: Notes
WARNING:
This page is about a different car, the 1995 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

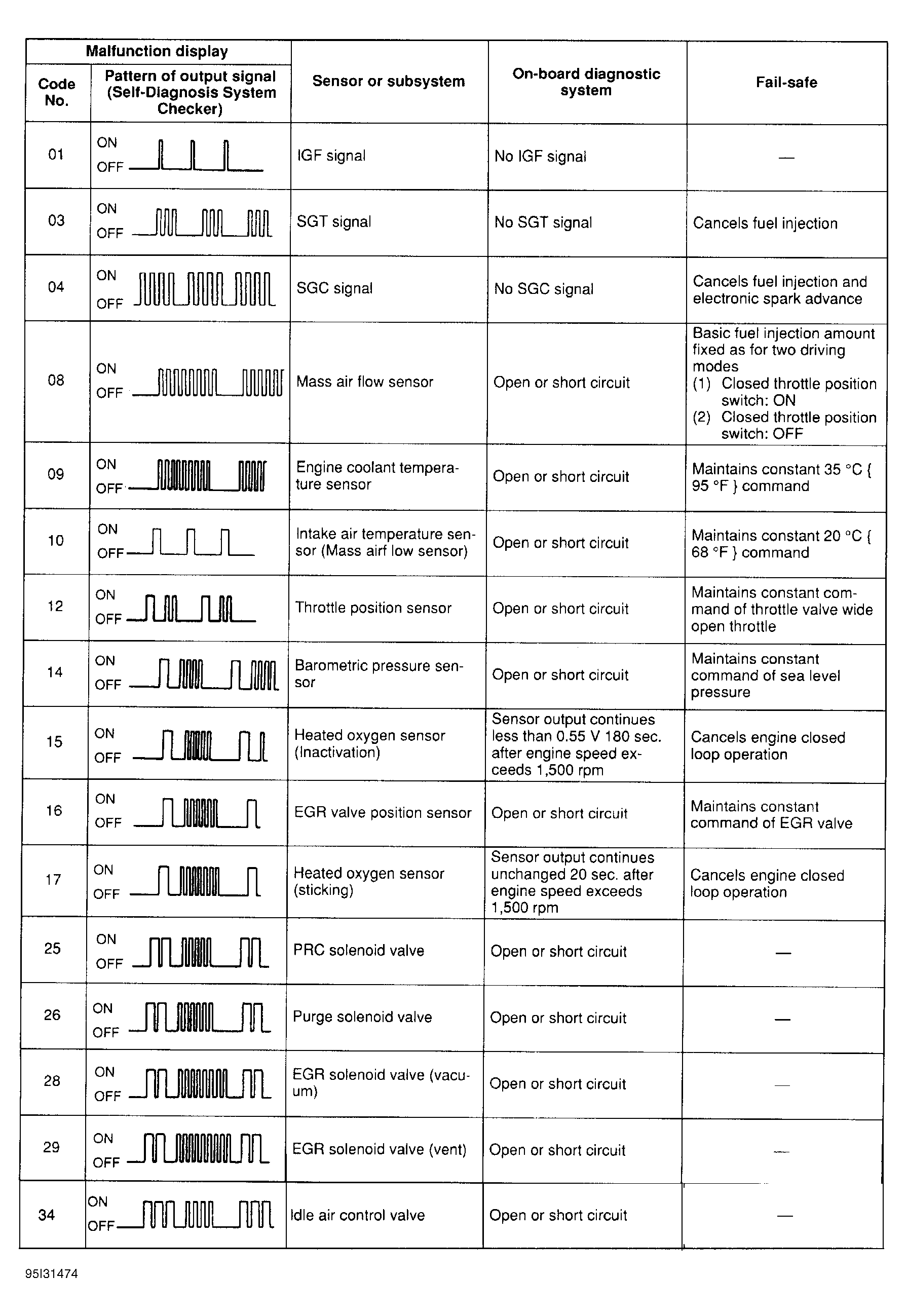

Fig 1: Trouble Code Identification Chart
Courtesy of MAZDA MOTOR CO.
