Trouble Code IDEFINITION Charts: Notes

WARNING: This page is about a different car, the 1995 Mazda MX-3. However, it is still accessible from the selected car via links, so may be relevant.

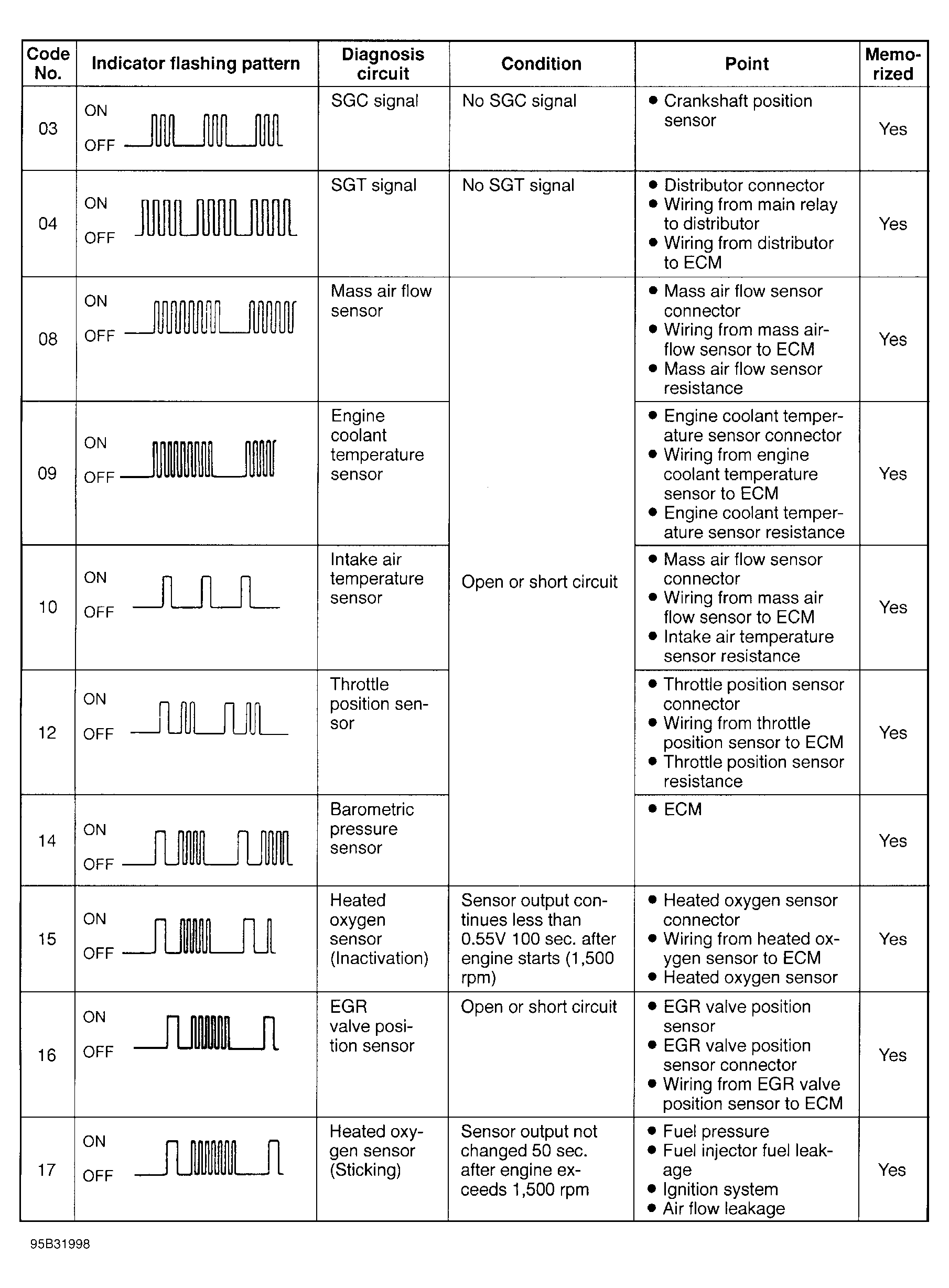

Fig 1: Diagnostic Trouble Code Definition Chart (1 Of 2)
G95B31998Courtesy of MAZDA MOTORS CORP.

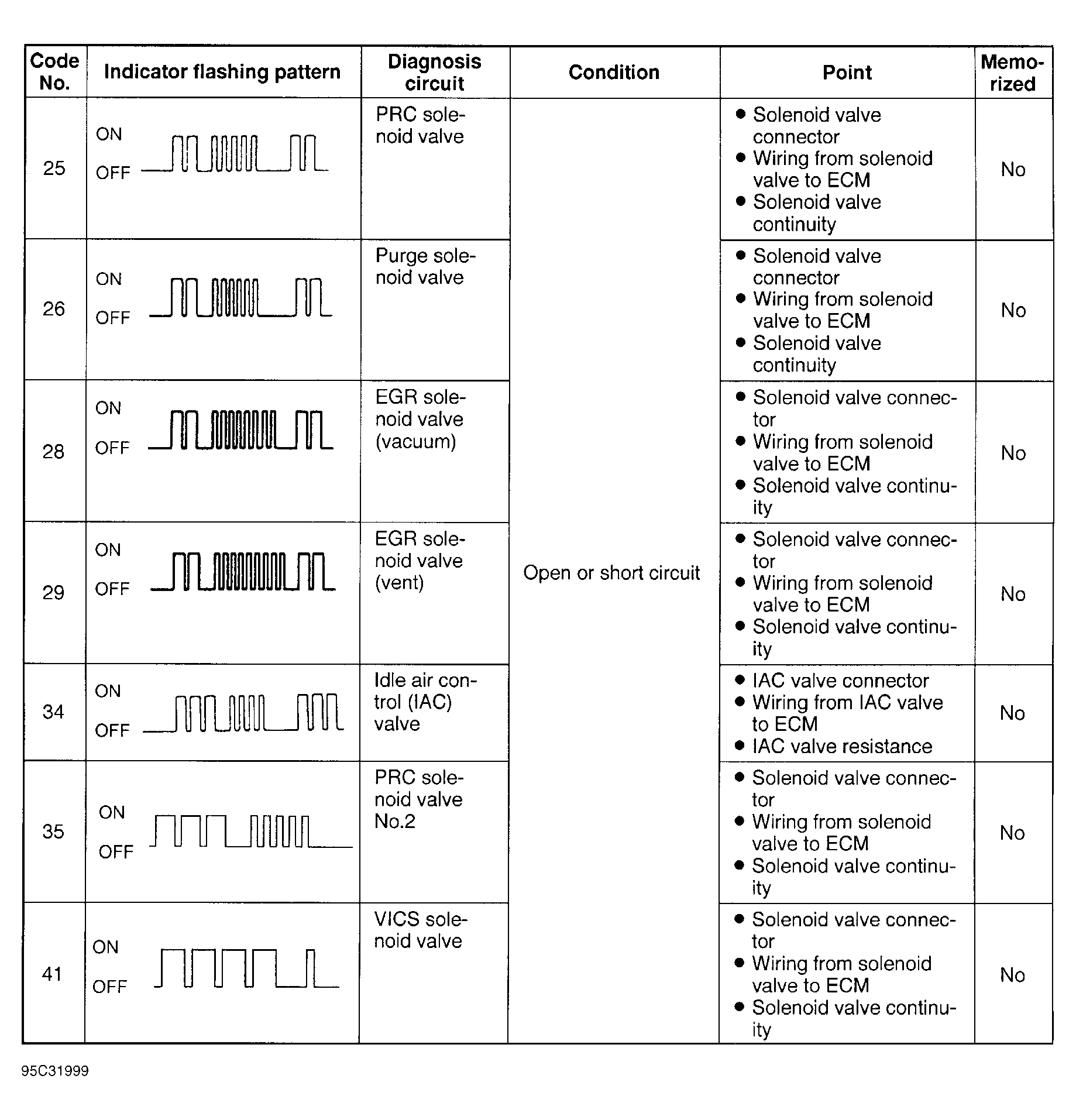

Fig 2: Diagnostic Trouble Code Definition Chart (2 Of 2)
G95C31999Courtesy of MAZDA MOTORS CORP.
