Code 12: Throttle Position Sensor - Full Range
WARNING:
This page is about a different car, the 1995 Mazda RX-7. However, it is still accessible from the selected car via links, so may be relevant.

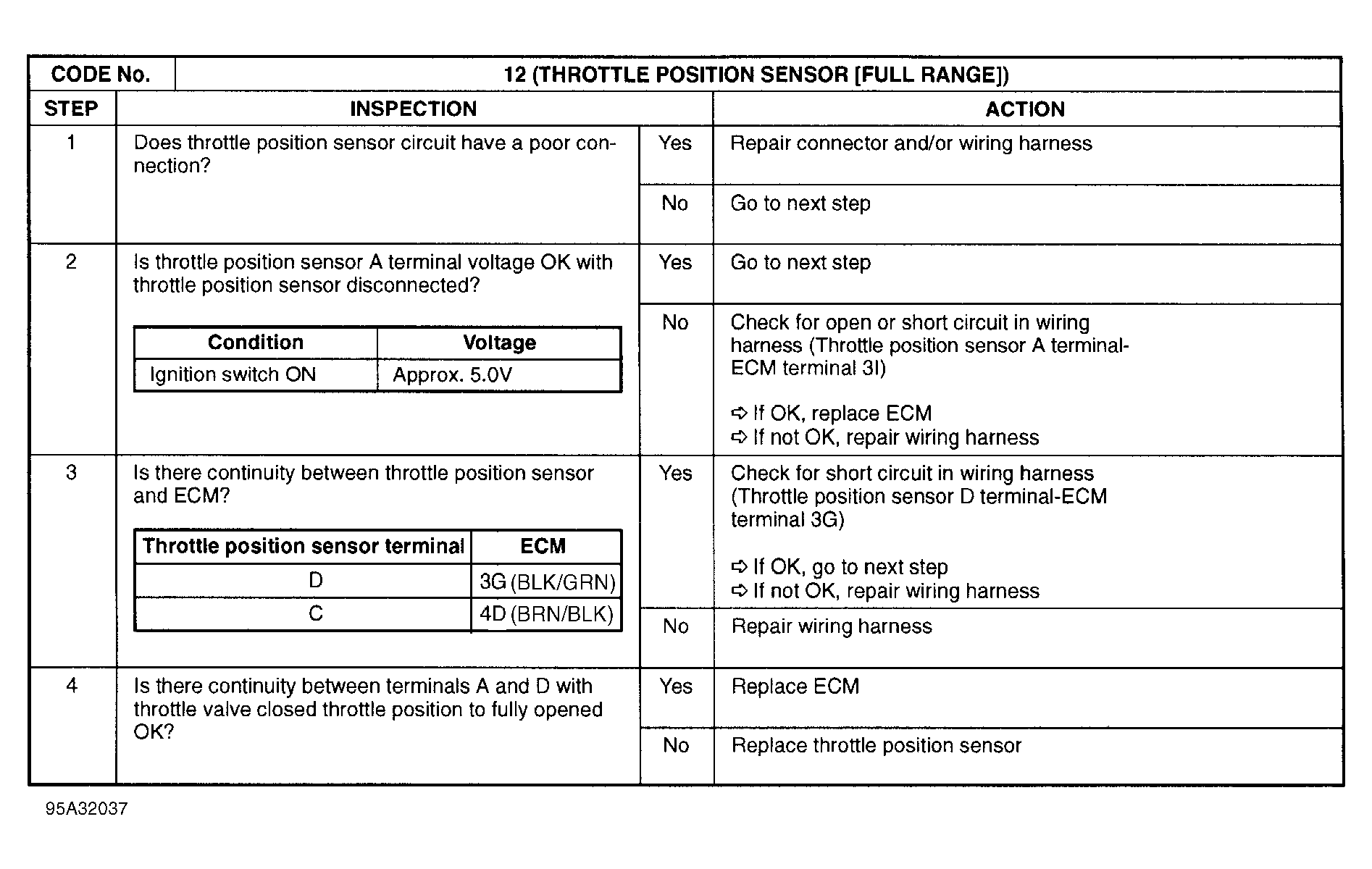

Fig 1: Trouble Code No. 12 Throttle Position Sensor - Full Range

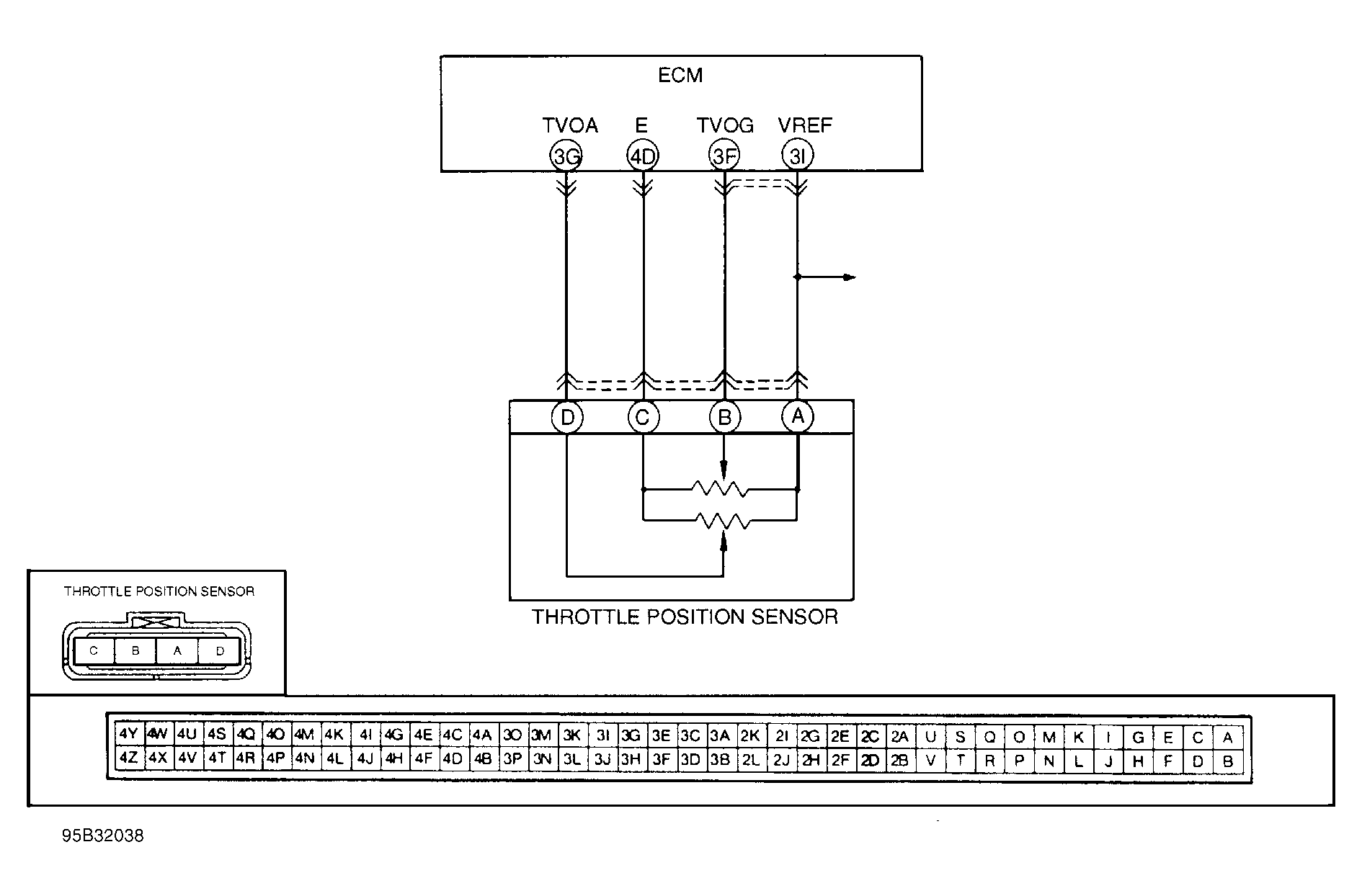

Fig 2: Trouble Code No. 12 Throttle Position Sensor Circuit Diagram
