Code 17: Oxygen Sensor - Inversion

WARNING: This page is about a different car, the 1995 Mazda RX-7. However, it is still accessible from the selected car via links, so may be relevant.

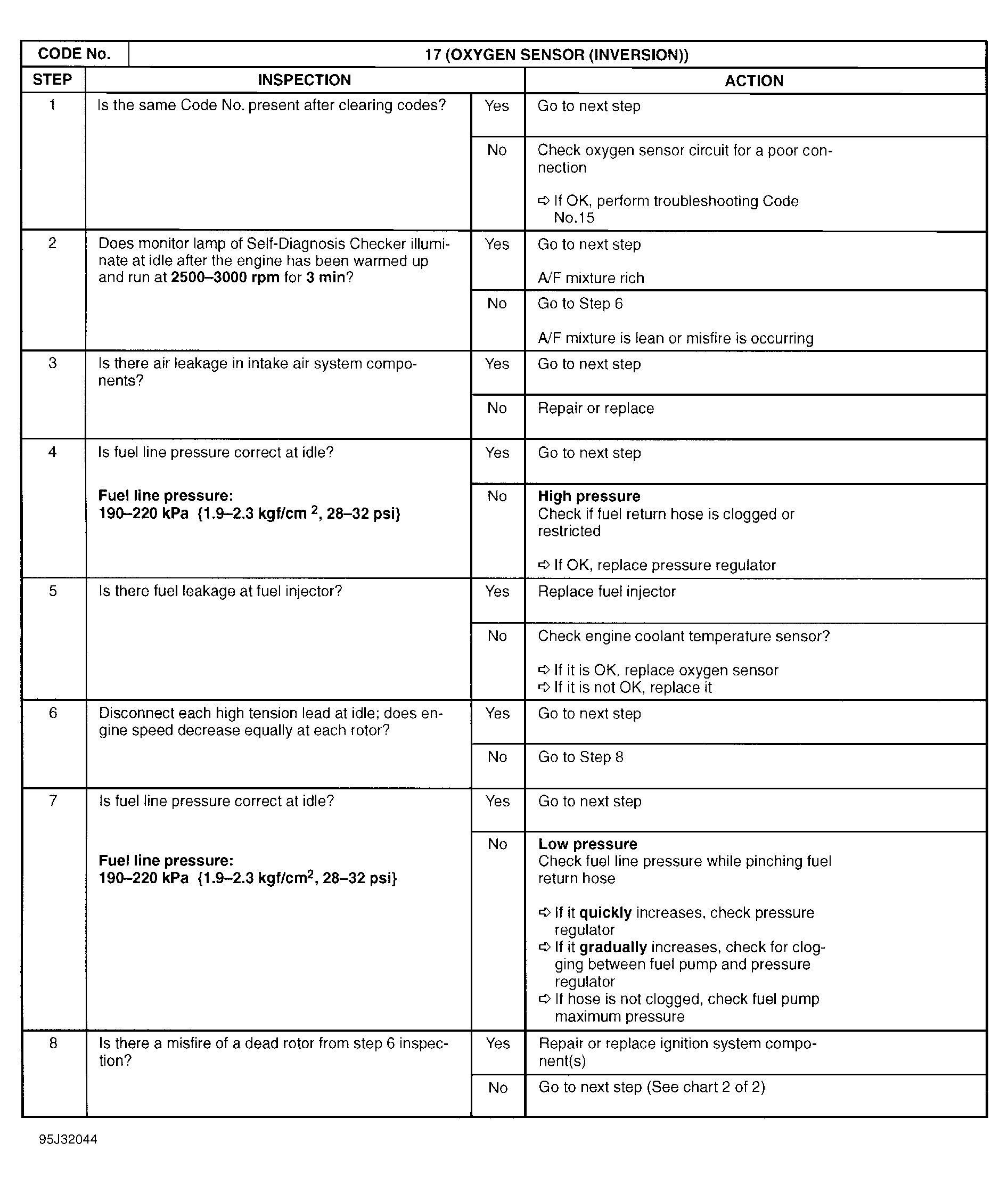

Fig 1: Trouble Code No. 17 Oxygen Sensor - Inversion (1 O 2)
G95J32044

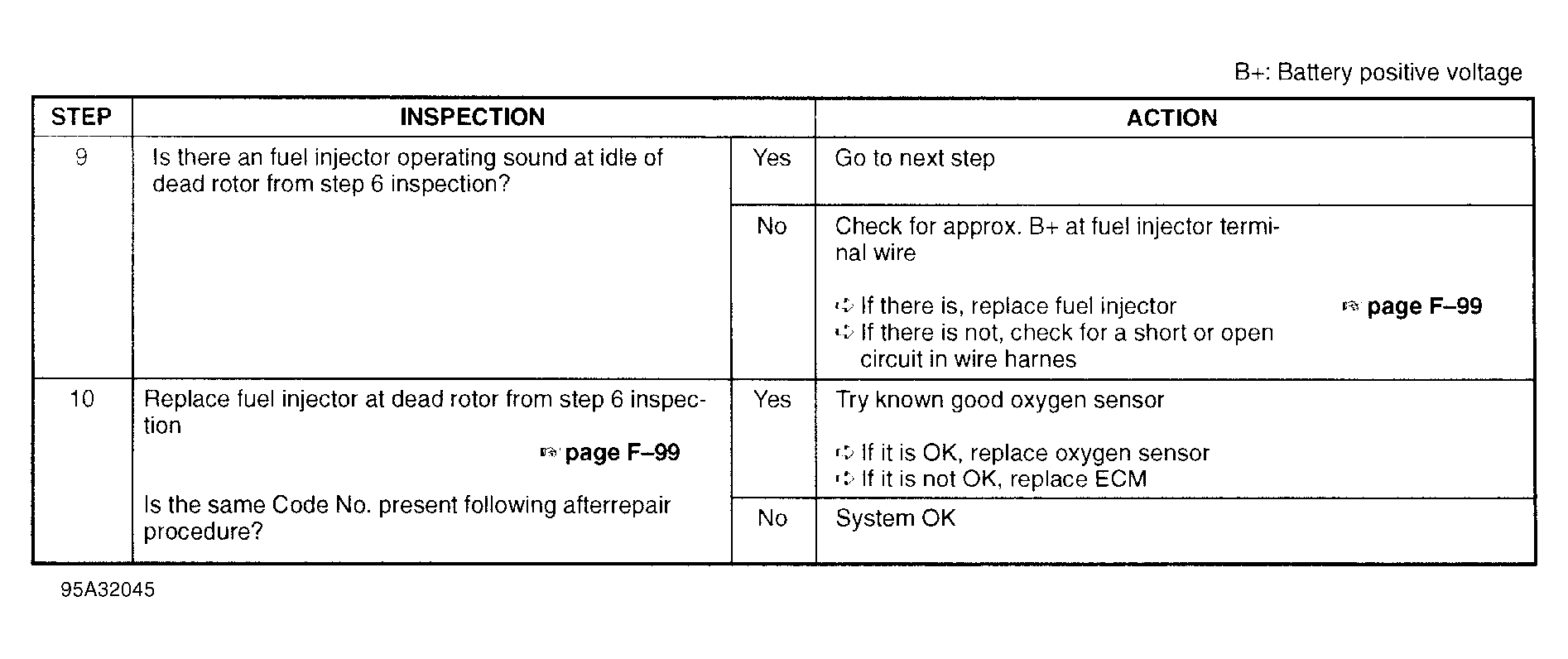

Fig 2: Trouble Code No. 17 Oxygen Sensor - Inversion (2 Of 2)
G95A32045

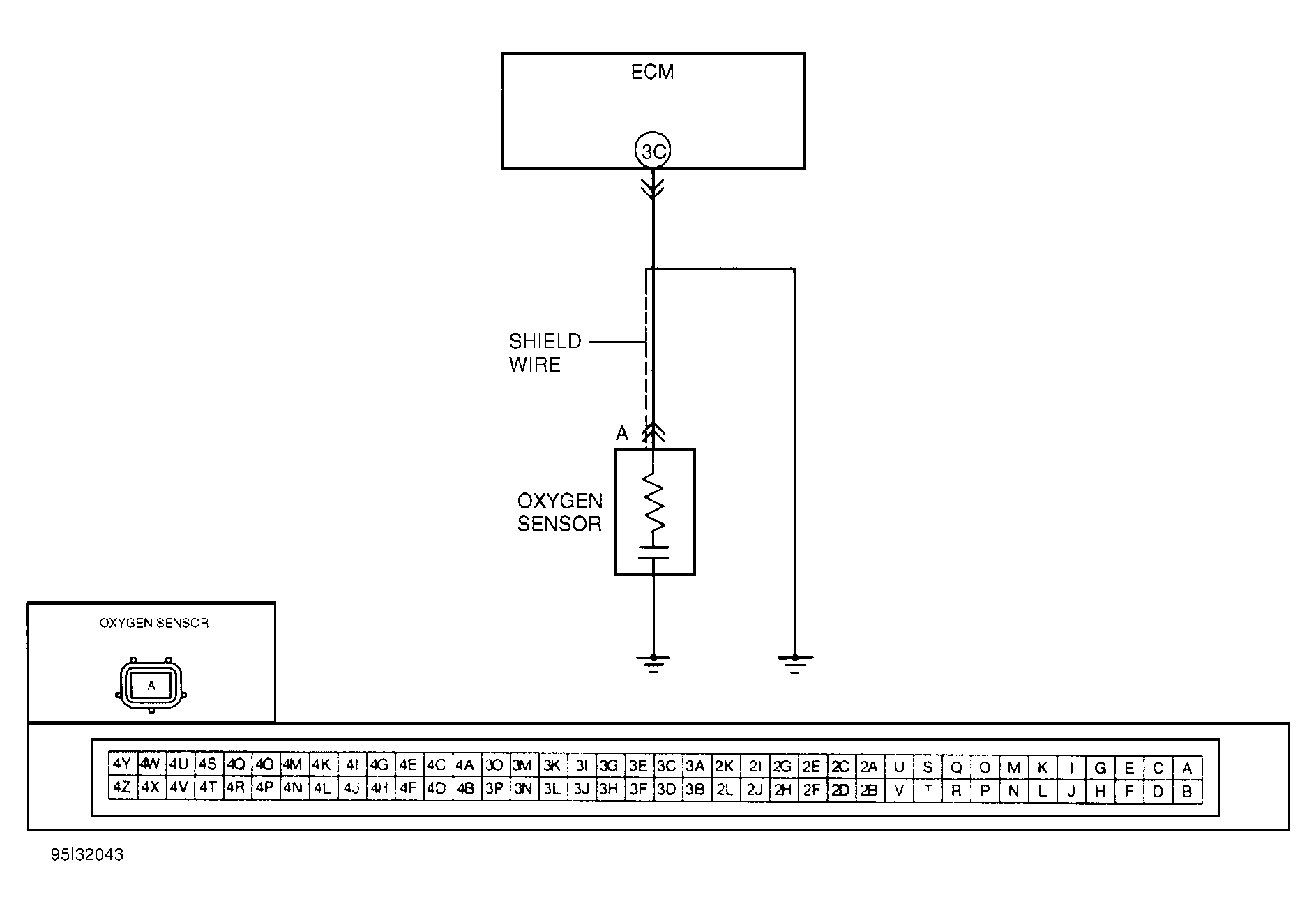

Fig 3: Trouble Code No. 17 Oxygen Sensor Circuit Diagram
G95I32043
