Trouble Code Identification Charts: Notes

WARNING: This page is about a different car, the 1995 Mazda RX-7. However, it is still accessible from the selected car via links, so may be relevant.

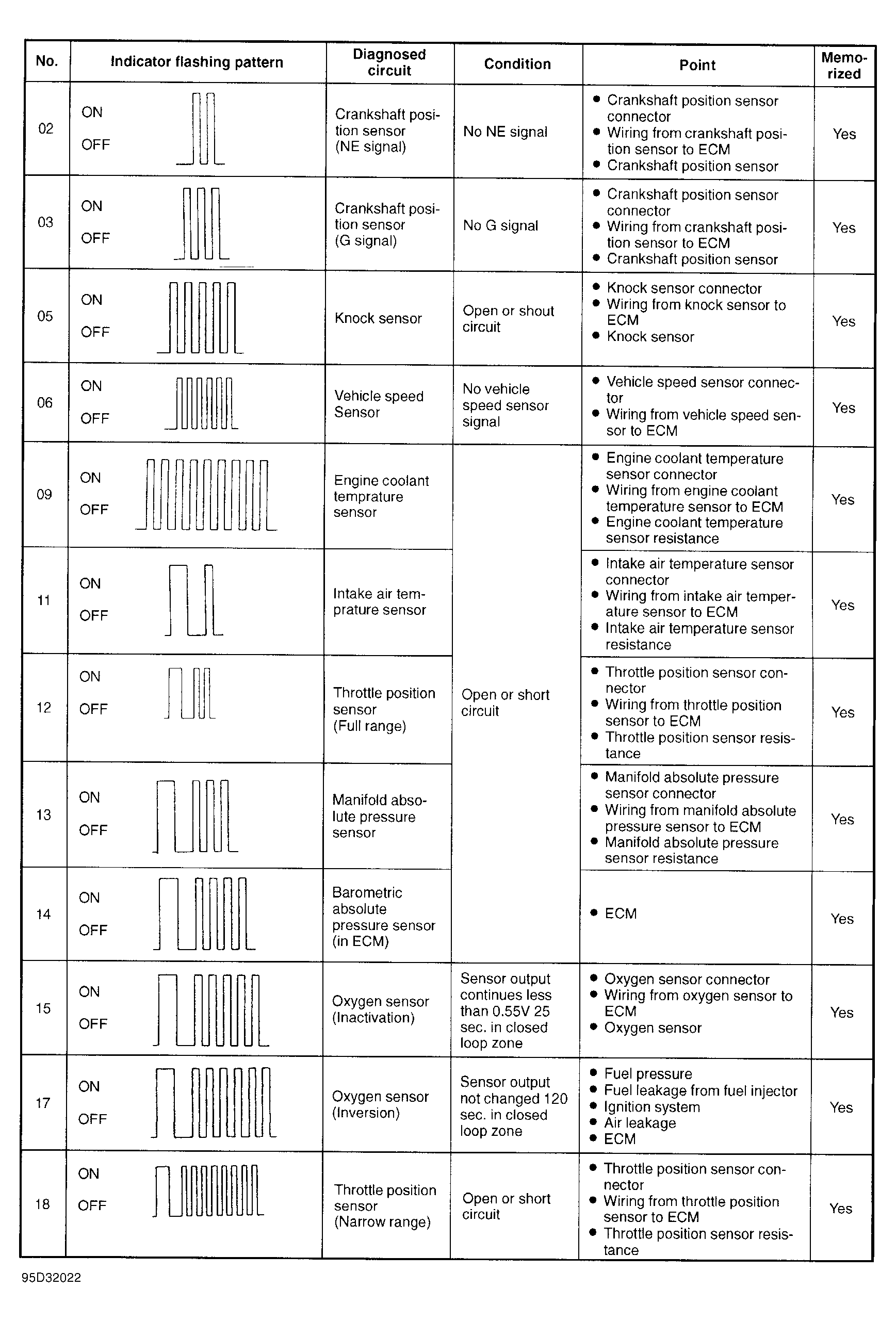

Fig 1: Diagnostic Trouble Code Definition Chart (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

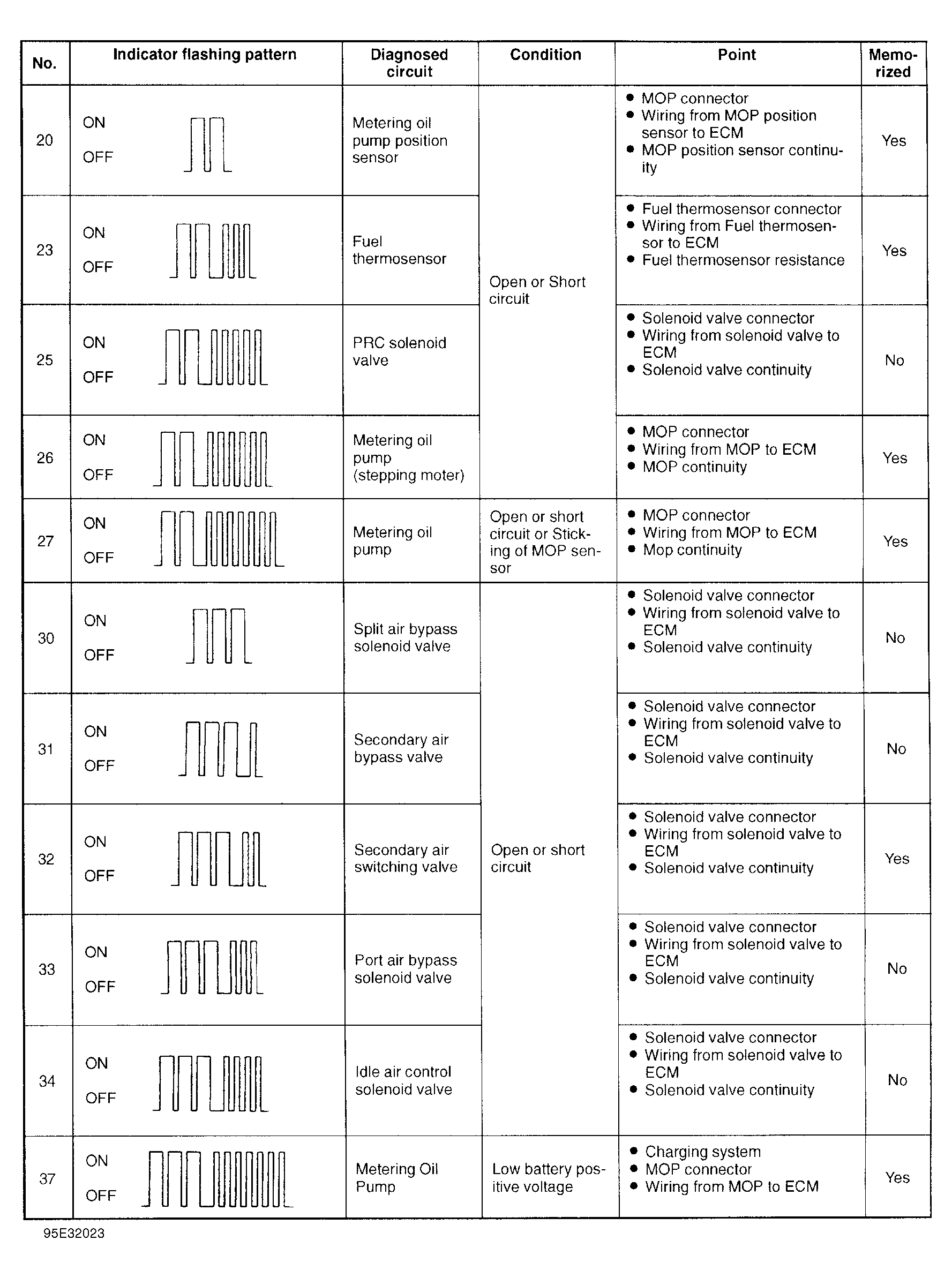

Fig 2: Diagnostic Trouble Code Definition Chart (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

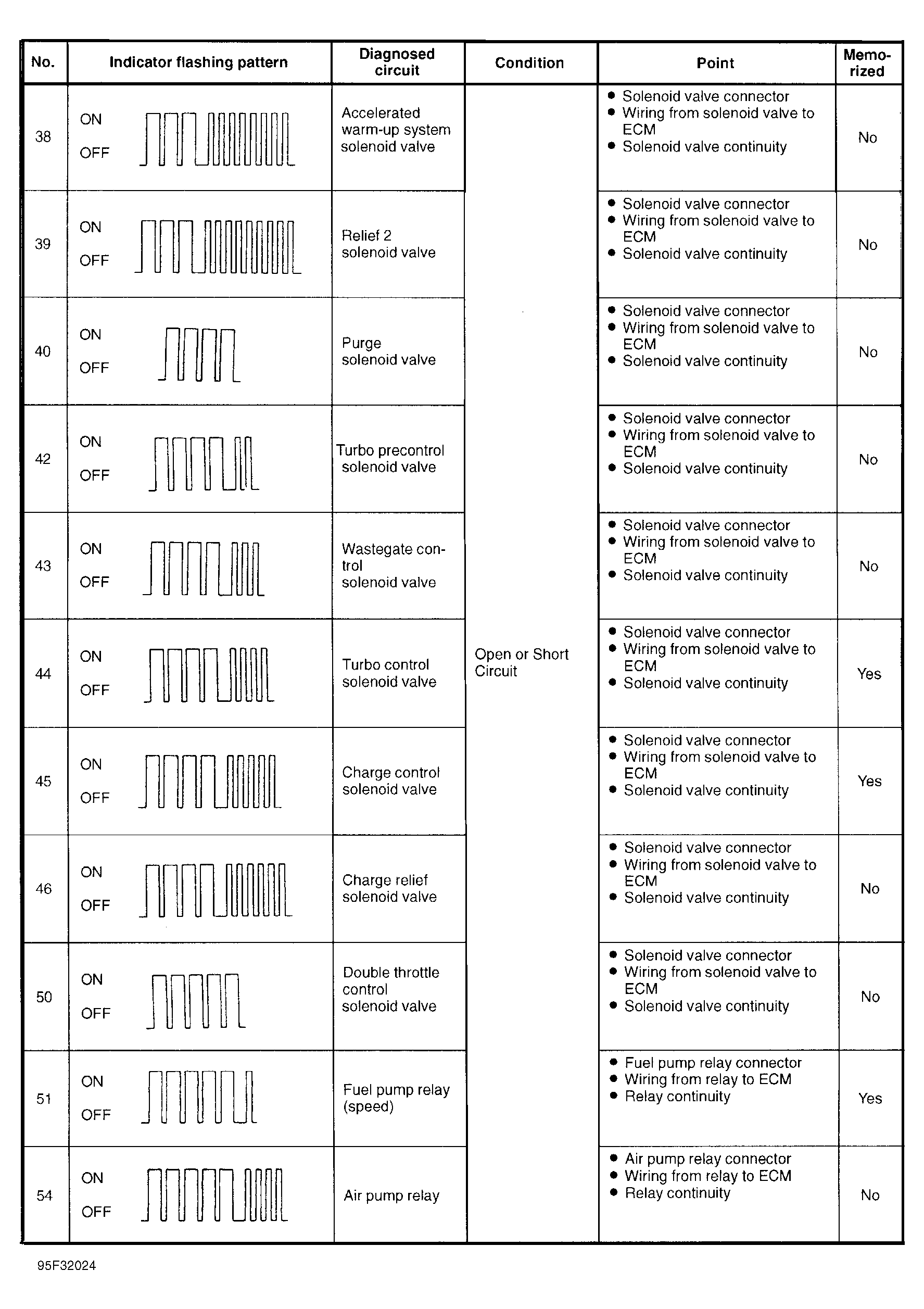

Fig 3: Diagnostic Trouble Code Definition Chart (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

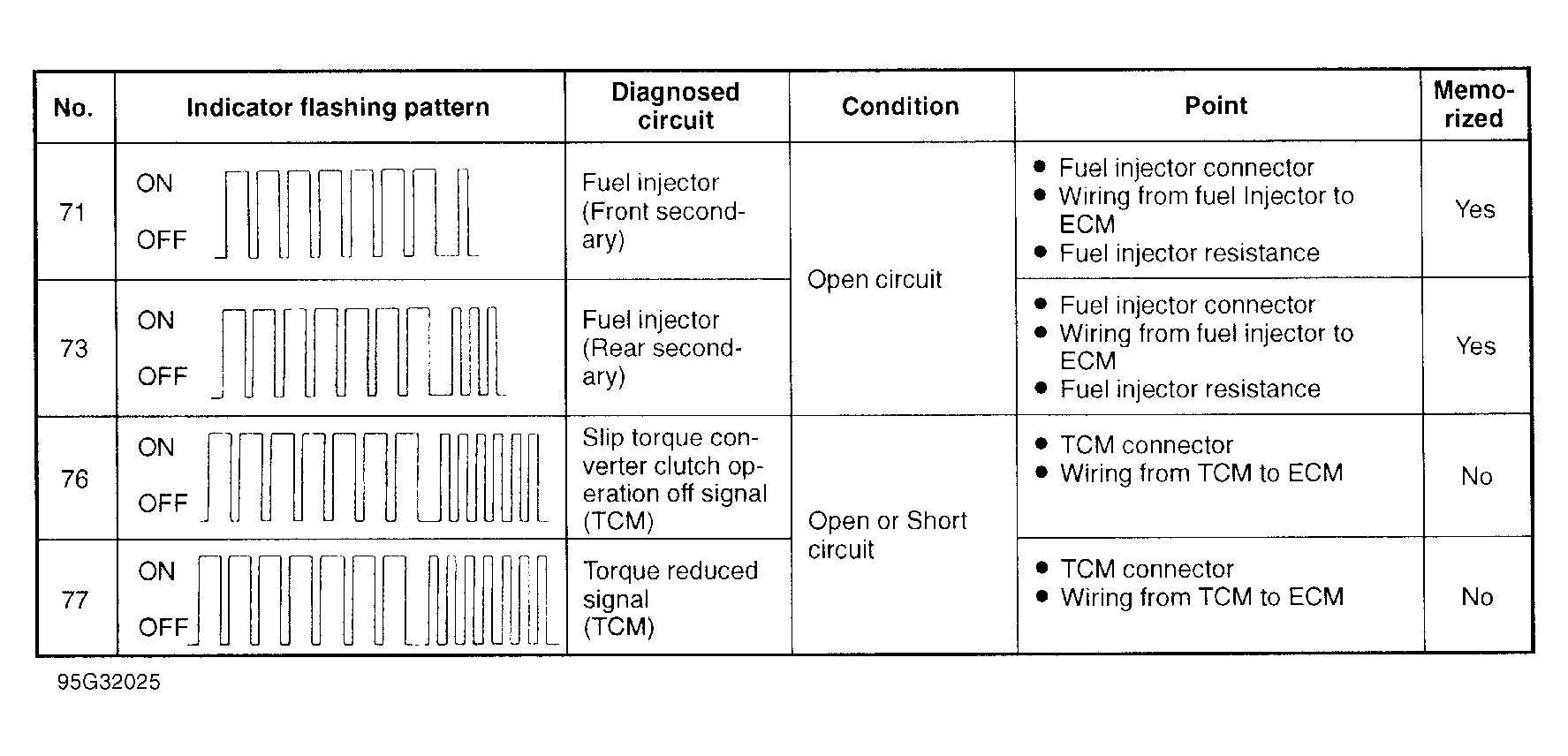

Fig 4: Diagnostic Trouble Code Definition Chart (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
