Code P1443: Purge Flow System Circuit Malfunction

WARNING: This page is about a different car, the 1995 Mazda B4000, 1995 Mazda B3000, and 1995 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

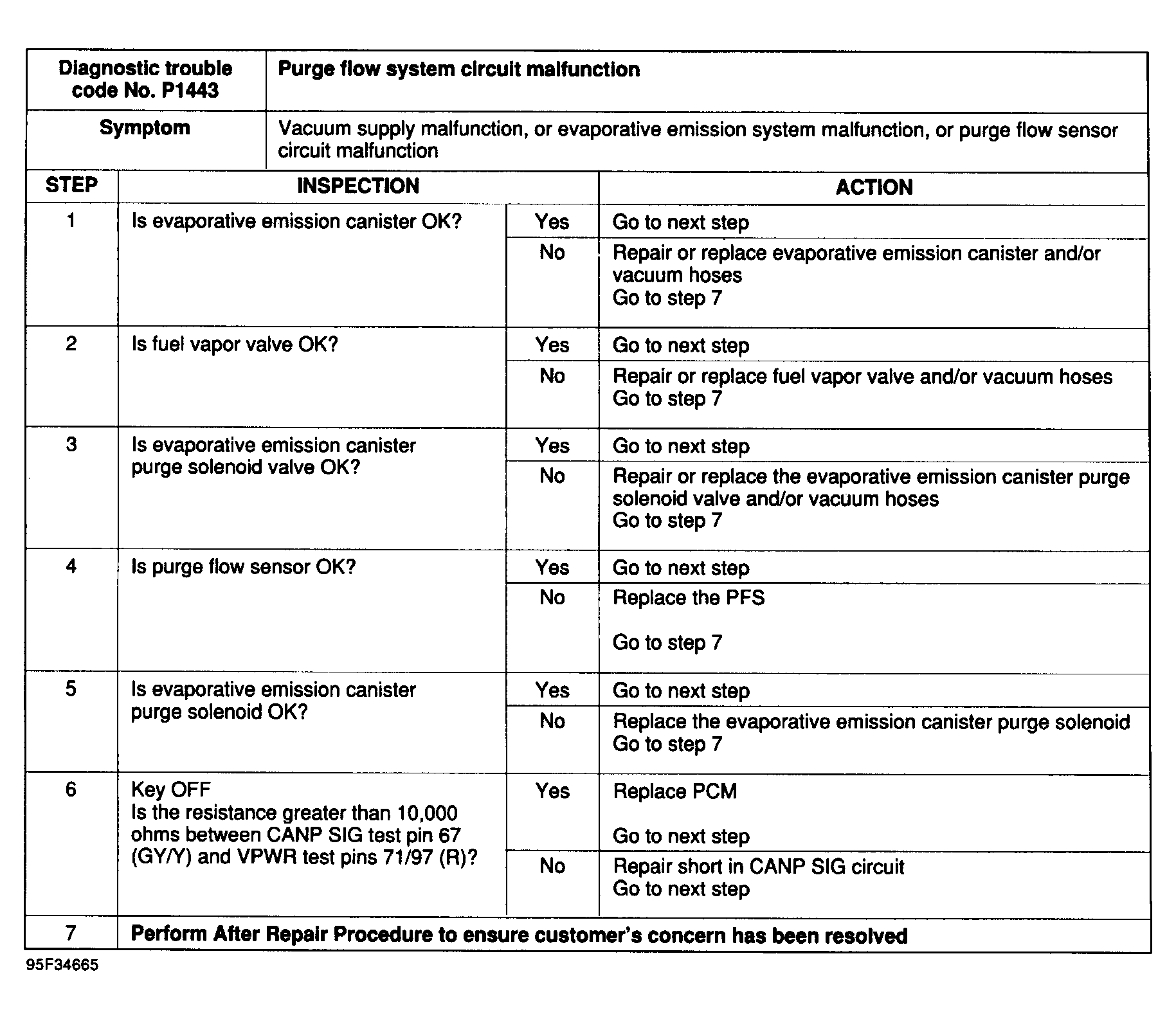

Fig 1: Trouble Code No. P1443 Purge Flow System Circuit Malfunction
G95F34665
Fig 2: Trouble Code No. P1443 Evaporative Emission Canister Purge (CANP) Solenoid Circuit Diagram
G95J34636
