Code P1783: Transmission Fluid Temperature Sensor Circuit Error

WARNING: This page is about a different car, the 1995 Mazda B4000, 1995 Mazda B3000, and 1995 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

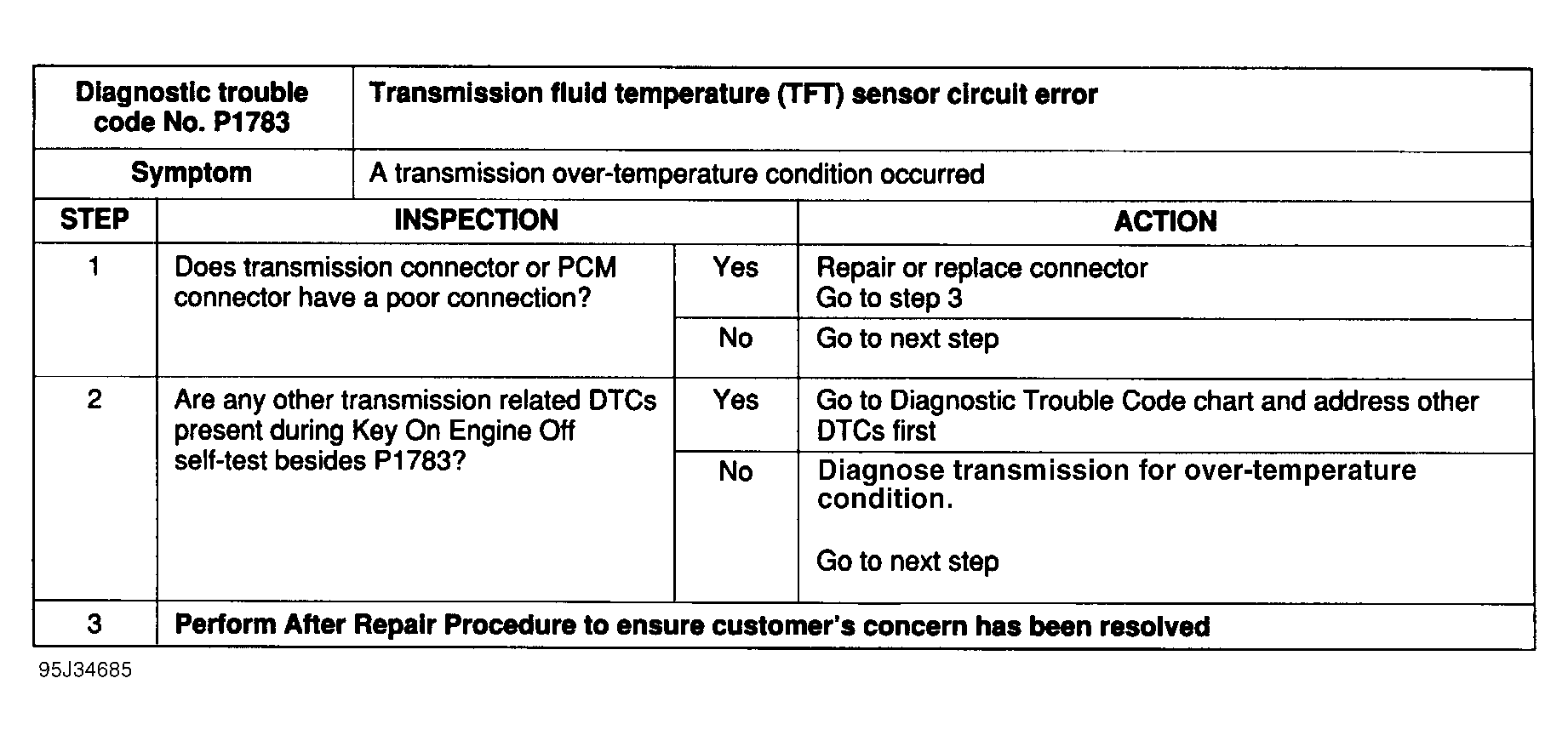

Fig 1: Trouble Code No. P1783 Transmission Fluid Temperature Sensor Circuit Error
G95J34685

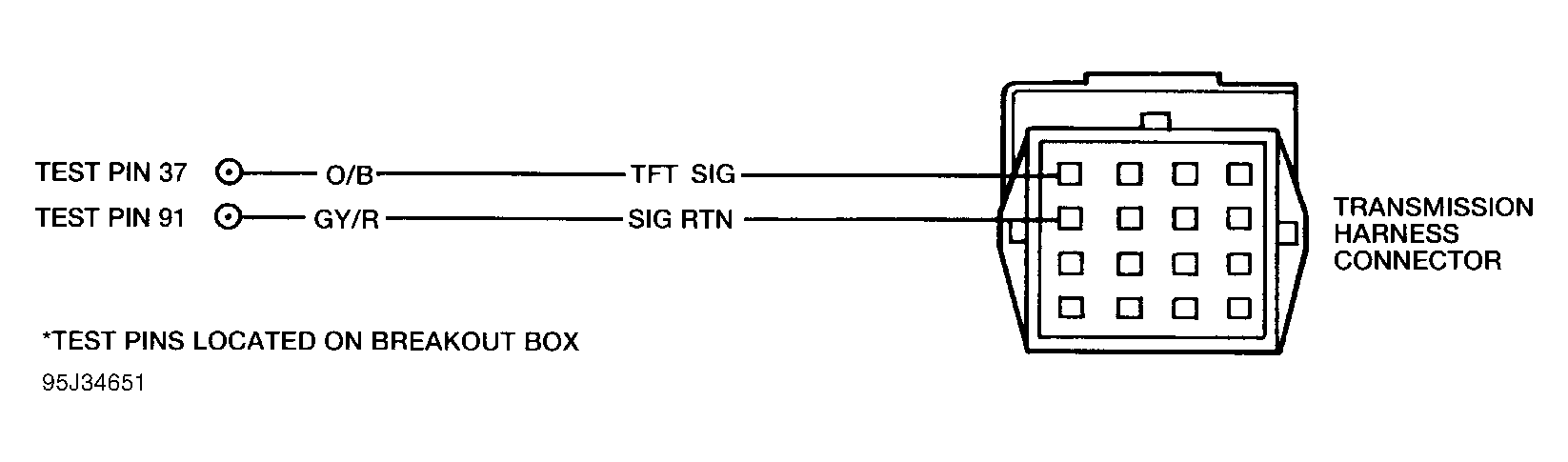

Fig 2: Trouble Code No. P1783 Transmission Fluid Temperature (TFT) Sensor Circuit Diagram
G95J34651
