Manifold Absolute Pressure (Map) Sensor
WARNING: This page is about a different car, the 1995 Mazda RX-7. However, it is still accessible from the selected car via links, so may be relevant.

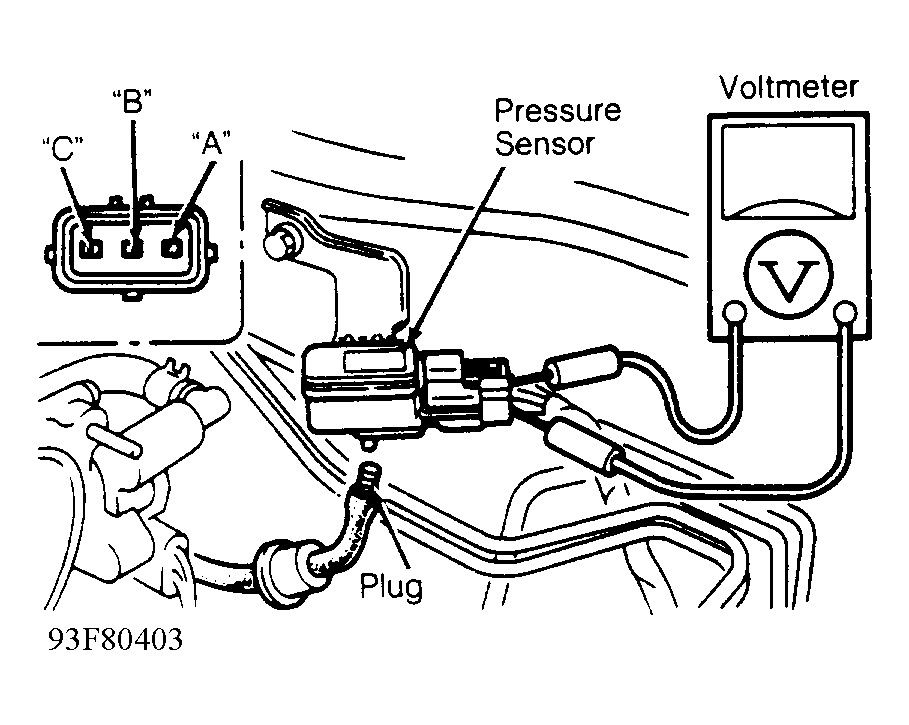

- Warm engine to operating temperature. Turn all accessories off. Connect positive lead of voltmeter to MAP sensor terminal "A" and negative lead to terminal "B". See Fig 1 .
- With engine at idle, voltmeter should read 1.3-1.6 volts. Disconnect and plug vacuum hose from MAP sensor. Voltmeter should read 2.38-2.78 volts. Connect a vacuum pump to MAP sensor, and apply 29 in. Hg. Voltmeter should read 4.35-4.65 volts. If voltmeter readings are not as specified, replace MAP sensor.
