Trouble Code Identification: Notes
WARNING:
This page is about a different car, the 1995 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

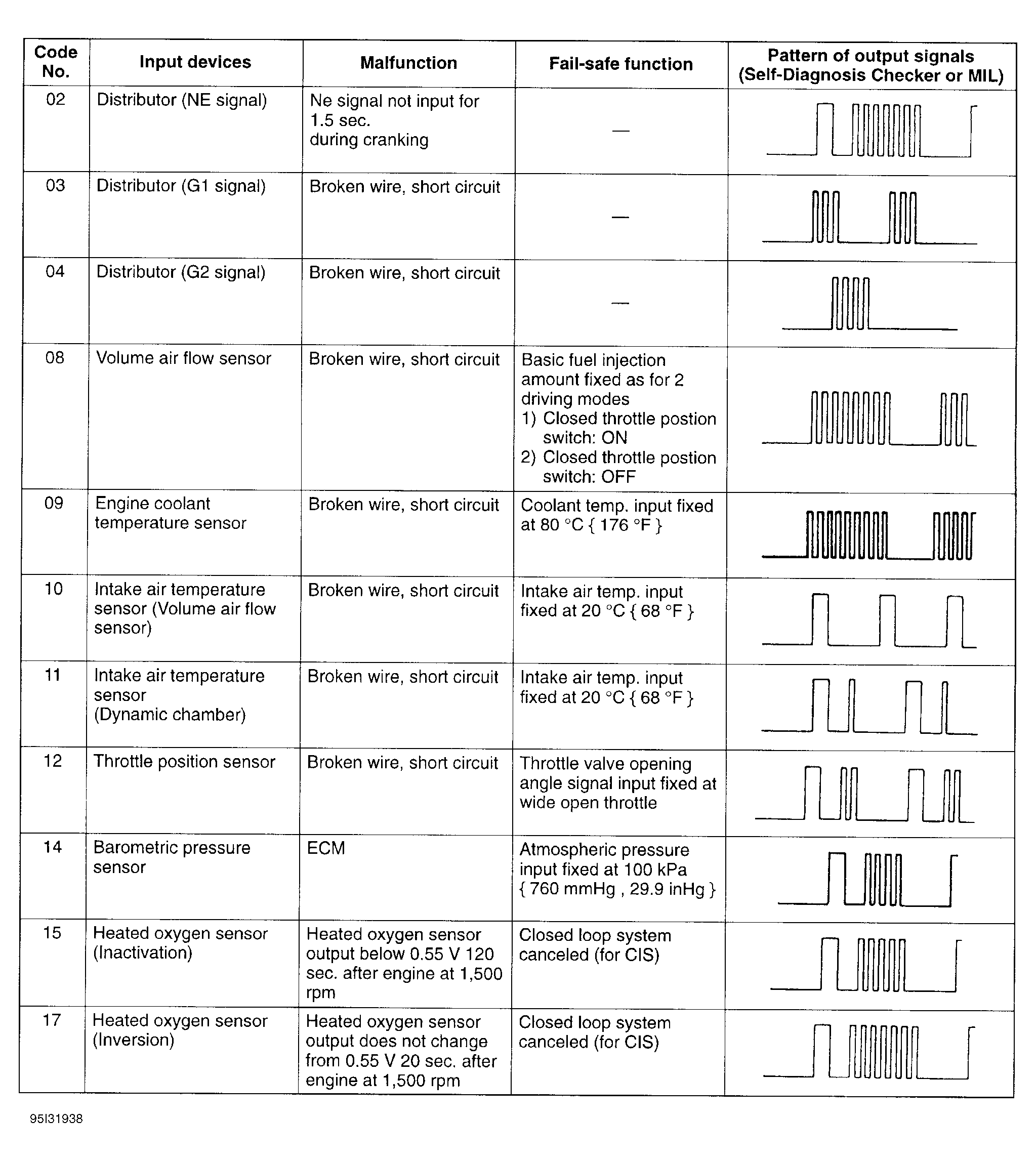

Fig 1: Trouble Code Identification Chart (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

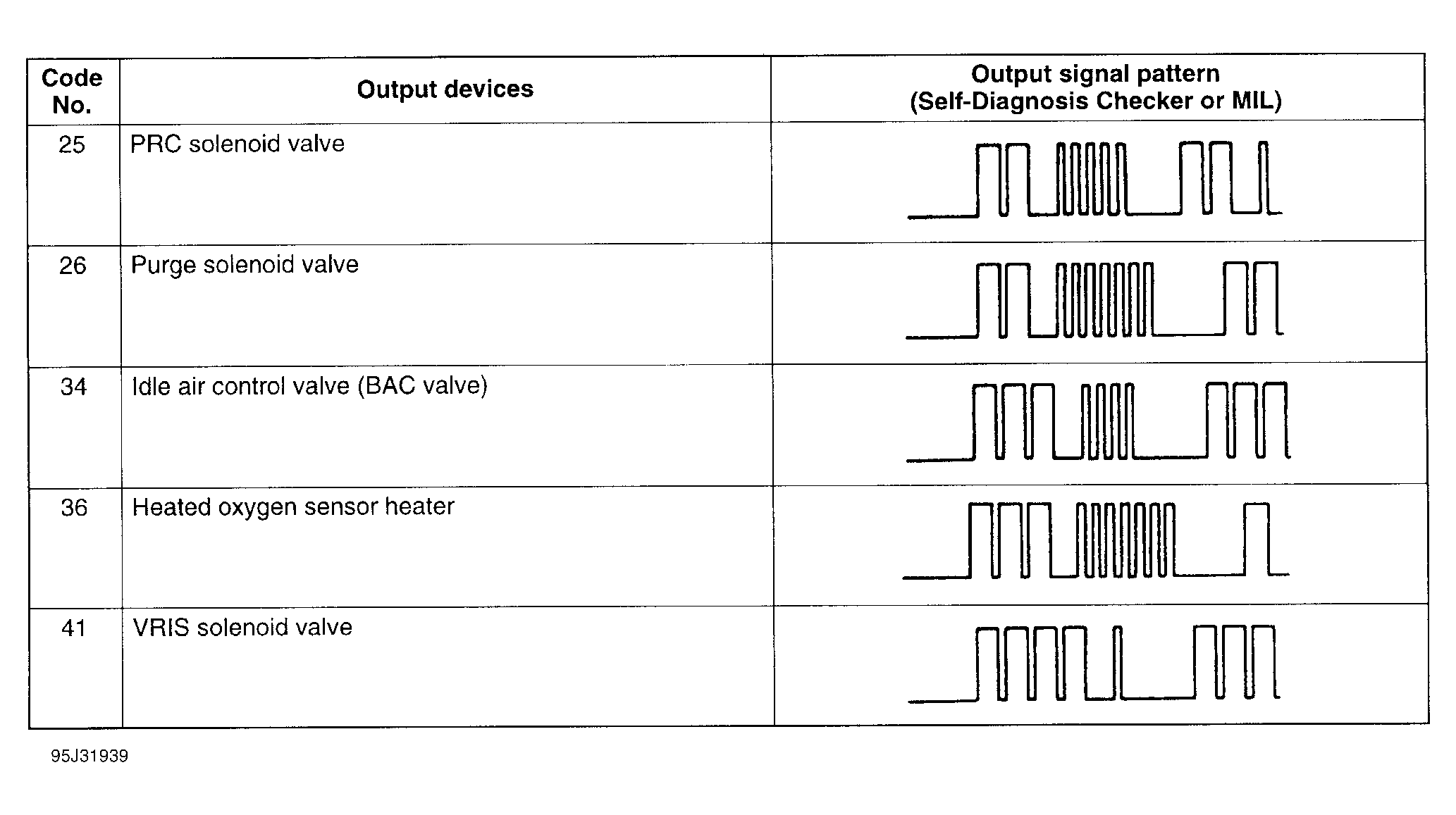

Fig 2: Trouble Code Identification Chart (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
