Parameter Identification Display (PID) Chart

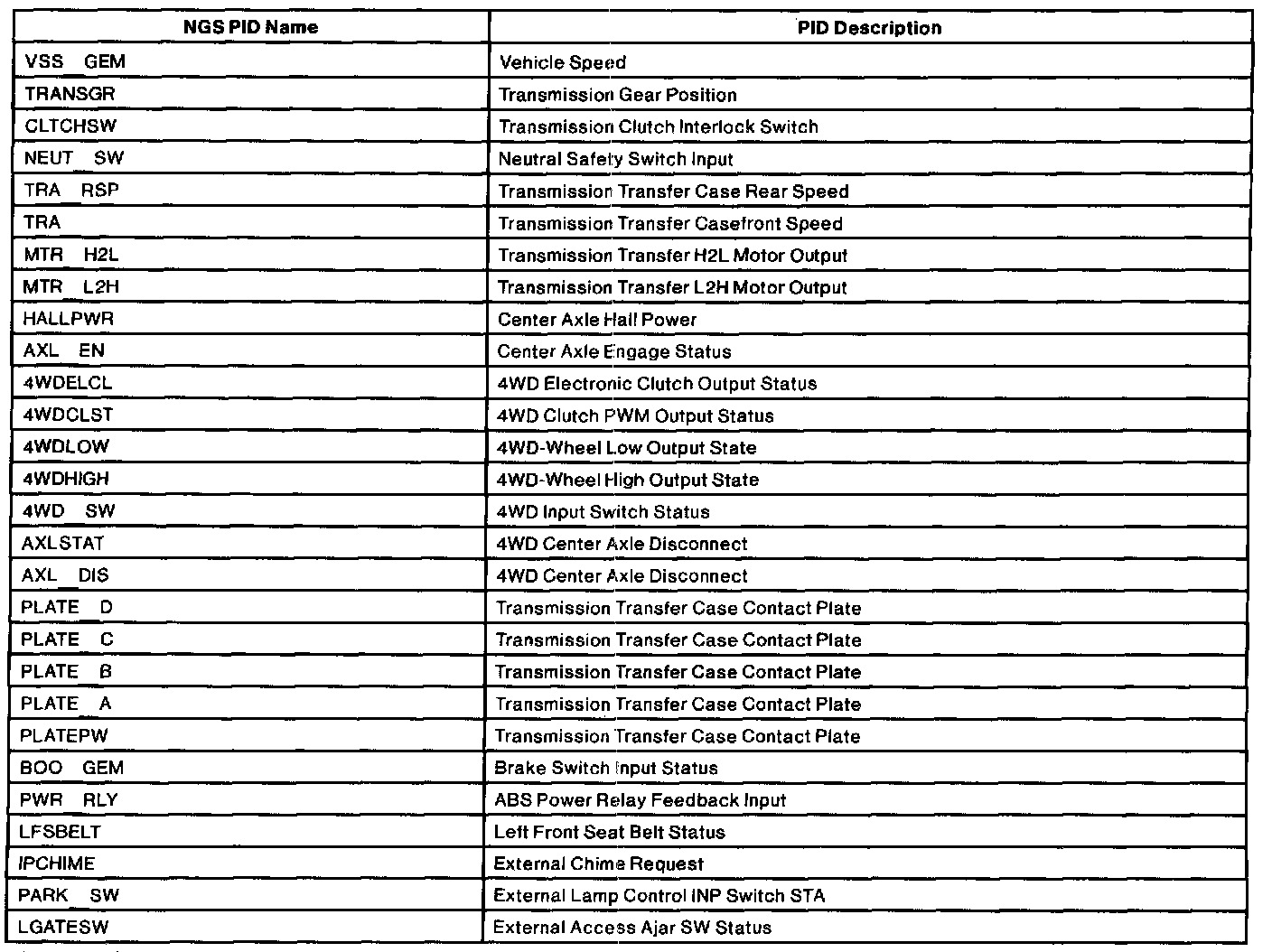

GEM Parameter Identification Display Part 1 Of 2:

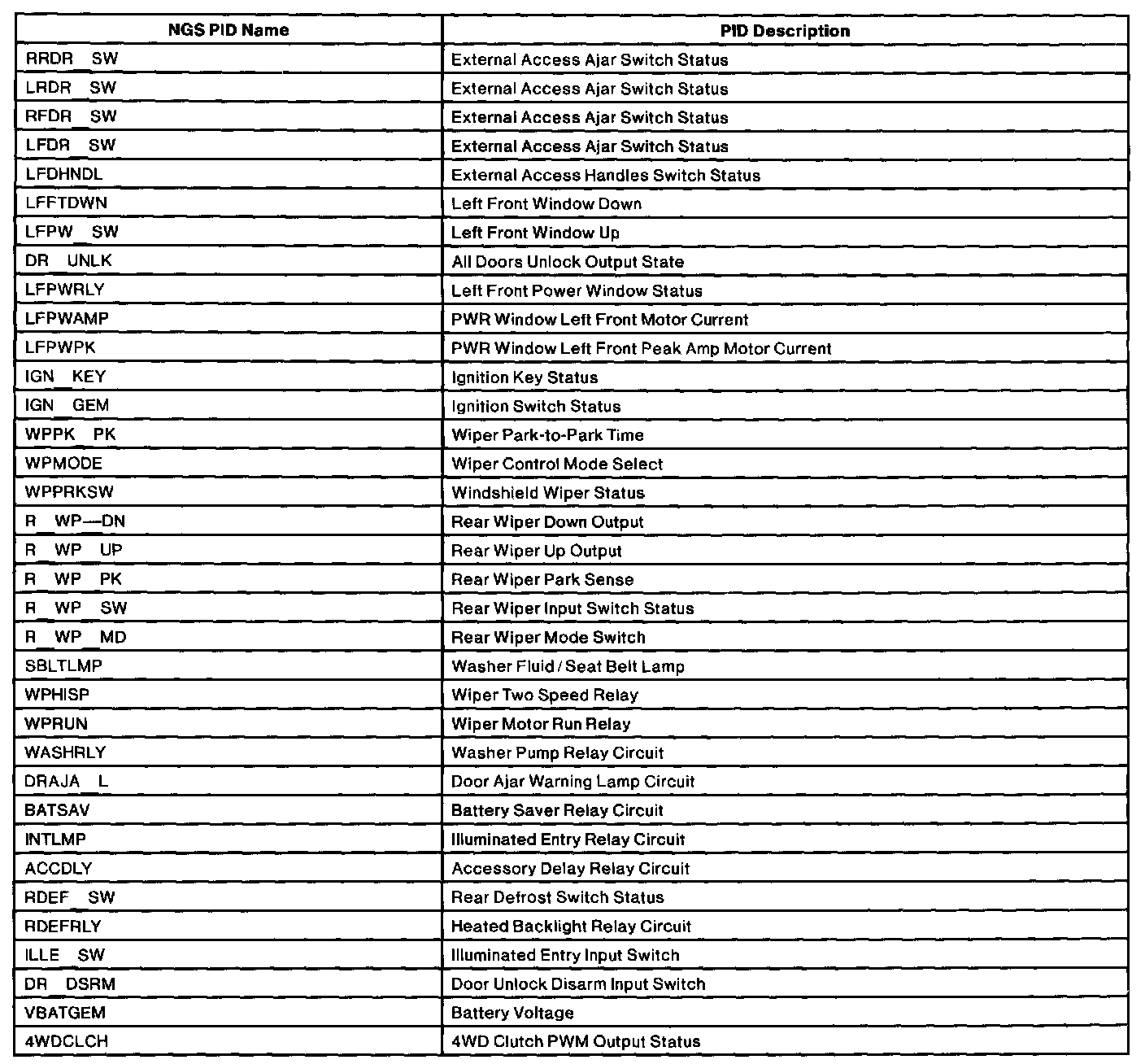

GEM Parameter Identification Display Part 2 Of 2:
