Clutch Switch: Service and Repair

REMOVAL AND INSTALLATION

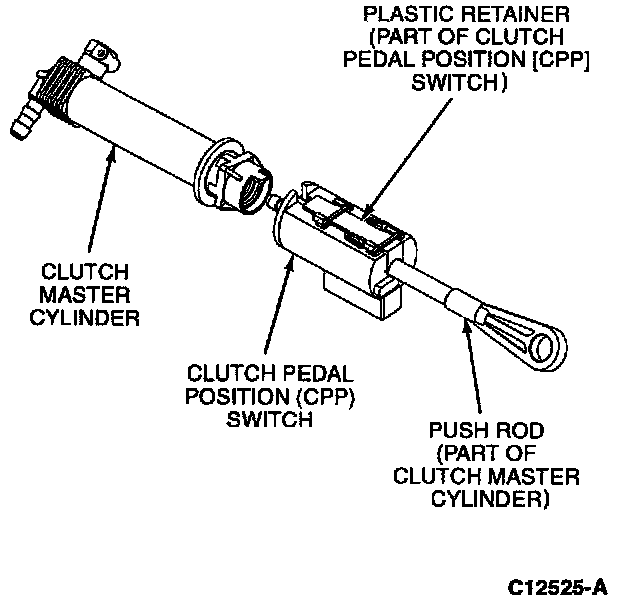

1. Disconnect the wiring harness from Clutch Pedal Position (CPP) switch.
2. Pull down on orientation clip to separate from switch tab.
3. Rotate CPP switch one-half turn to expose plastic retainer.
4. Push tabs together and slide retainer rearward and separate from CPP switch.
5. Remove CPP switch from clutch master cylinder pushrod.
6. For installation, reverse removal procedures.
