Engine Views

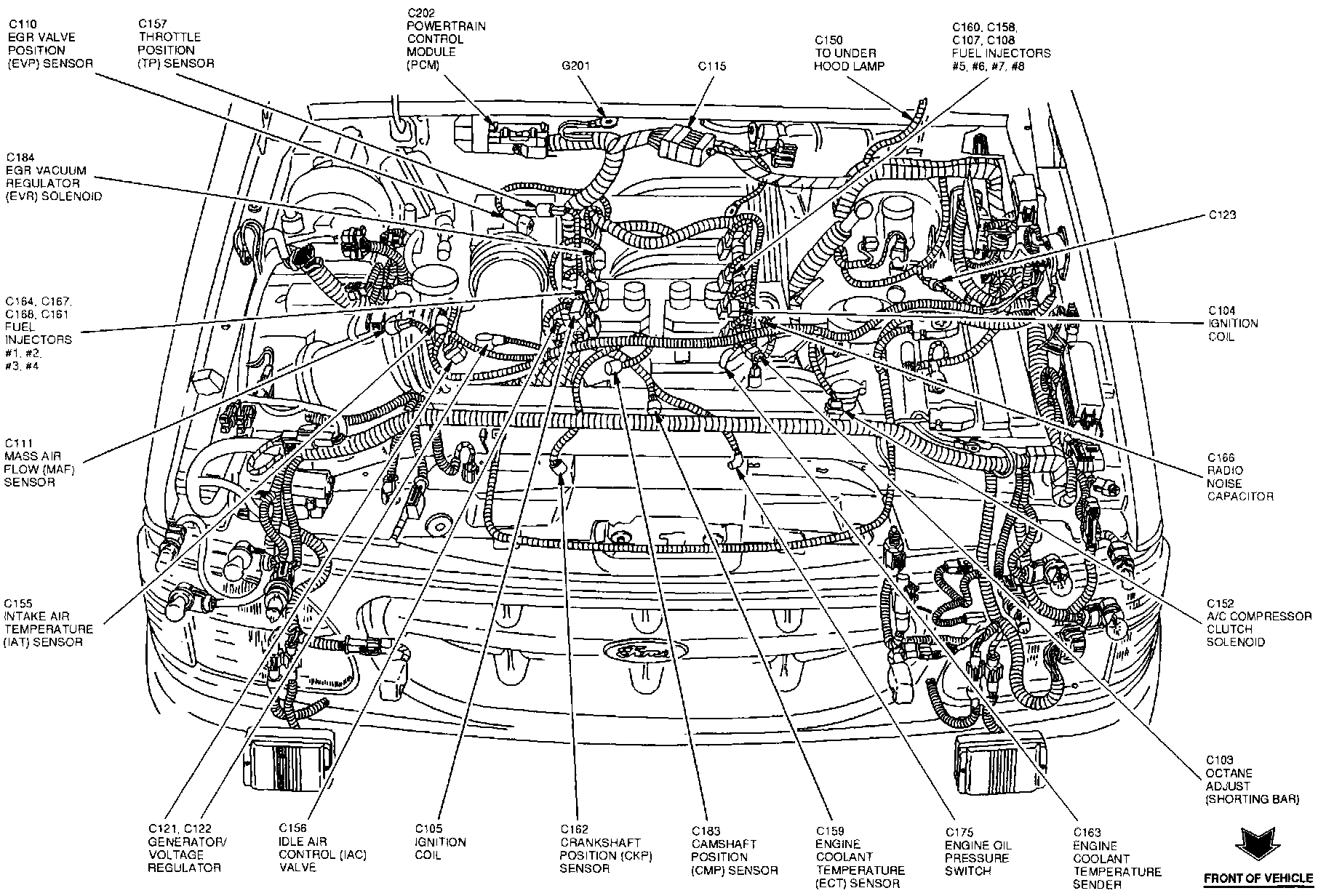

Engine View:





A/C COMPRESSOR CLUTCH SOLENOID
CAMSHAFT POSITION SENSOR
CRANKSHAFT POSITION SENSOR
EGR VACUUM REGULATOR SOLENOID
EGR VALVE POSITION SENSOR
ENGINE COOLANT TEMPERATURE SENDER
ENGINE COOLANT TEMPERATURE SENSOR
ENGINE OIL PRESSURE SWITCH
FUEL INJECTORS #1
FUEL INJECTORS #2
FUEL INJECTORS #3
FUEL INJECTORS #4
FUEL INJECTORS #5
FUEL INJECTORS #6
FUEL INJECTORS #7
FUEL INJECTORS #8
GENERATOR/VOLTAGE REGULATOR
IDLE AIR CONTROL VALVE
IGNITION COIL
INTAKE AIR TEMPERATURE SENSOR
MASS AIR FLOW SENSOR
OCTANE ADJUST
POWERTRAIN CONTROL MODULE
RADIO NOISE CAPACITOR
SHORTING BAR
THROTTLE POSITION SENSOR
UNDER HOOD LAMP
