Main Relay (Computer/Fuel System): Locations

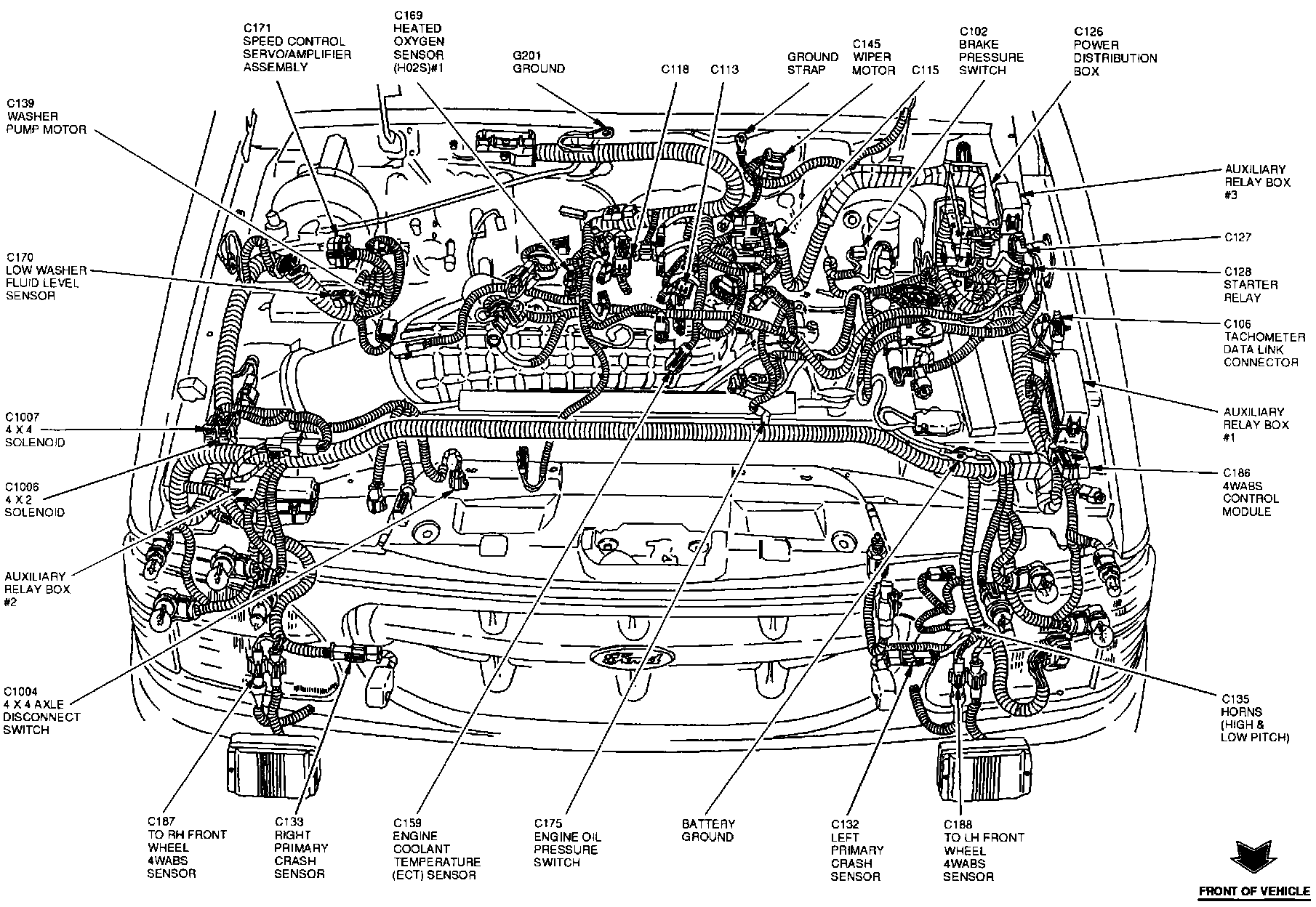

Engine View:

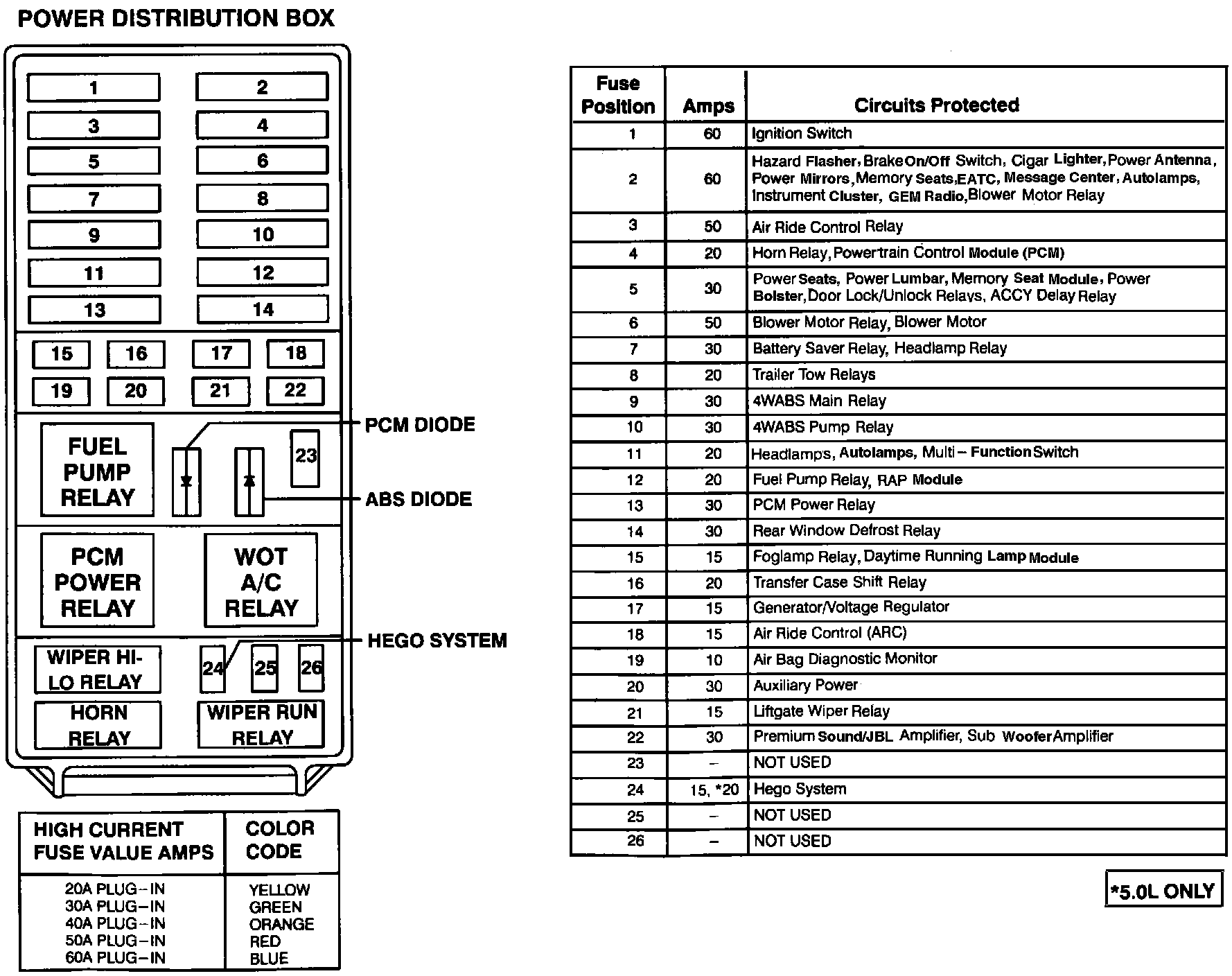

Power Distribution Box:

The PCM Power Relay is mounted on the power distribution box at the RH fender apron.
