Constant Control Relay Module (CCRM)

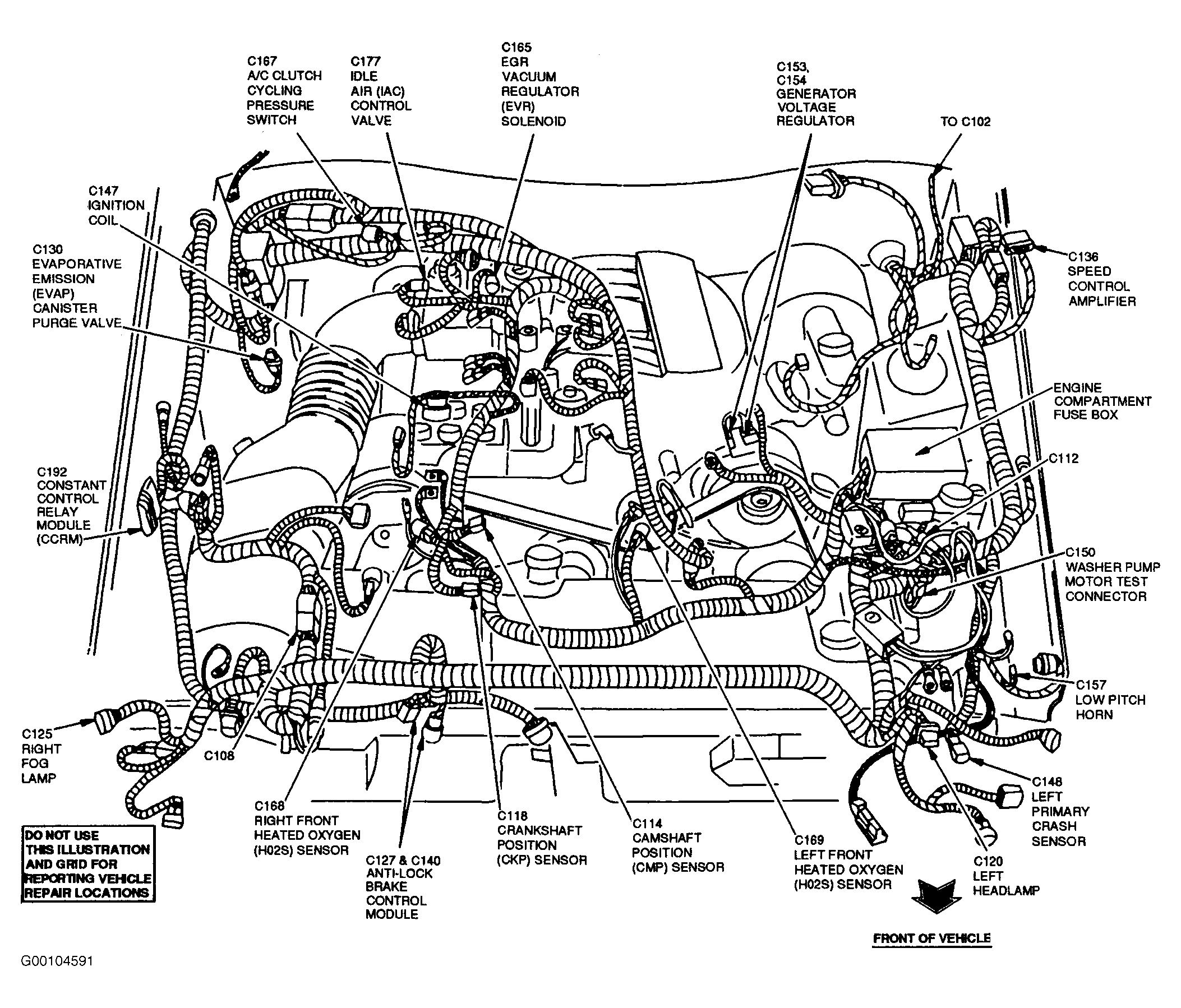

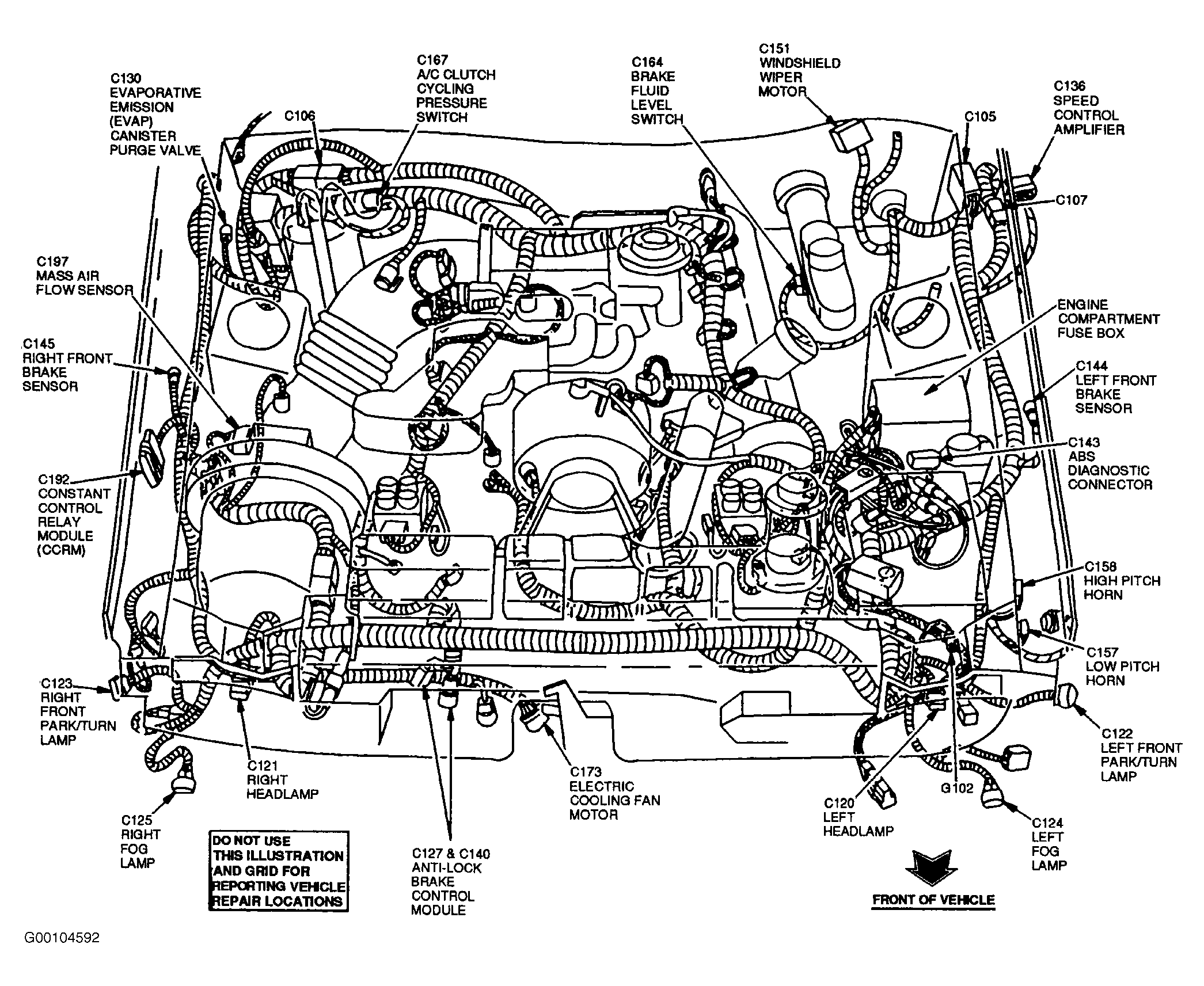

NOTE: CCRM is located on bracket, behind engine coolant reservoir. See Figure or Figure .
