Anti-Theft Control Module
>>
Coupe
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Coupe

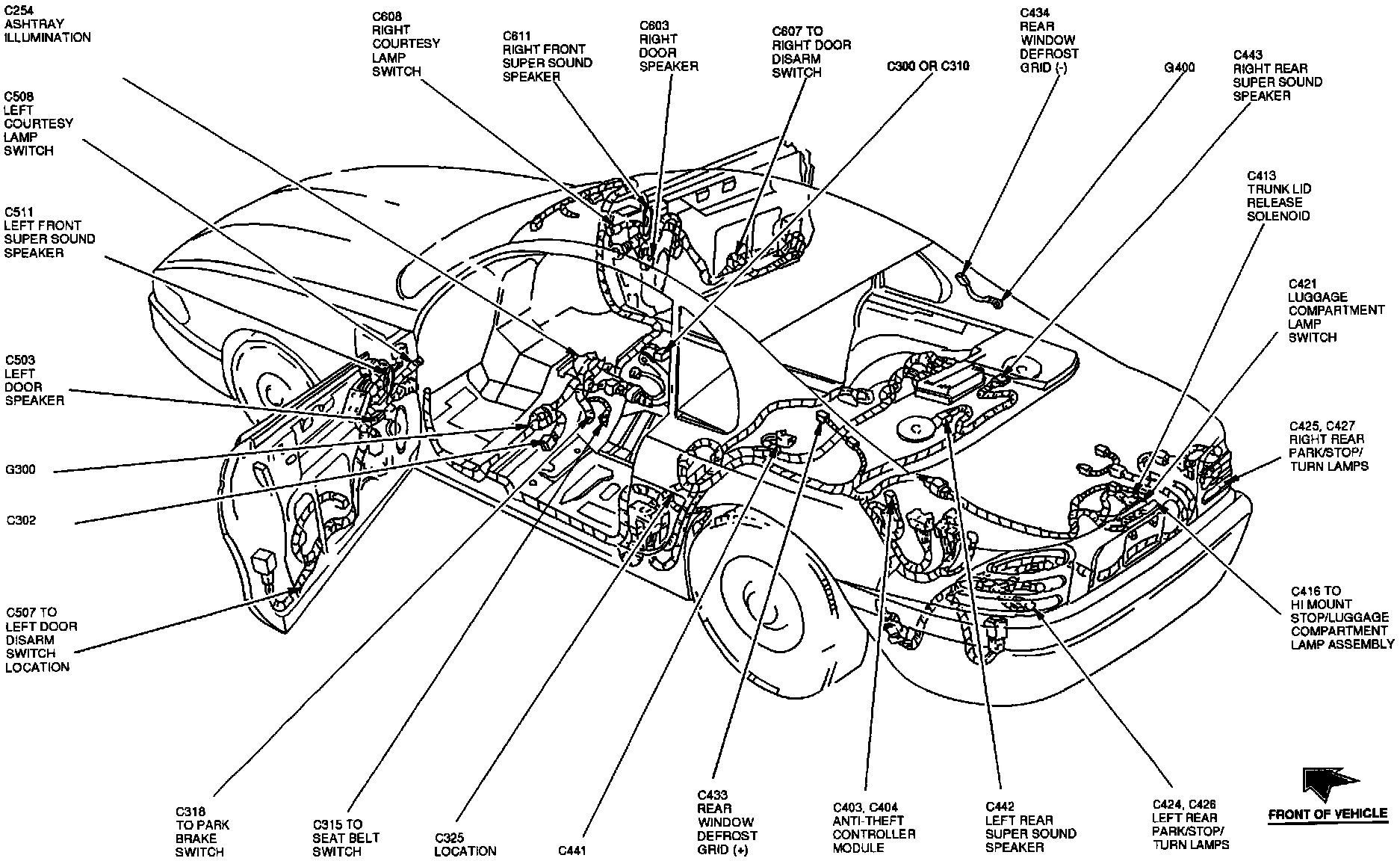

Full-body View (Coupe):
The Anti-Theft Controller Module is located at the LH rear of the trunk, behind trim panel.
