Right Power Window/Door Lock Switch

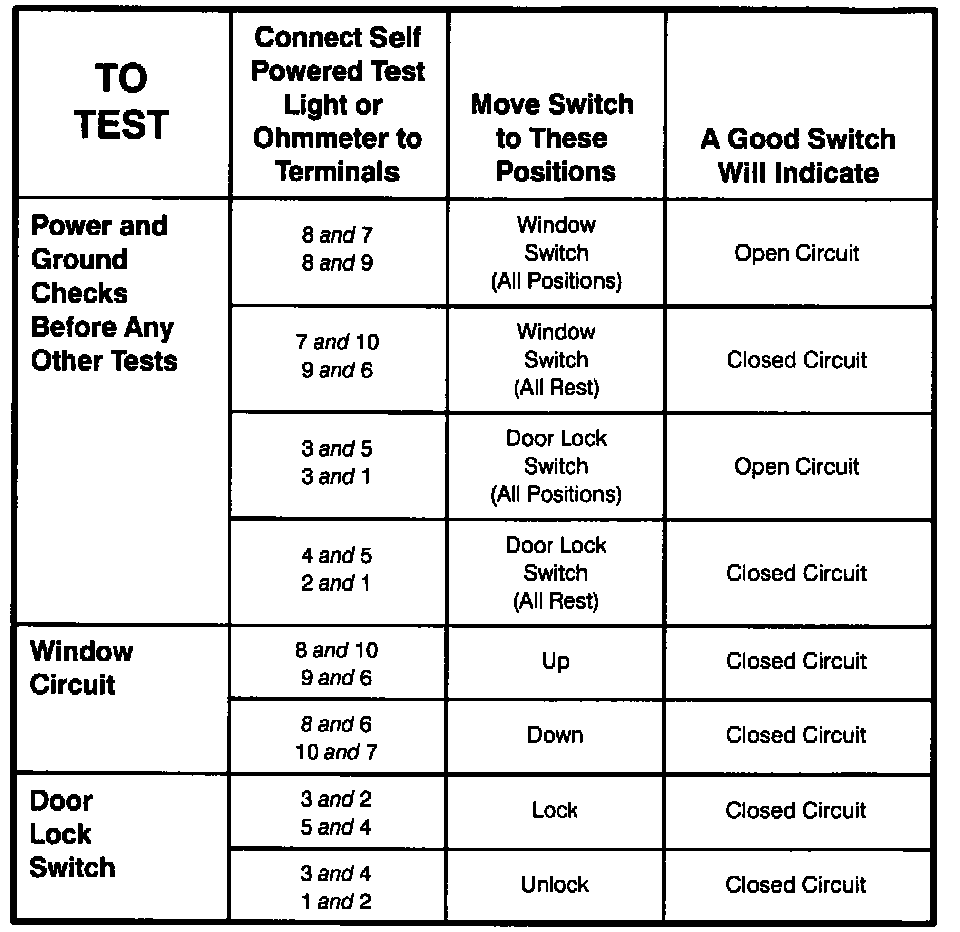

Right Window/door Lock Control Switch-component Testing Procedure:

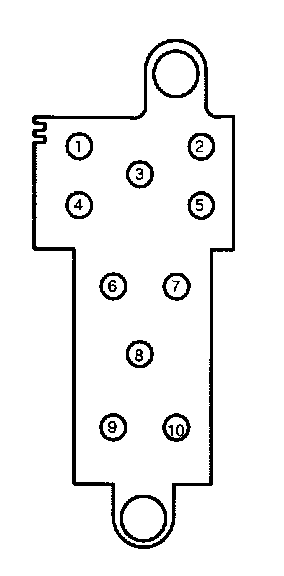

Terminals:

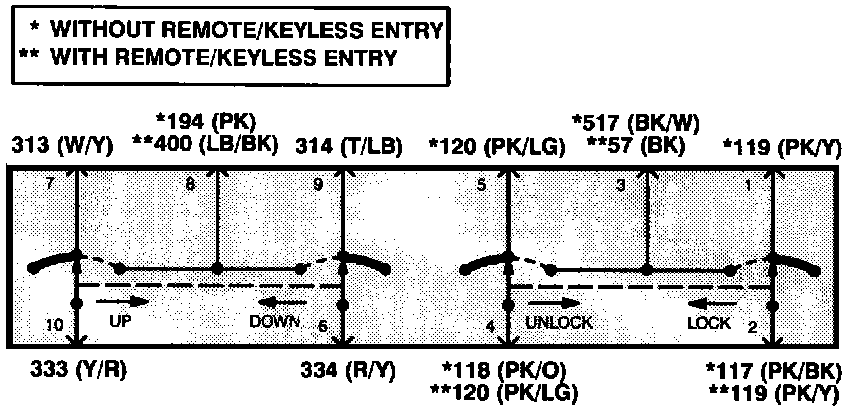

Right Window/door Lock Control Switch-Schematic:
