Timing Chain Guide

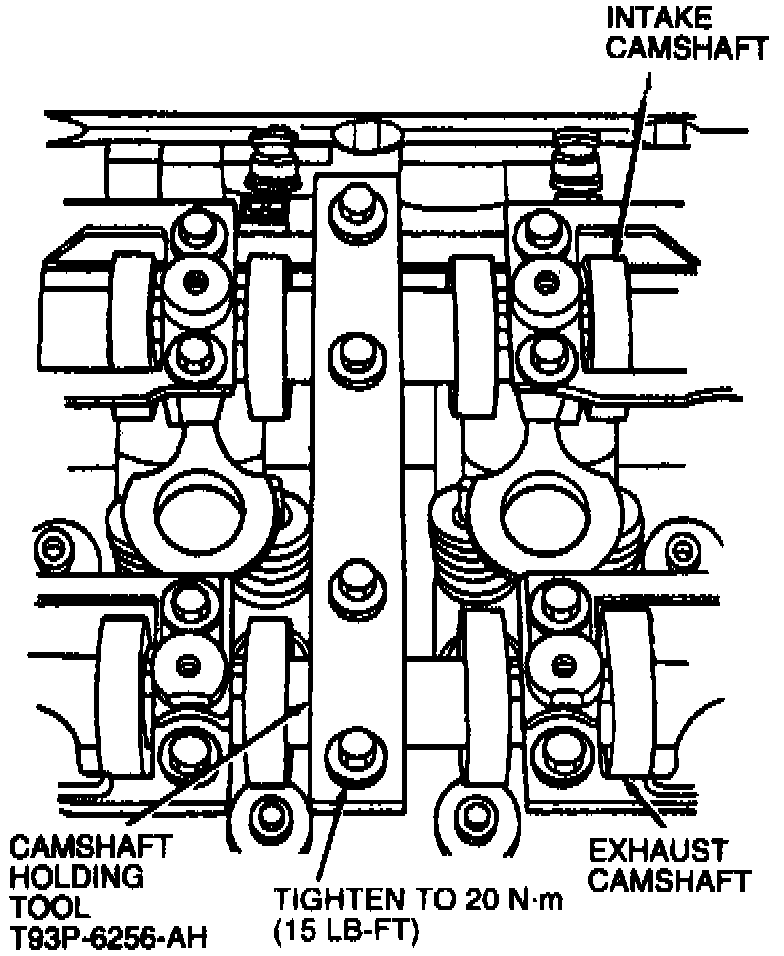

Fig. 24 Camshaft Holding Tool:

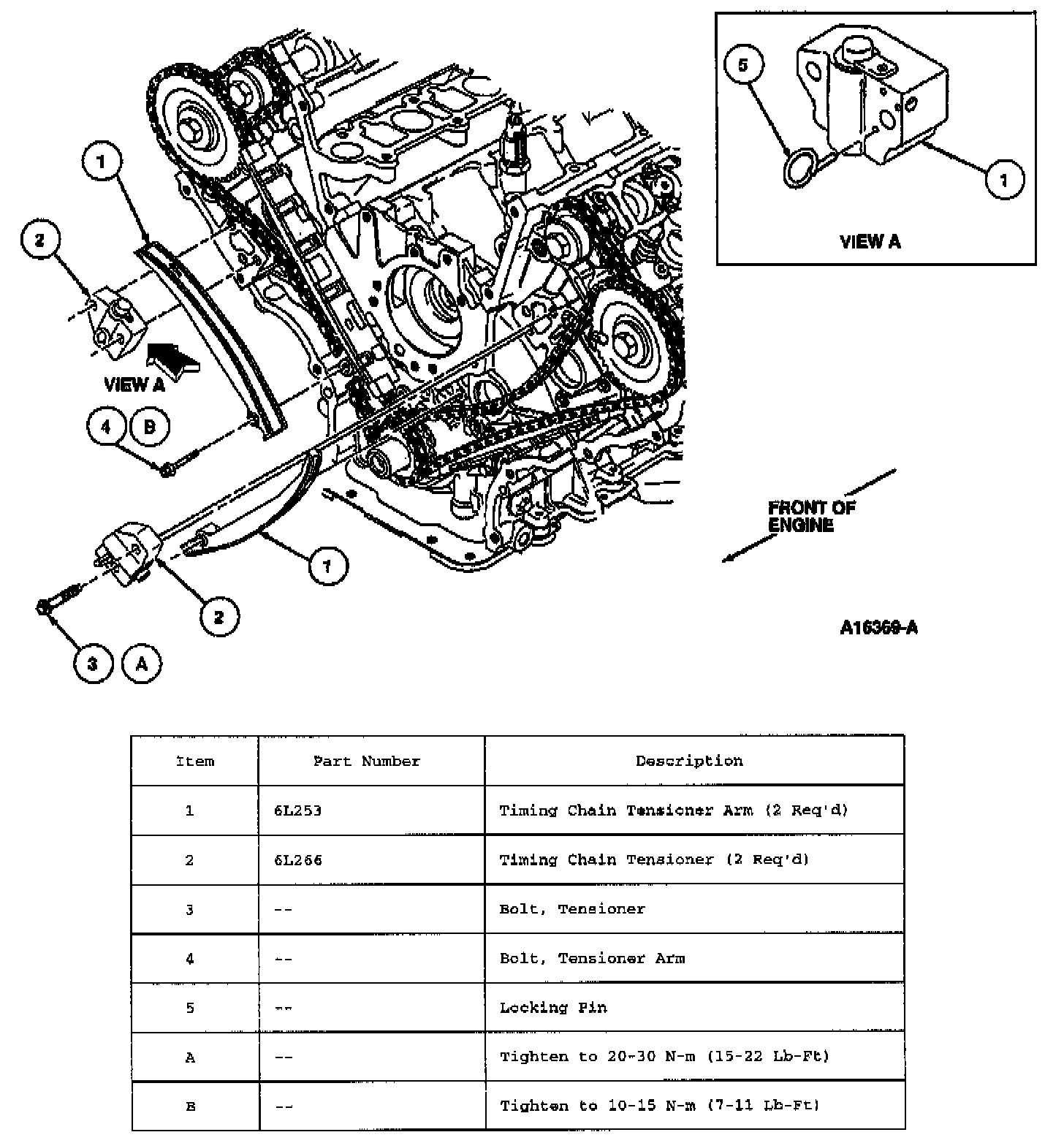

RH Timing Chain Tensioner:



Secondary Timing Chains:

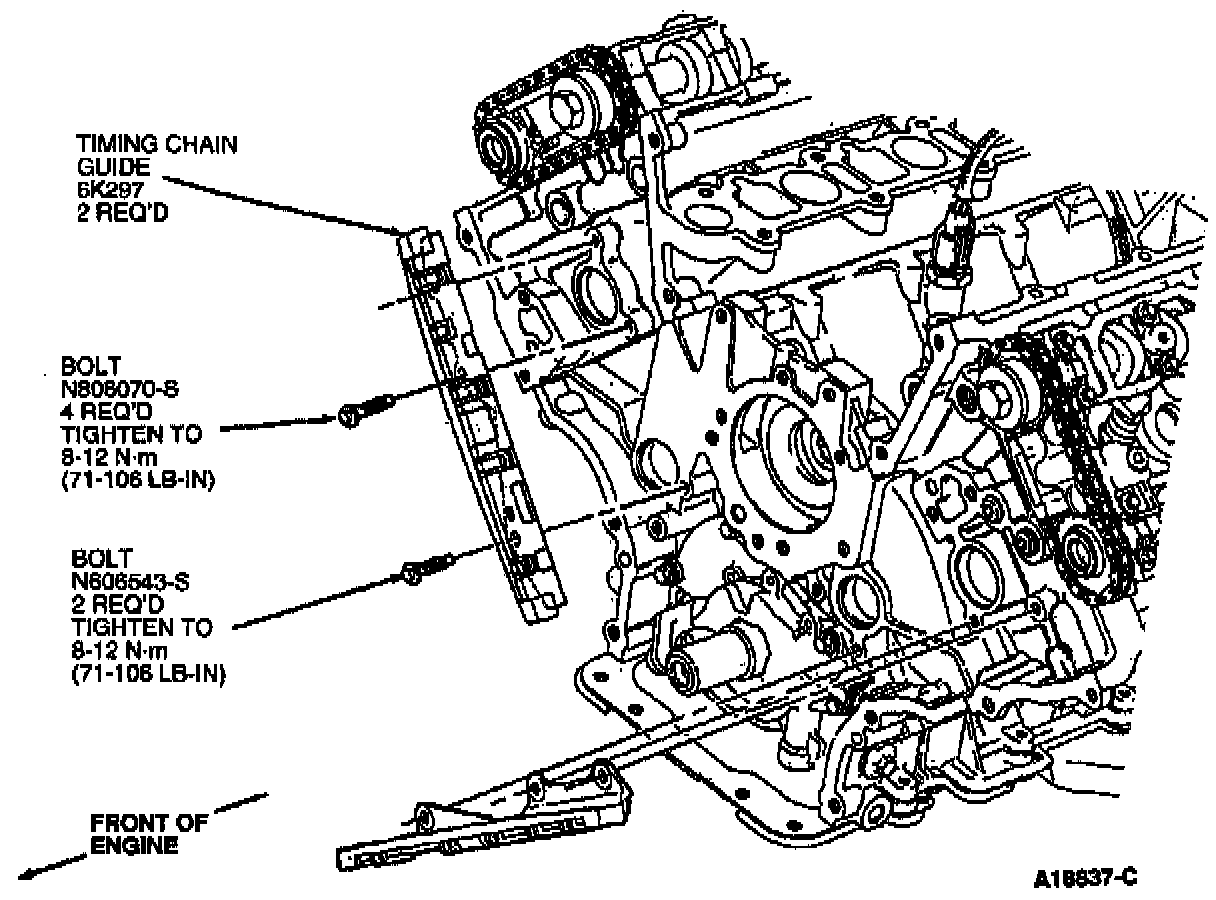

Timing Chain Guides:
