Block Diagrams and Connector Pin Usage
>>
With Manual Transaxle
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
With Manual Transaxle

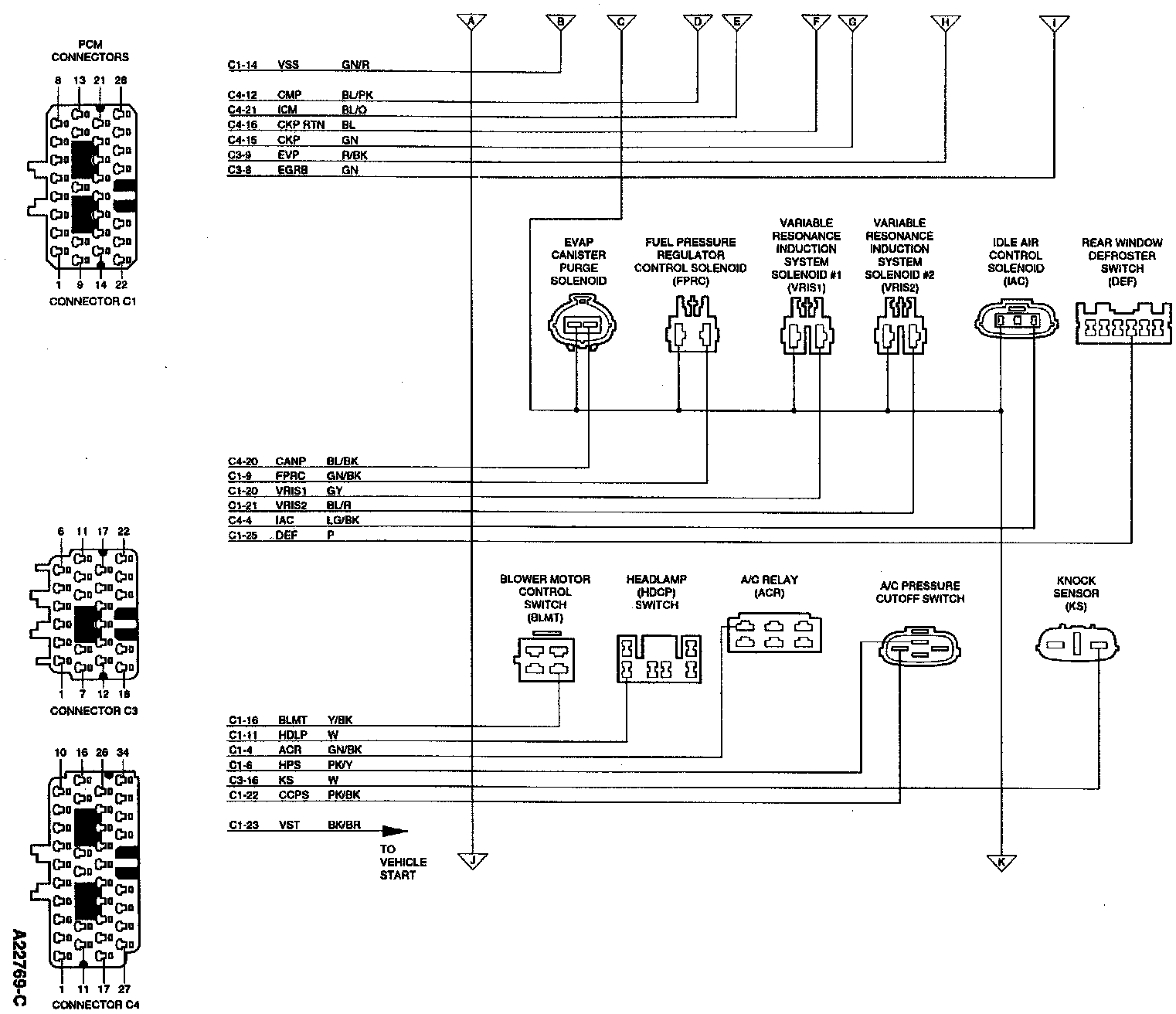

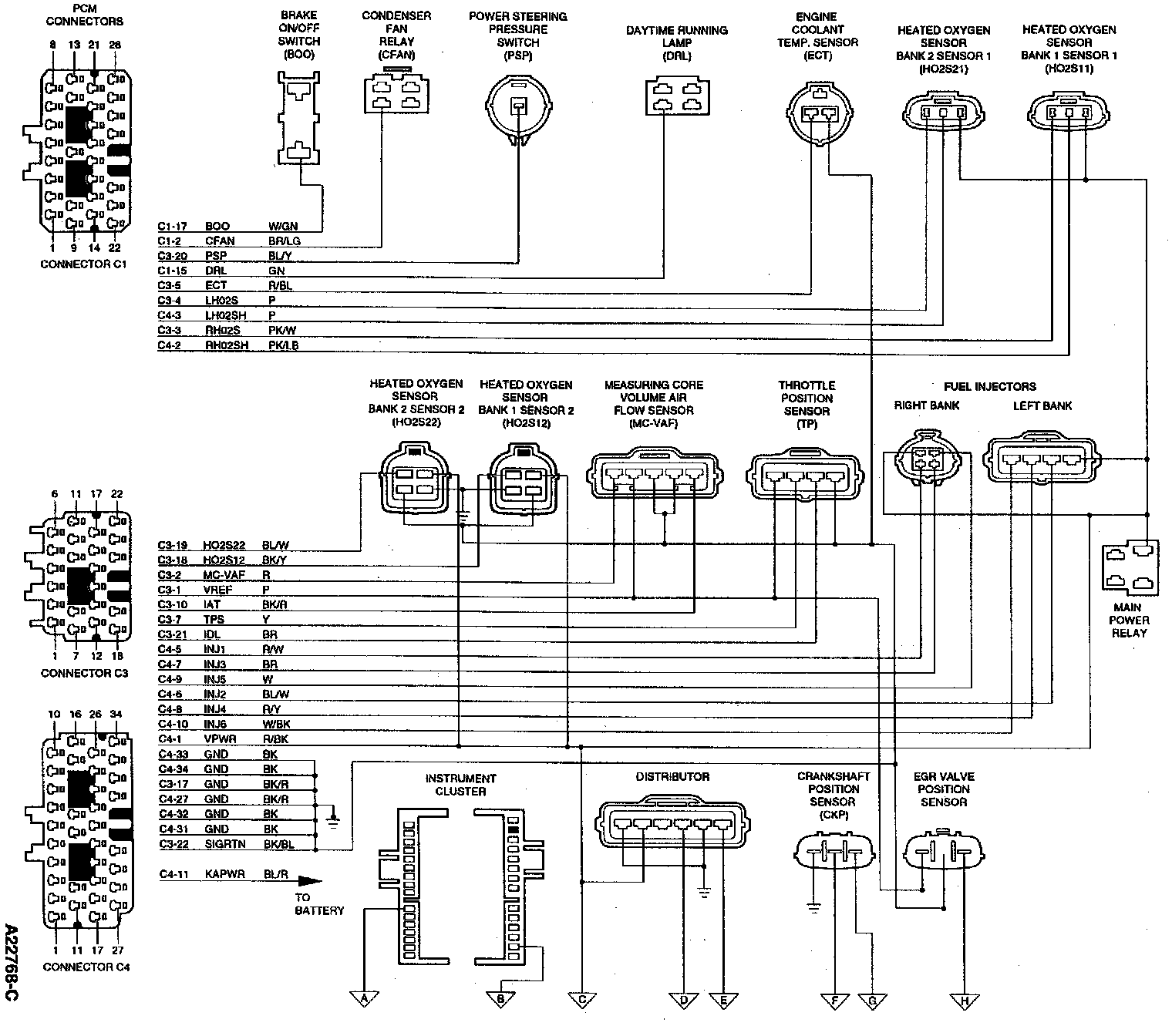

Electrical Schematic:
Electrical Schematic:
Electrical Schematic:

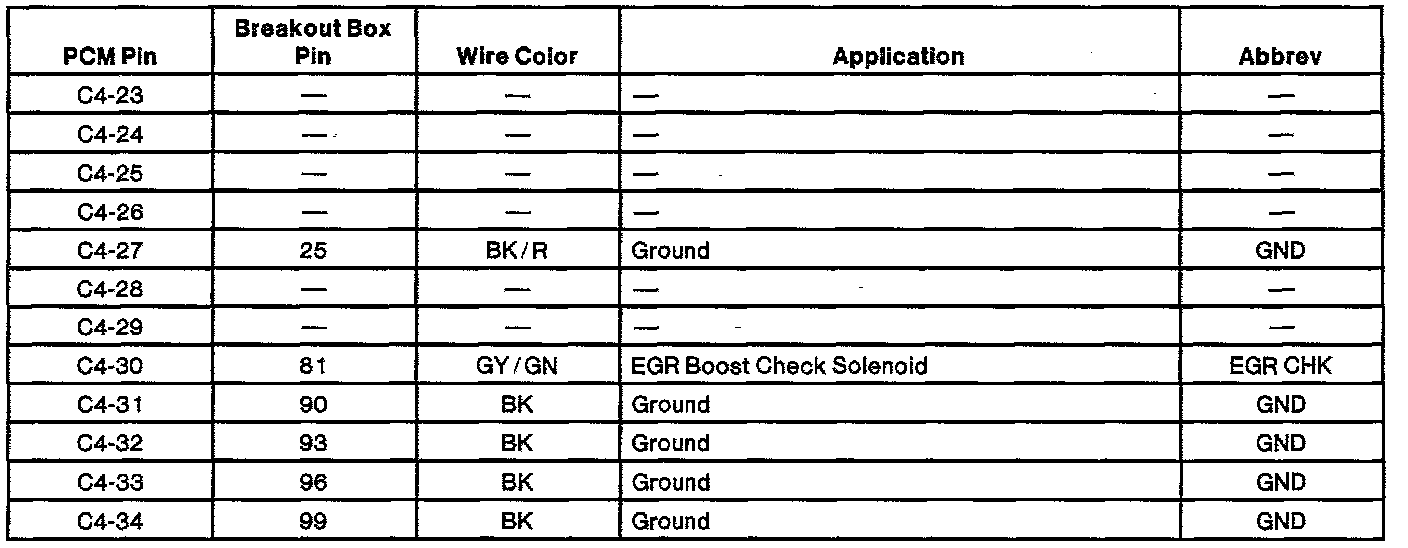

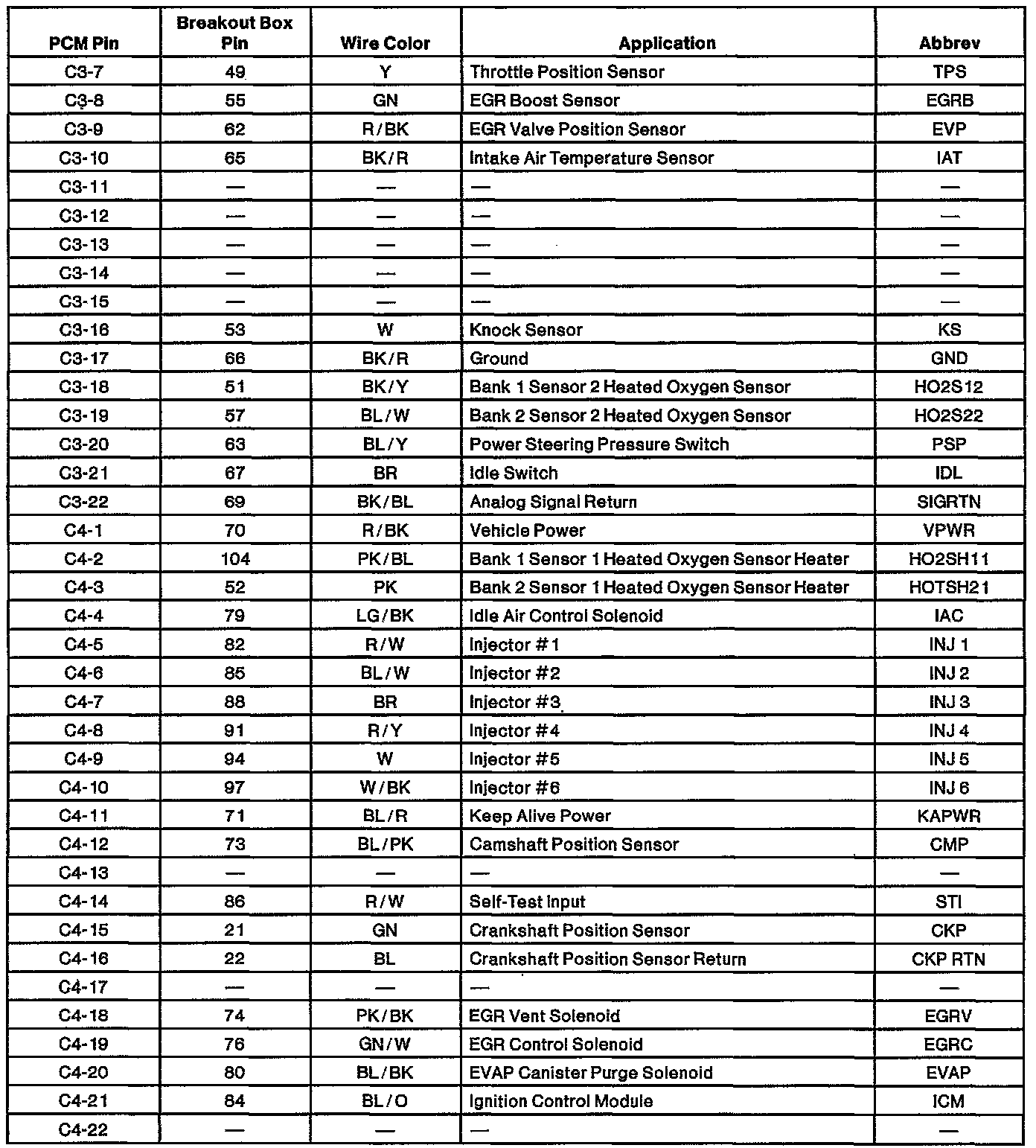

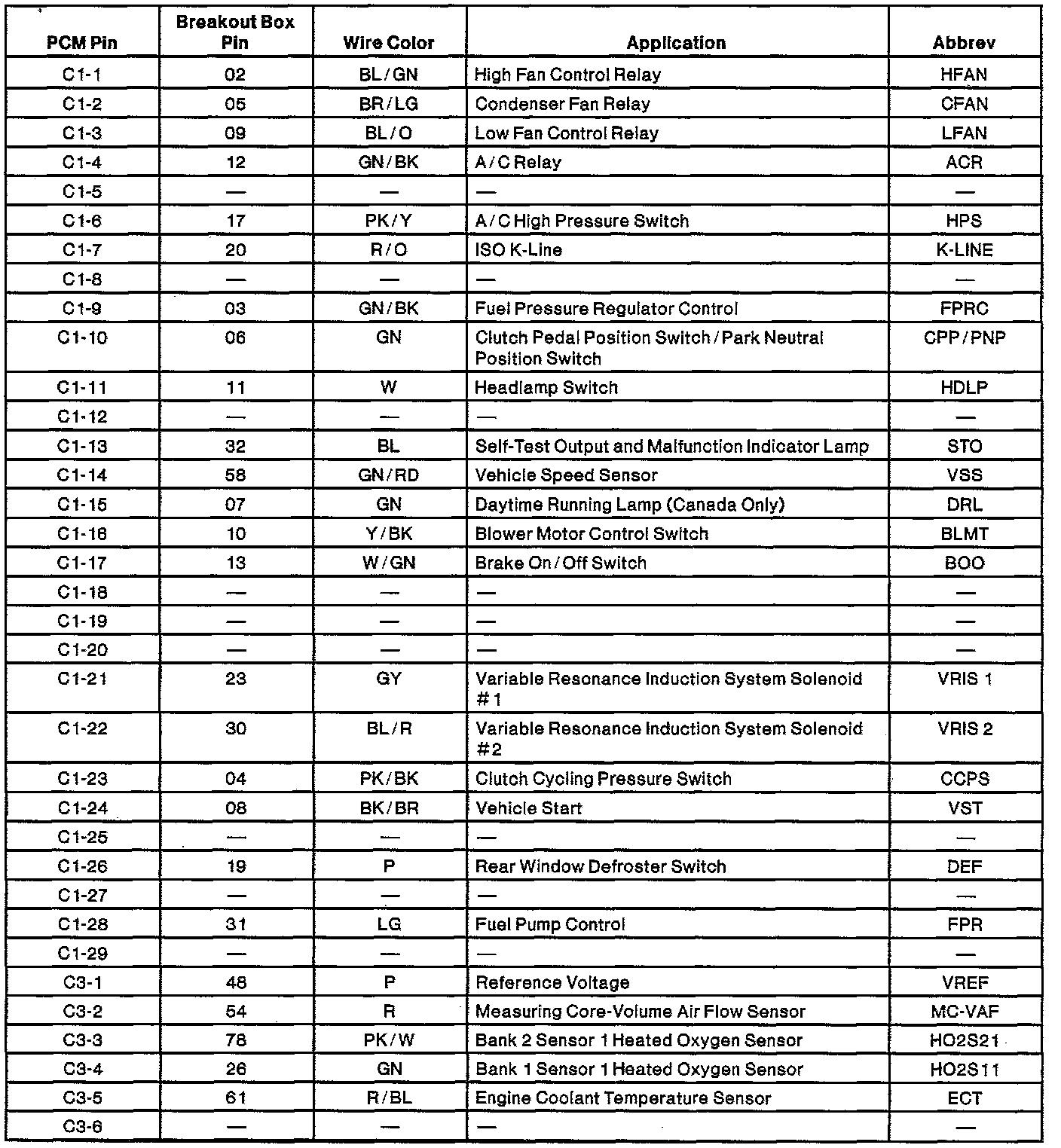

Powertrain Control Module (PCM) Connector Pin Usage:
Powertrain Control Module (PCM) Connector Pin Usage:
Powertrain Control Module (PCM) Connector Pin Usage:
