Connector Views

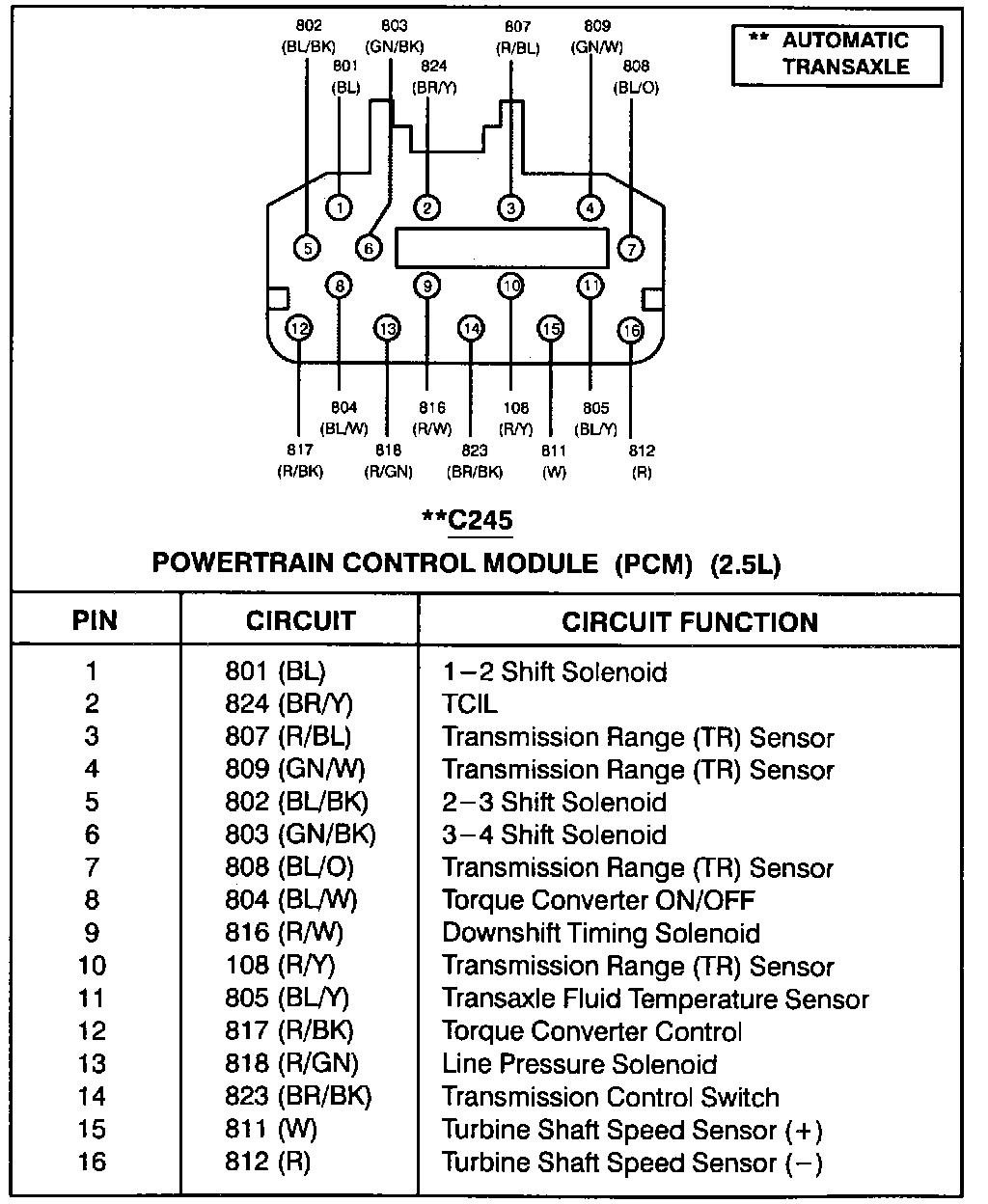

Powertrain Control Module (C245):

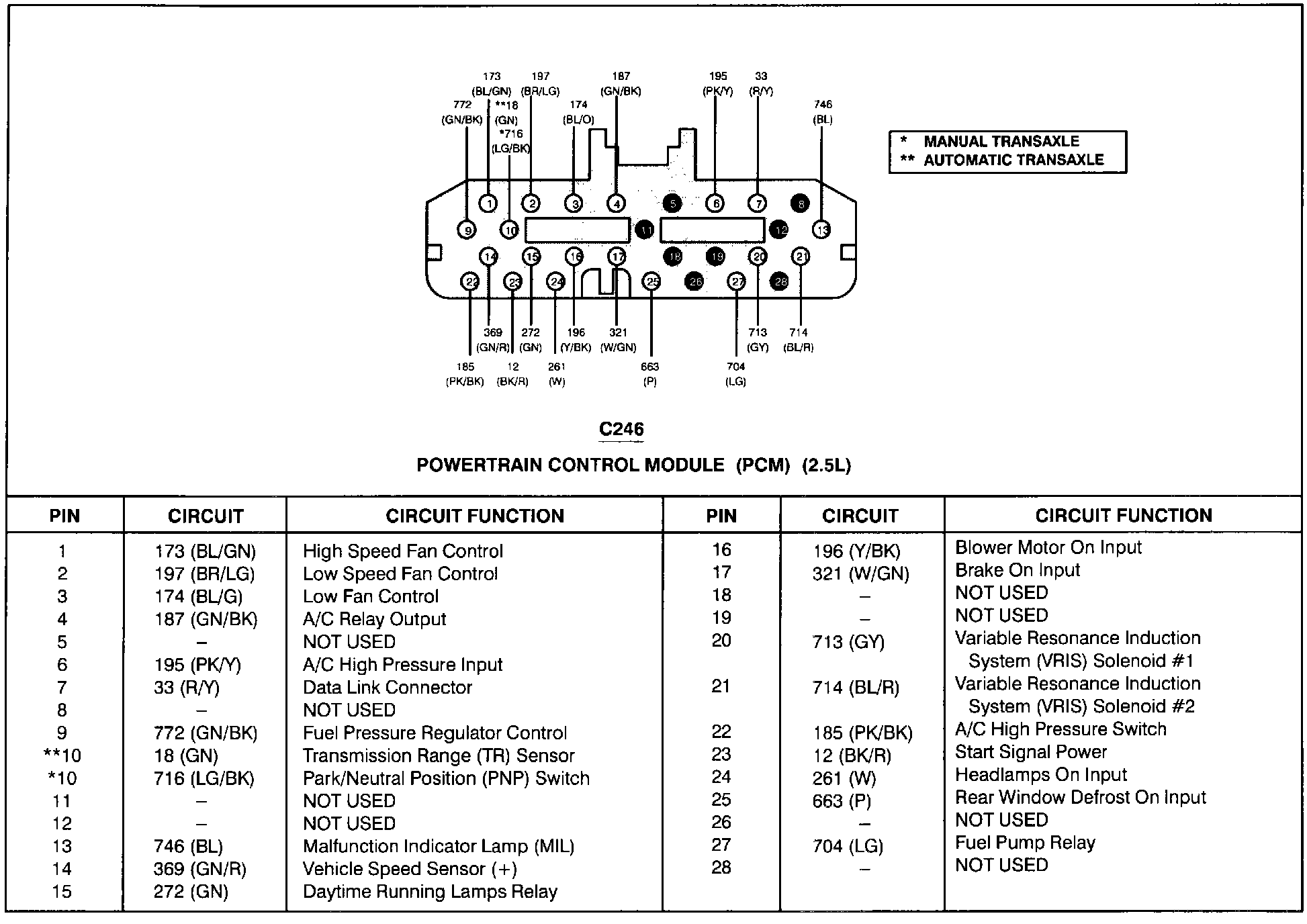

Powertrain Control Module (C246):

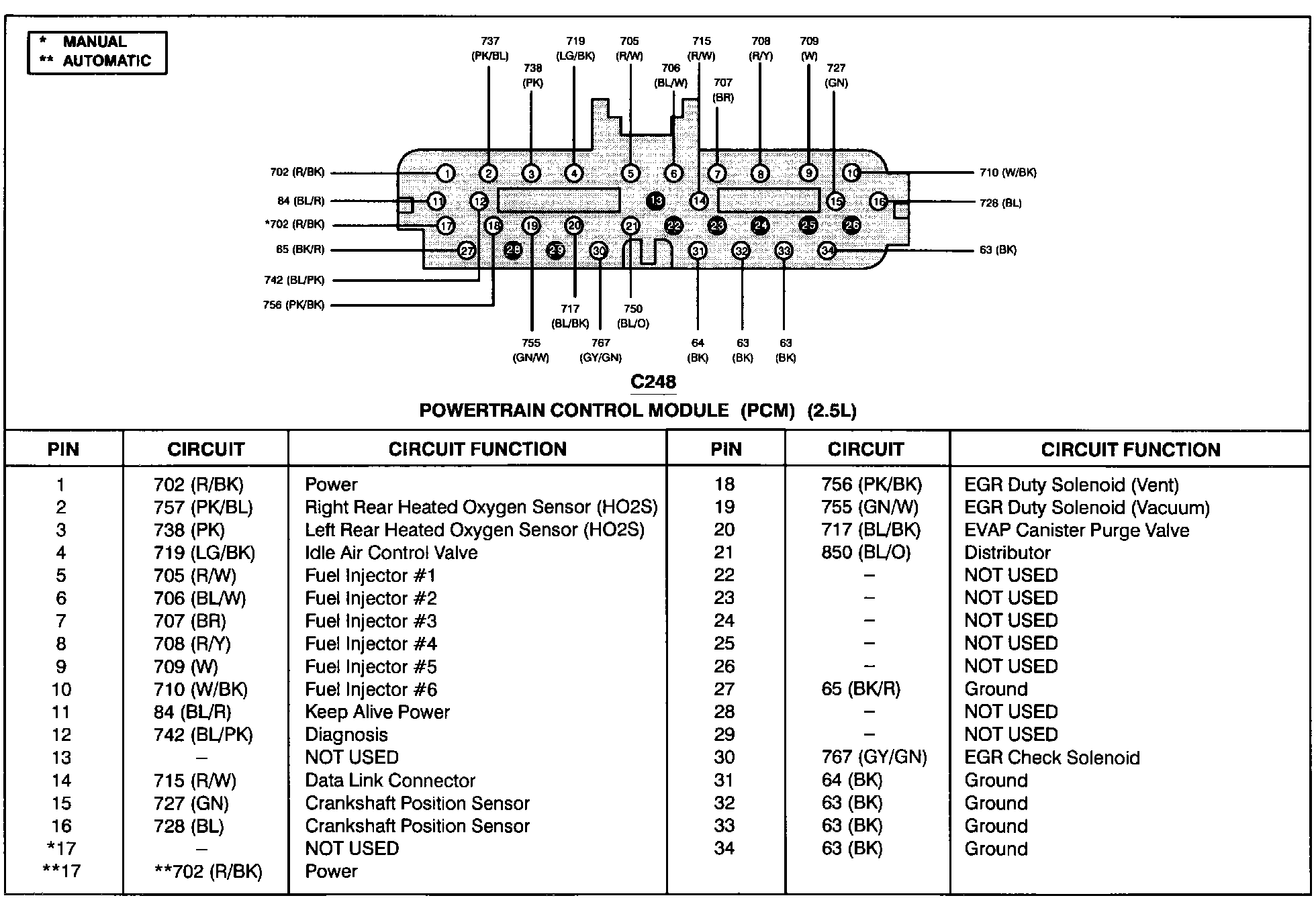

Powertrain Control Module (C248):

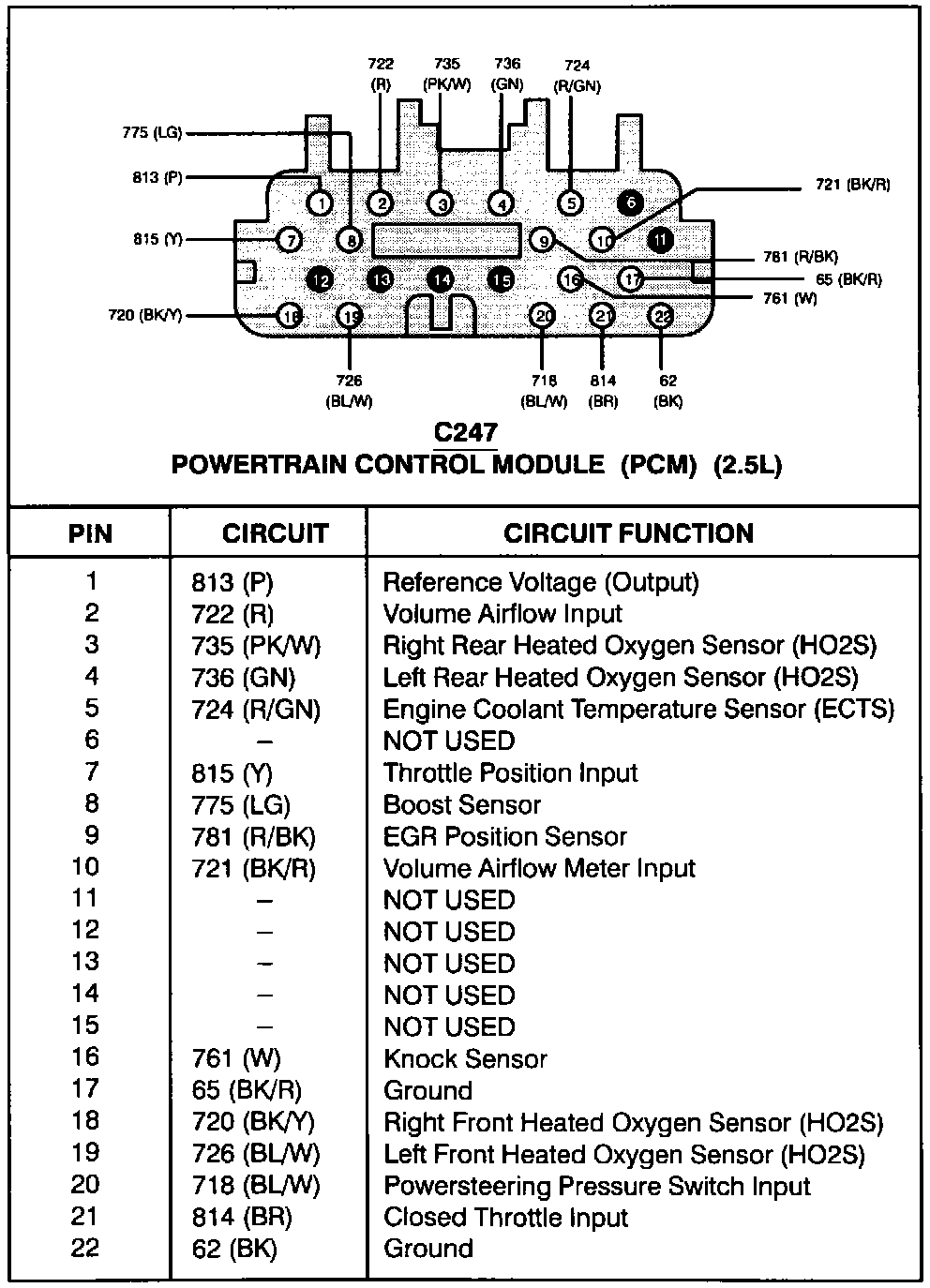

Powertrain Control Module (C247):
