Pinpoint Test Schematic

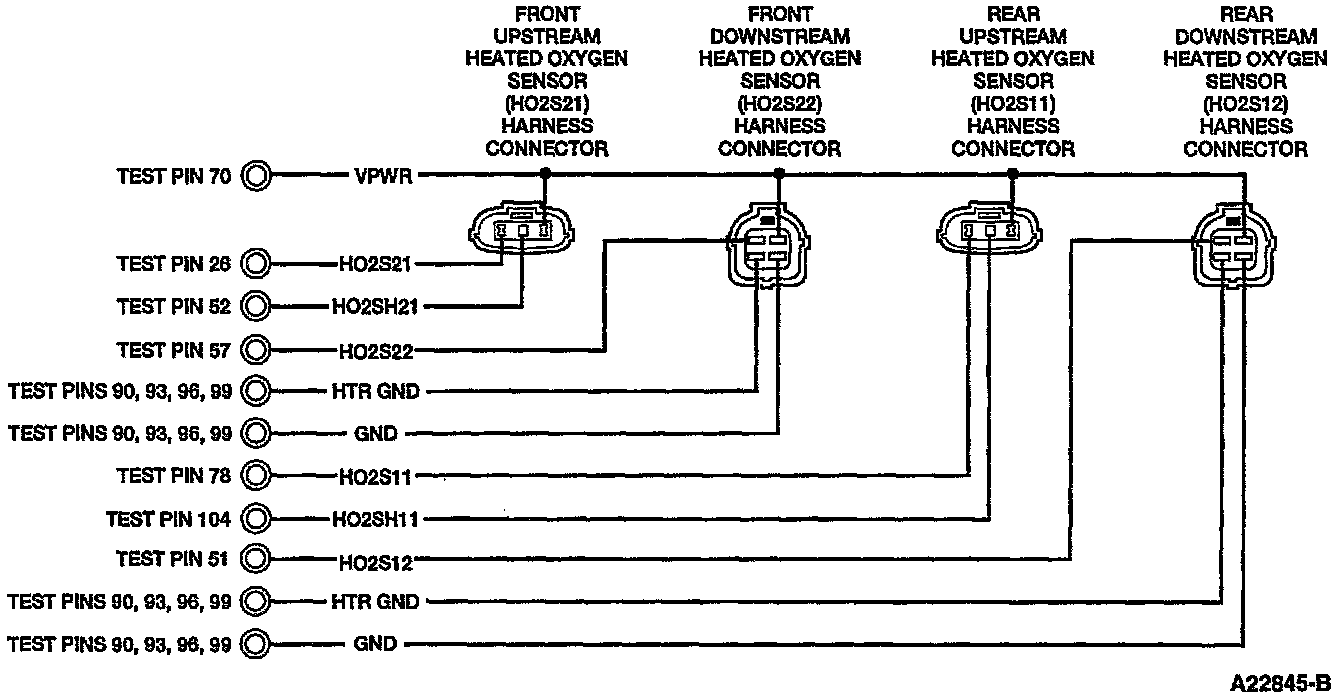

Fuel Injector And Heated Oxygen Sensor Harness Connectors:

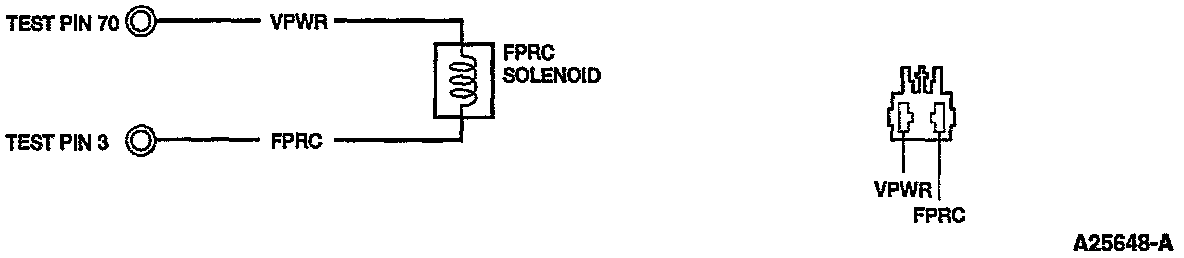

Fuel Pressure Regulator Control (FPRC) Solenoid Circuit And Harness Connector:
