With 4EAT Transaxle
NOTE:
Reference values shown may vary approximately +/- 2O percent depending on operating conditions and other factors.

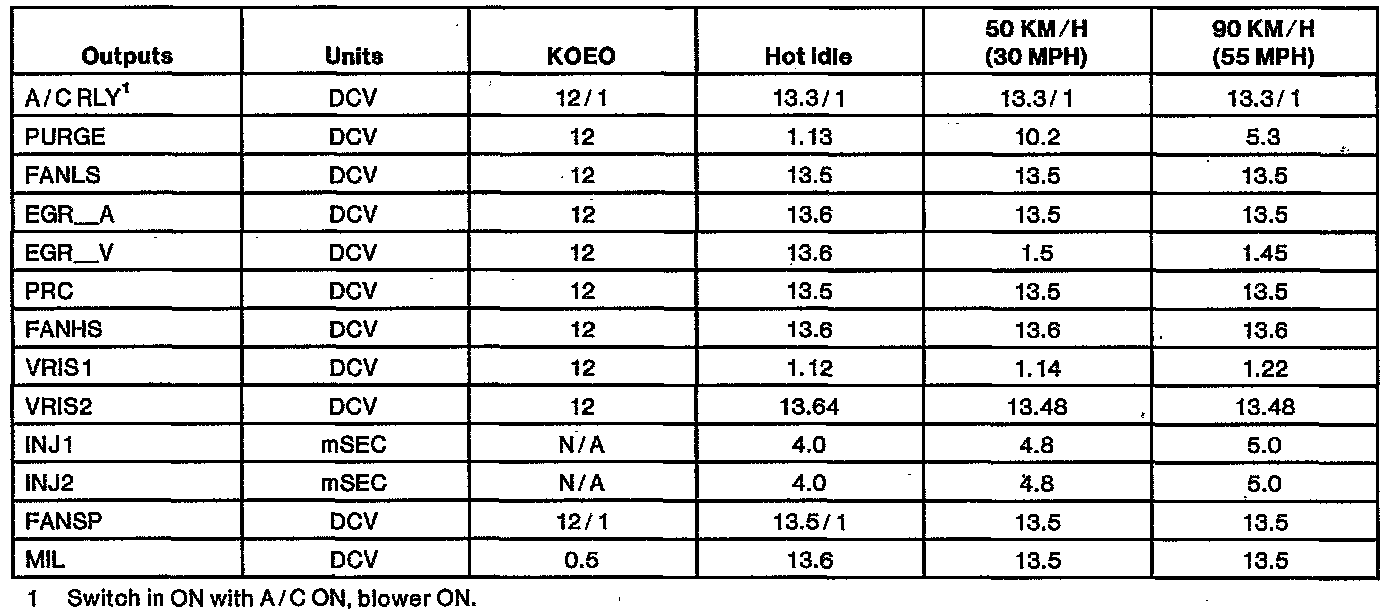

Diagnostic Reference Values (Breakout Box) W/4EAT:

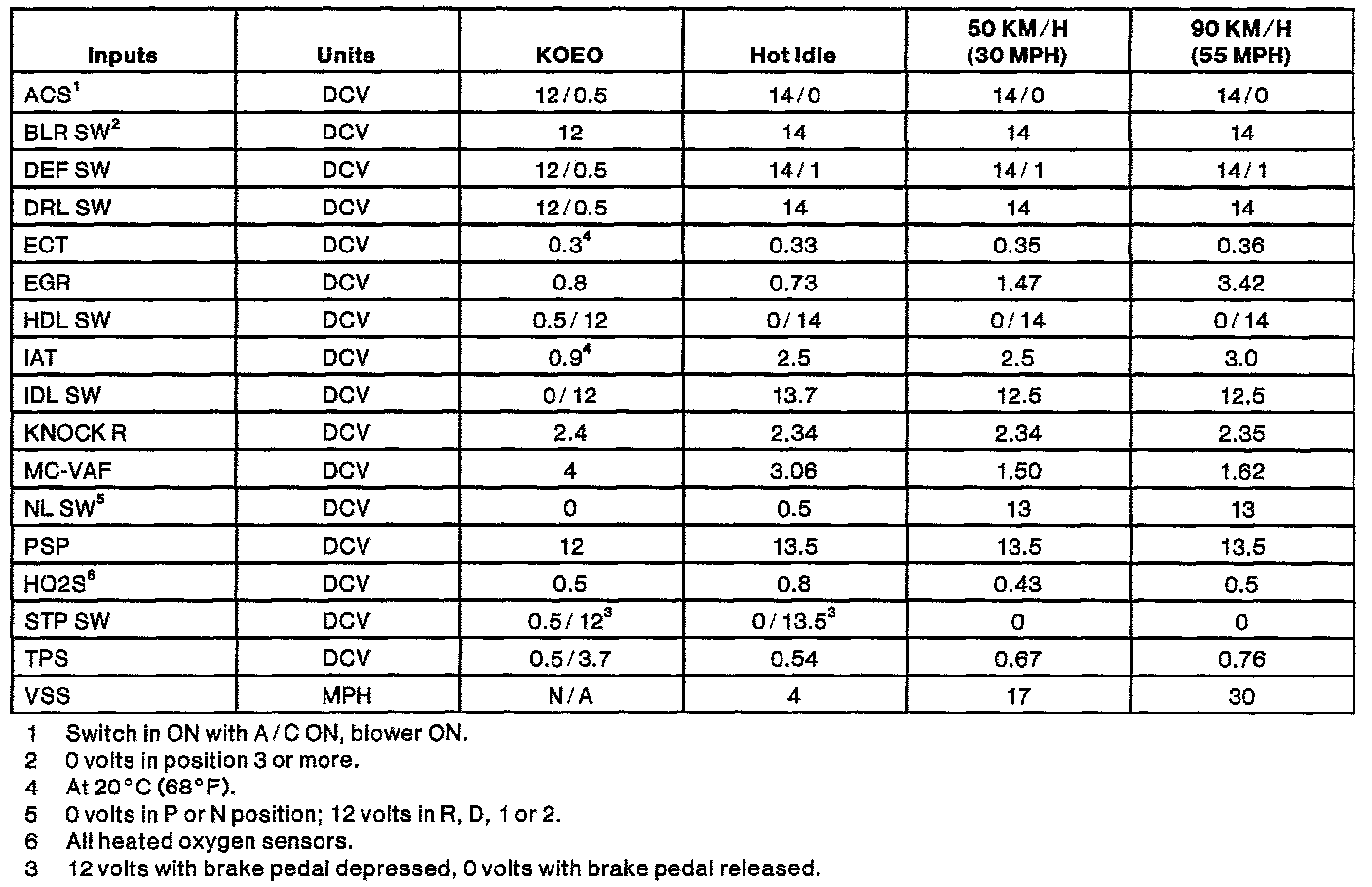

Diagnostic Reference Values (Breakout Box) W/4EAT:
