Generic Electronic Module

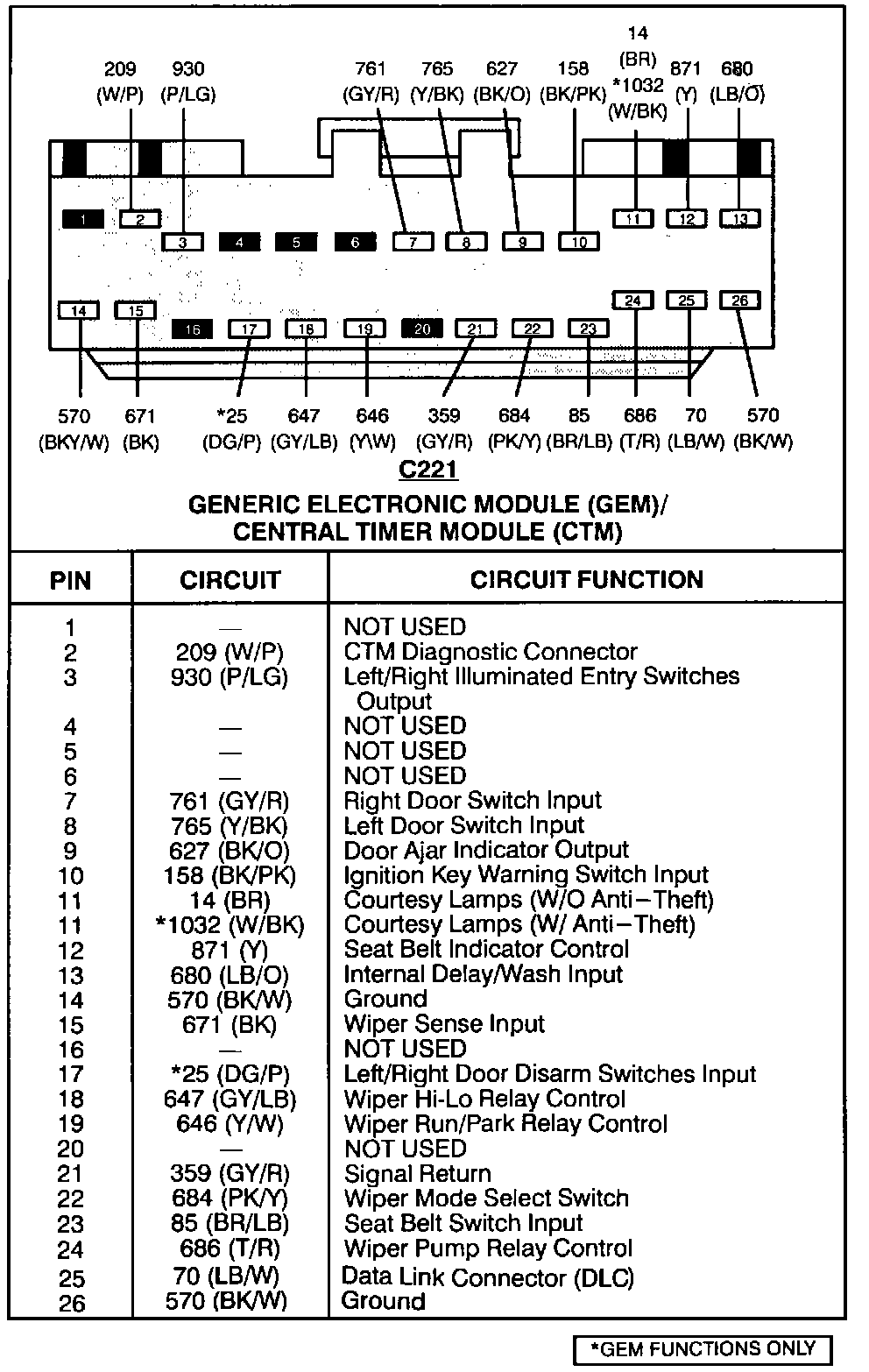

Generic Electronic Module/Central Timer Module C221:

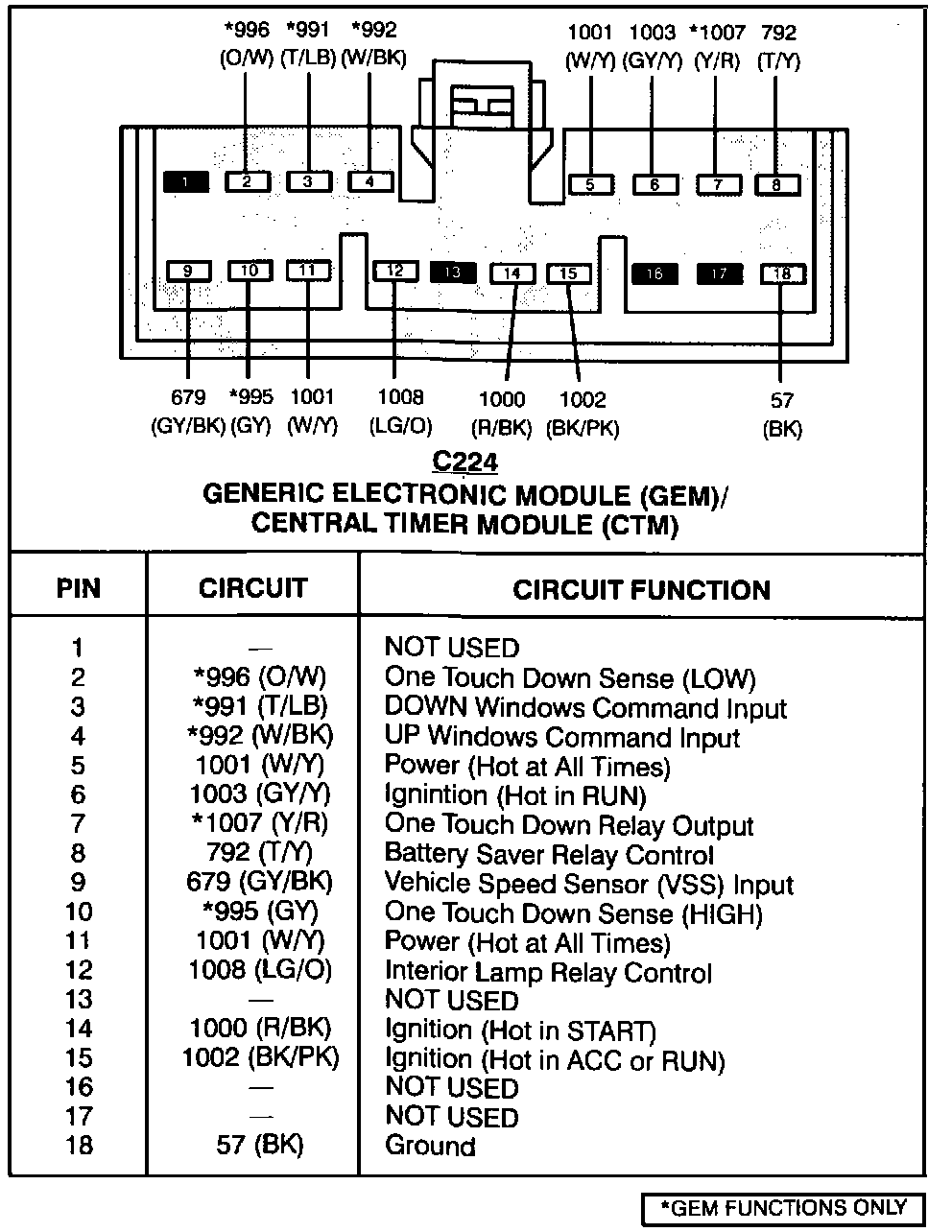

Generic Electronic Module/Central Timer Module C224:

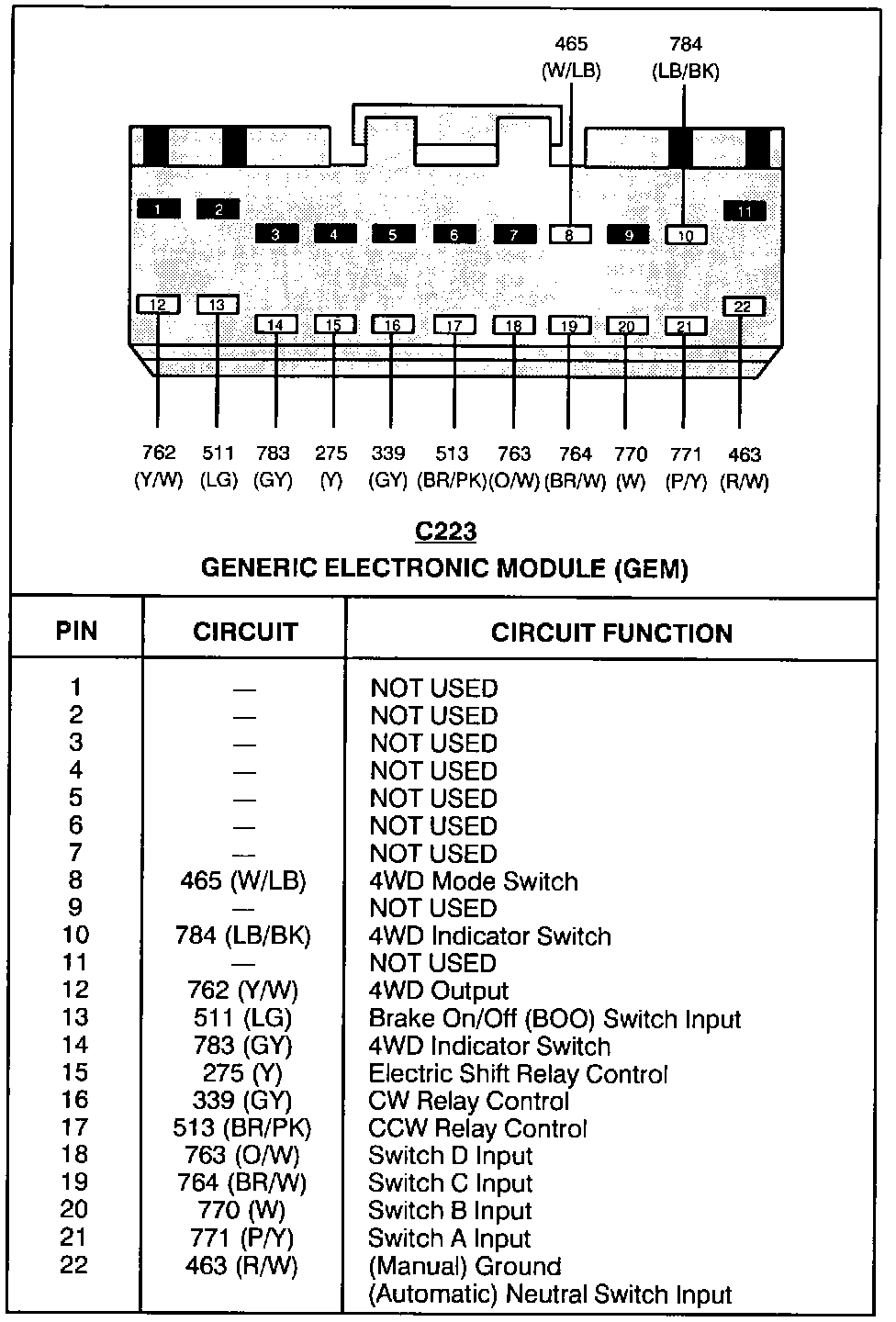

Generic Electronic Module C223:

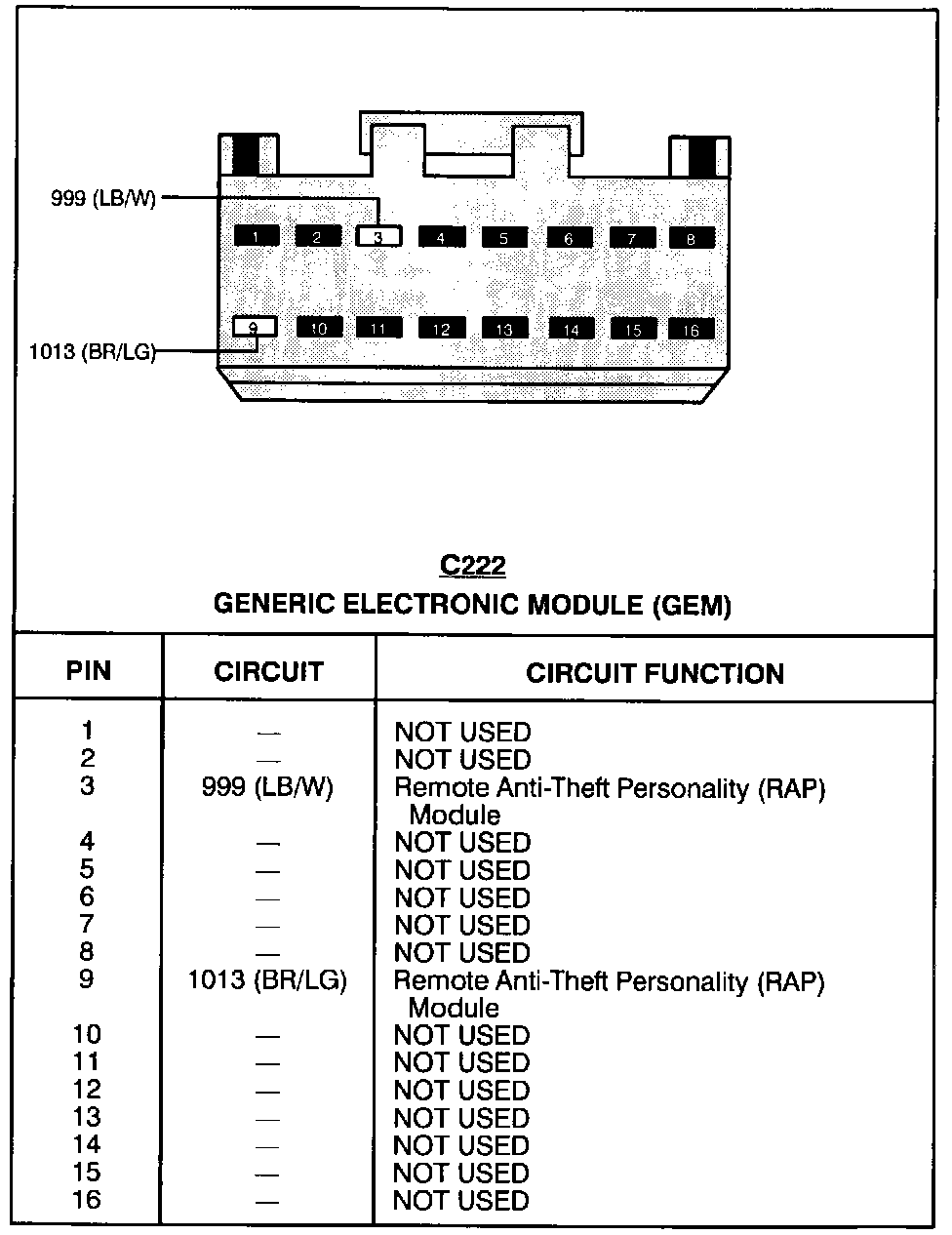

Generic Electronic Module C222:
