Power Window Control Module: Locations

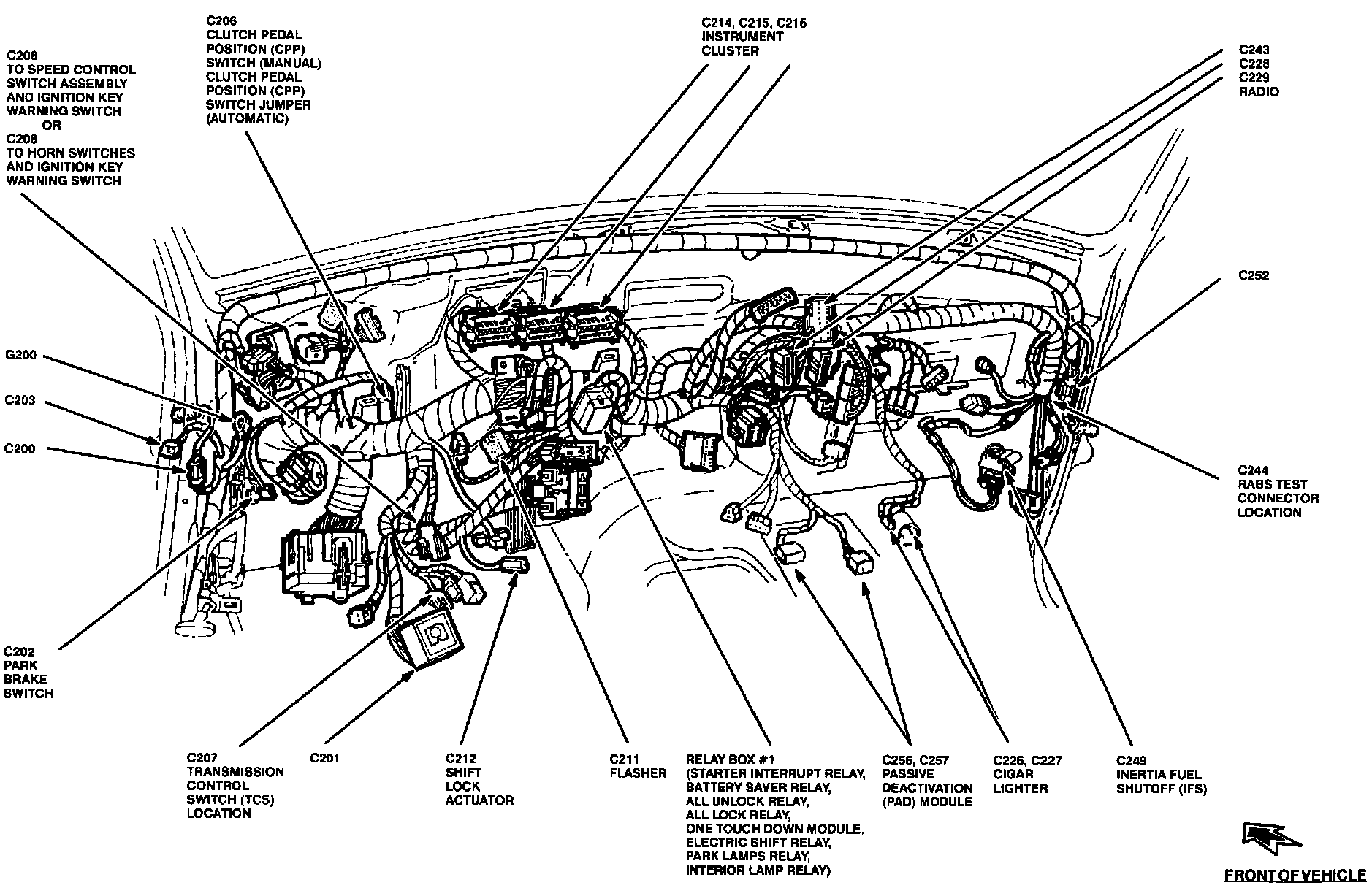

Behind Instrument Panel View:
The One Touch Down Module is located in the relay box #1.
