Home >> Ford >> 1996 >> Taurus V6-182 3.0L FF >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Engine Compartment Fuse/Relay Box
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

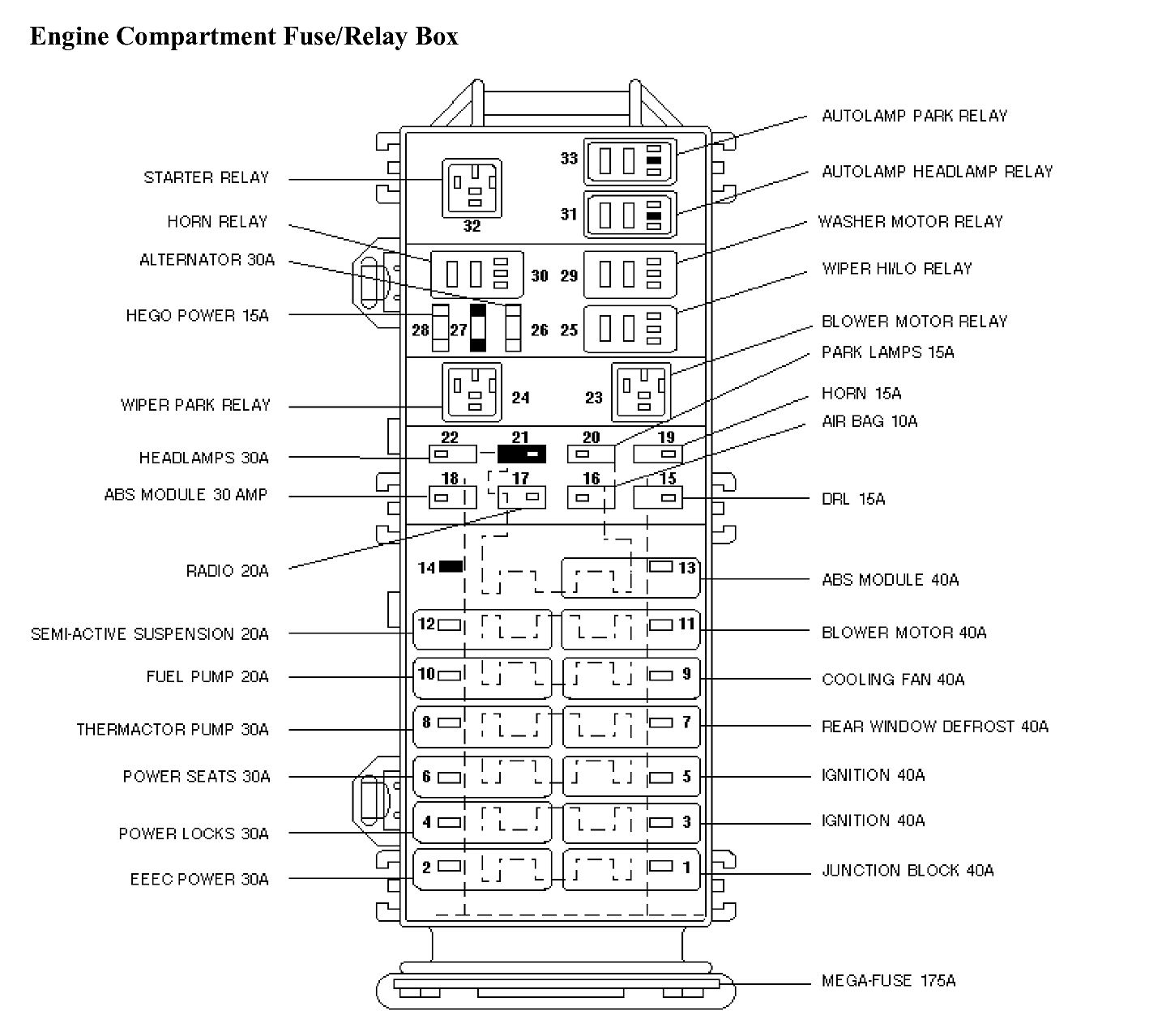

Engine Compartment Fuse/Relay Box
