Cruise Control Servo: Service and Repair

1. Disconnect actuator cable from throttle body lever.
2. Disconnect harness connector at servo.
3. Remove servo retaining bolt and slide servo out of actuator bracket.

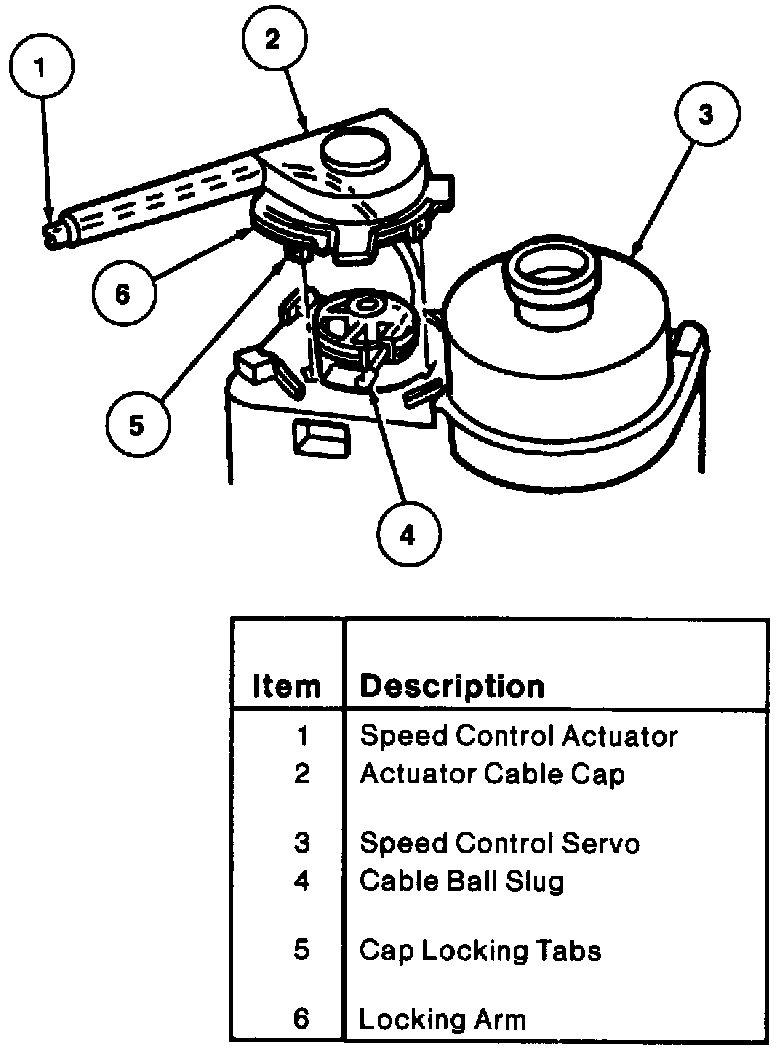

4. Remove actuator cable cap from servo by pressing cap locking arm and rotating cap counterclockwise.
5. Remove actuator cable slug from servo pulley. Gently push actuator cable slug past retaining spring using a small screwdriver.
6. Remove servo.
7. Reverse procedure to install.
