Electronic Brake Control Module: Service and Repair

1. Disconnect and remove battery from vehicle.
2. Remove battery tray and mounting bracket from vehicle.

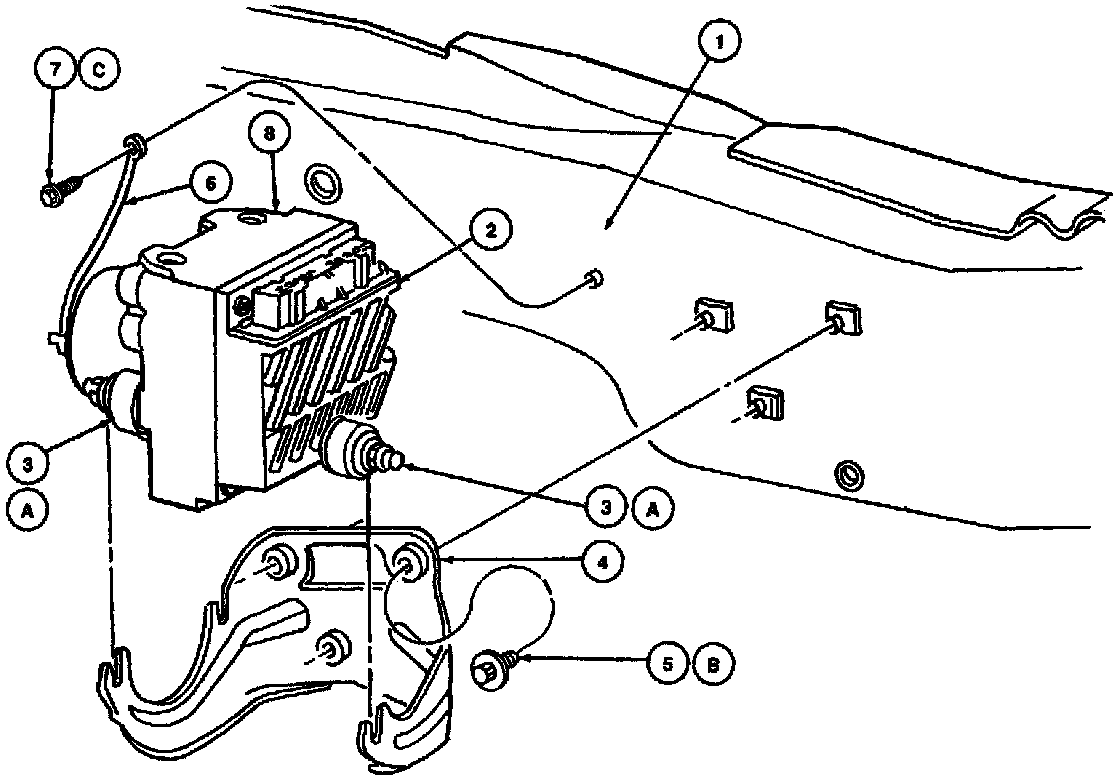

Fig. 115 ABS Module & Hydraulic Control Unit Assembly (Part 1 Of 2):

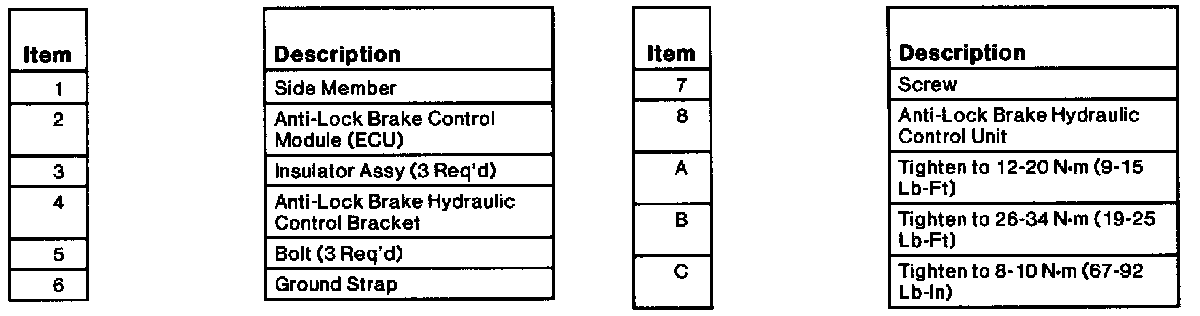

Fig. 115 ABS Module & Hydraulic Control Unit Assembly (Part 2 Of 2):

3. Disconnect Anti-Lock Brake System (ABS) control module electrical connector.
4. Remove inlet and outlet tubes from ABS Hydraulic Control Unit (HCU). Plug ports to prevent brake fluid from spilling onto paint and wiring.
5. Remove ABS pump motor and ground strap.
6. Remove ABS module assembly to HCU bracket retaining nuts.
7. Remove HCU and ABS control module assembly from vehicle.
8. Reverse procedure to install.
9. Torque HCU bracket mounting bolts to 19-25 ft lb.
10. Torque ABS module to HCU bracket retaining bolts to 12-18 ft lb.
11. Torque inlet and outlet tube fittings to 10-18 ft lb.
