Expanded Diagnostic Protocols Table

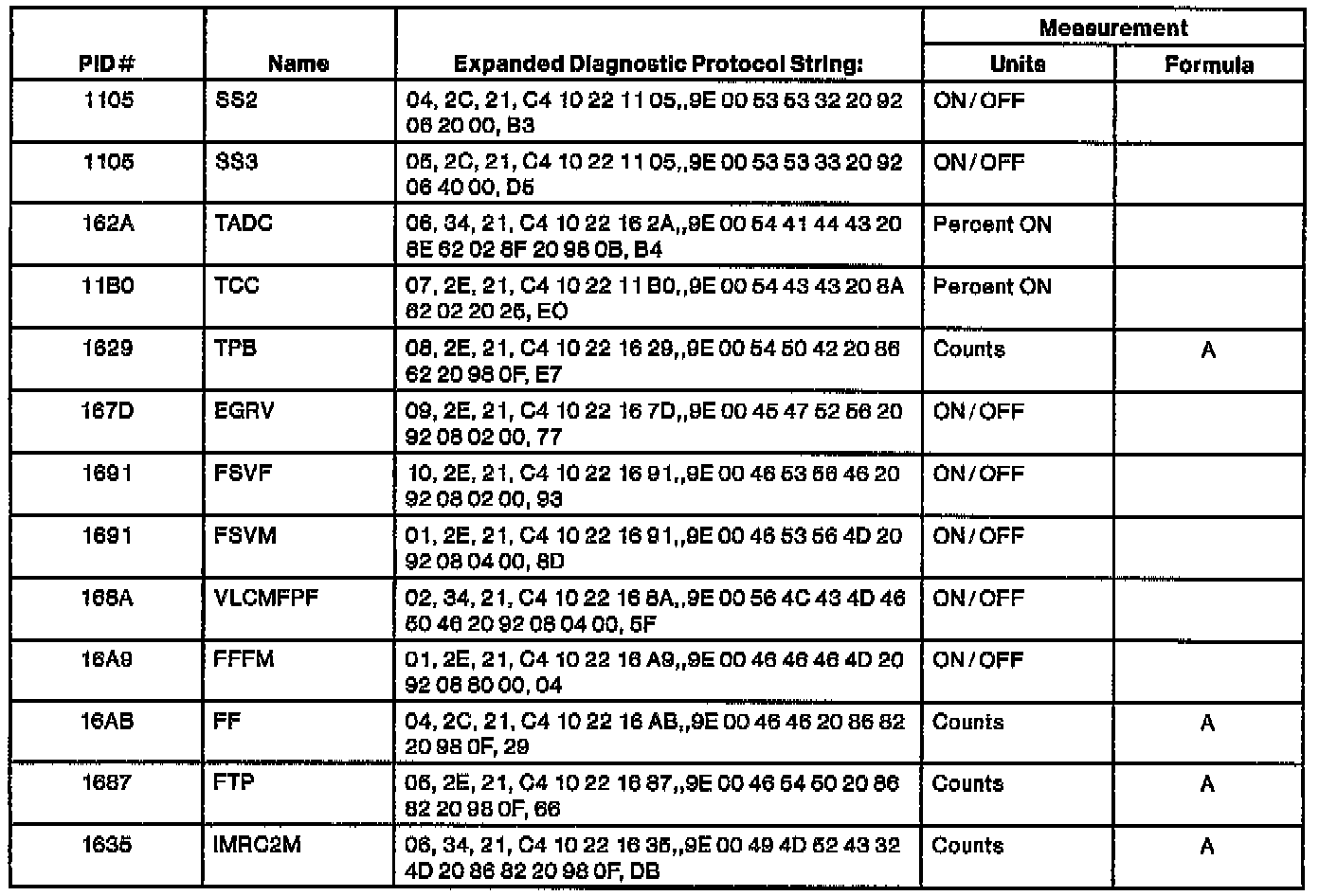

Expanded Diagnostic Protocol Table (Part 1 Of 2):

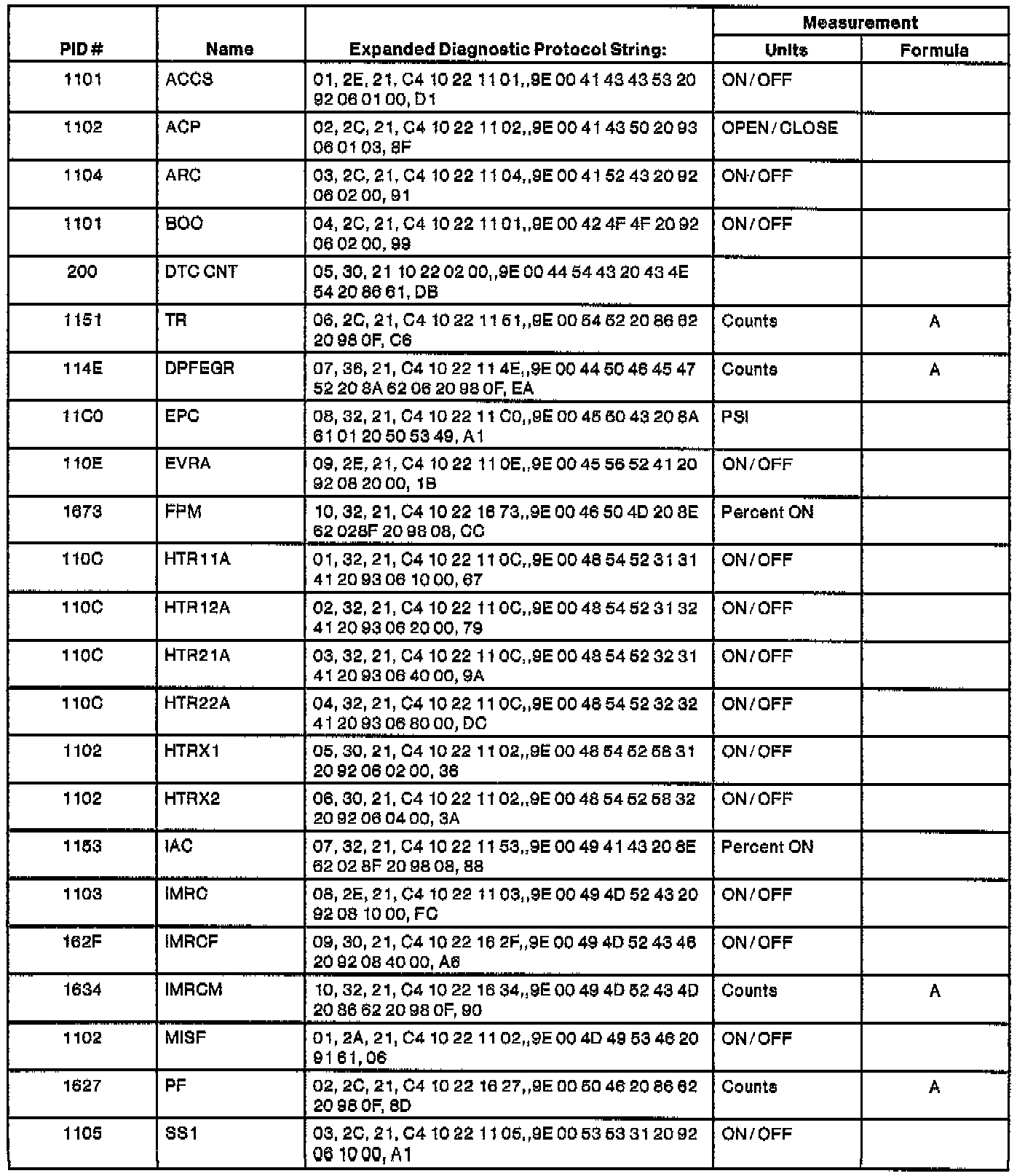

Expanded Diagnostic Protocol Table (Part 2 Of 2):

The table lists the string of characters entered in a generic scan tool when accessing the enhanced diagnostic PID information that may not be common on all OBD II vehicles.


NOTE: A formula may need to be performed on an Expanded Diagnostic Protocol PID for displaying a value in volts.

Formula Chart:

Example: 32000 Counts divided by 13107 = 2.44 Volts (scaled from 0 to 5)
