Keyless Entry Programming Connector: Locations

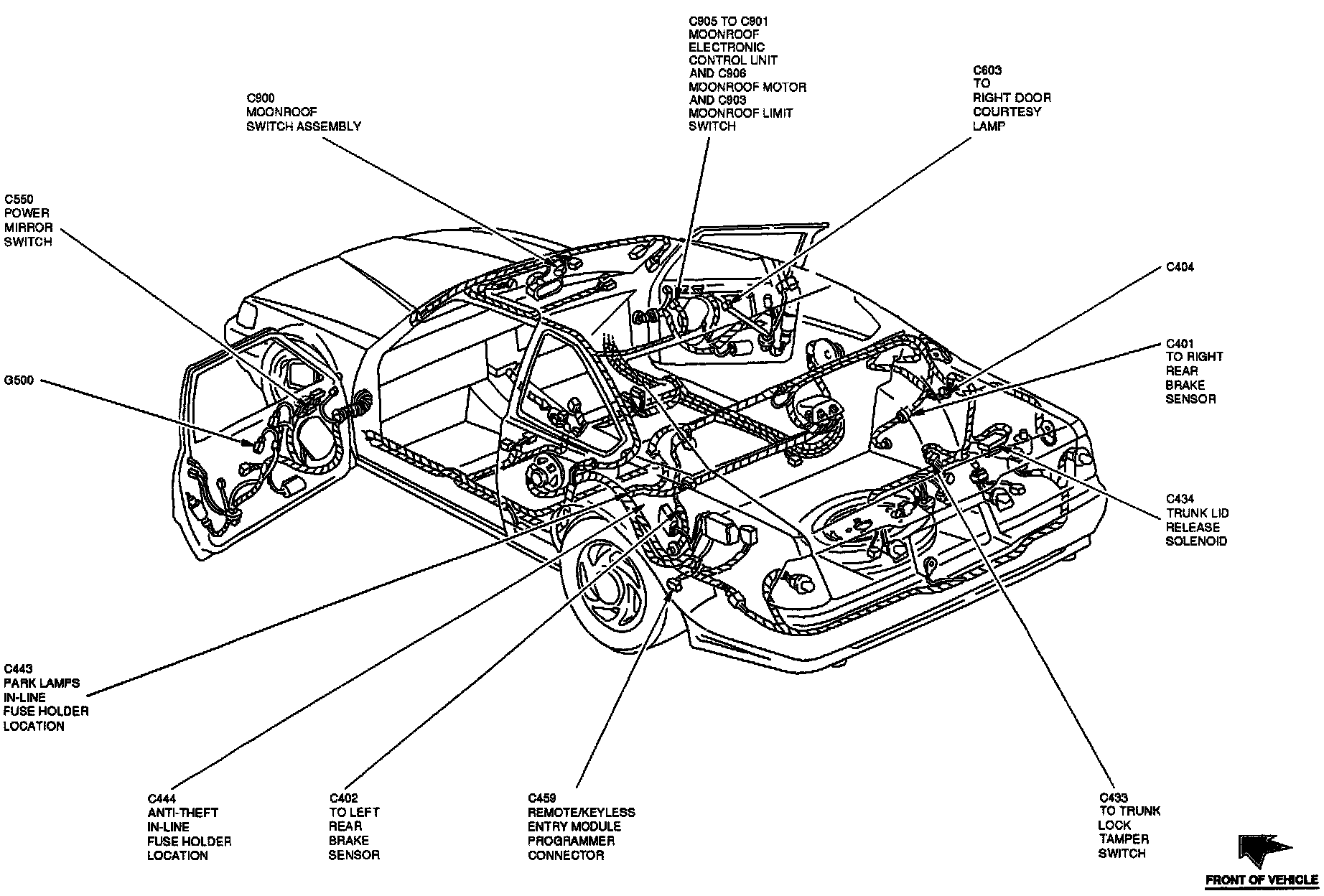

Full Body View:

The Program Connector is a two-pin connector located on LH side of luggage compartment, near remote entry module, above the wheel well, in the trim panel assembly.
