EGR Backpressure Transducer: Service and Repair

Removal and Installation

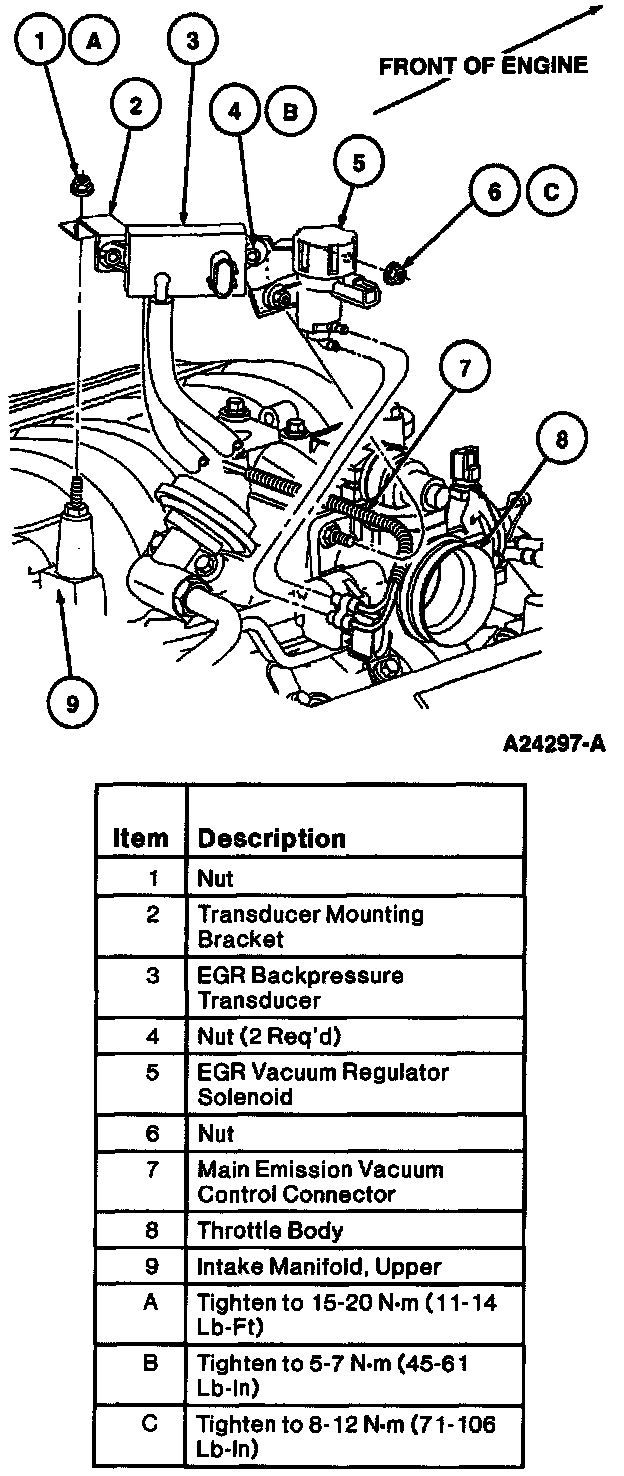

1. Disconnect fuel charging wiring from EGR backpressure transducer.

2. Disconnect EGR backpressure transducer hoses from EGR backpressure transducer.

3. Remove EGR backpressure transducer retaining nuts and EGR backpressure transducer from transducer mounting bracket.

4. If necessary, remove the EGR vacuum regulator solenoid and the transducer mounting bracket from the upper intake manifold.

5. To install, reverse removal procedure. Tighten EGR backpressure transducer retaining nuts to 5-7 Nm (45-61 lb.in).
