A/T Torque Data

4R70W 4-spd A/T, Transmission Torque:

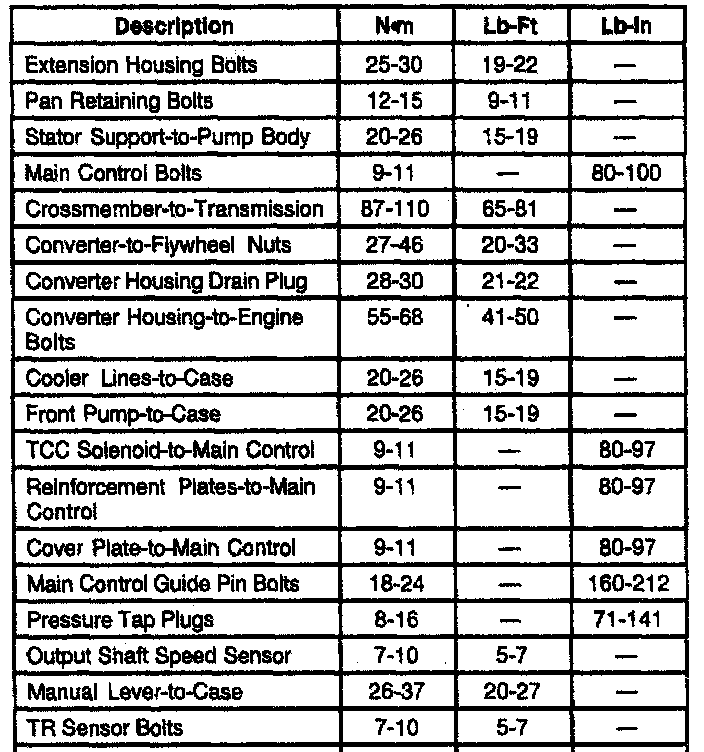

4R70W 4-spd A/T, Transmission Assembly:

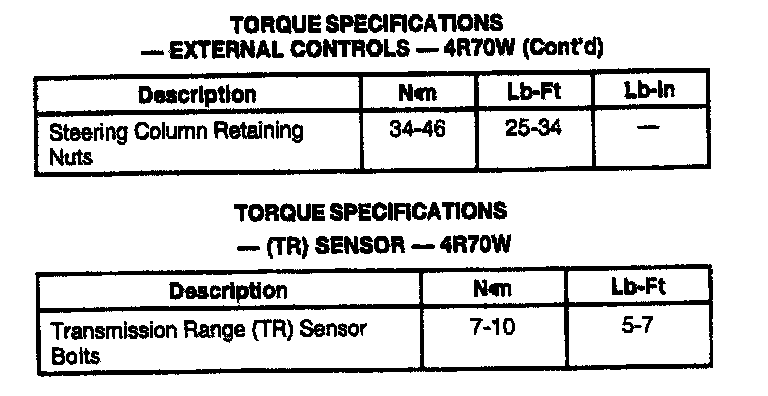

4R70W 4-spd A/T, Cooling/External Controls/Sensors:

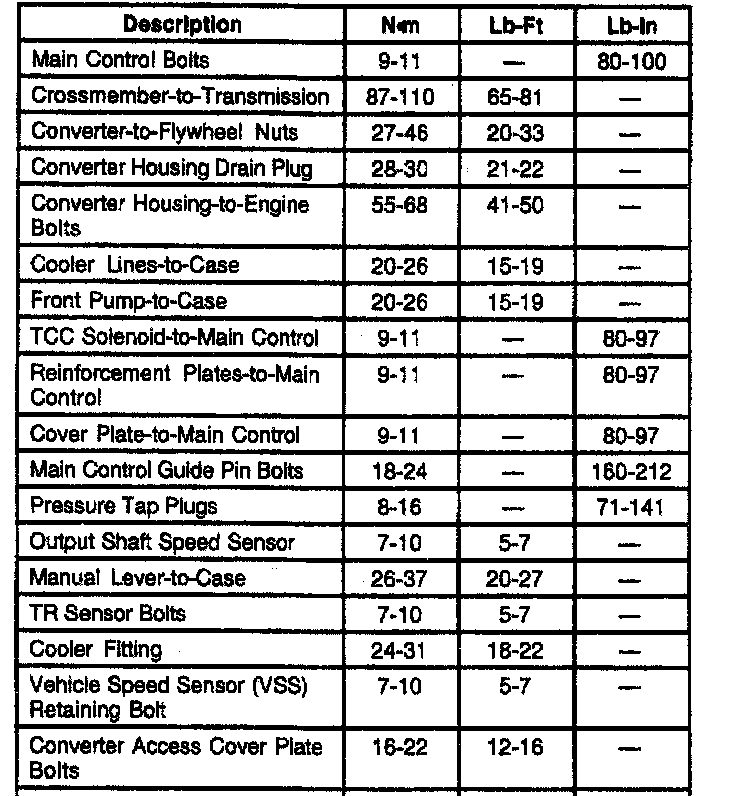

4R70W 4-spd A/T, Transmission Assembly (Mustang):





4R70W 4-spd A/T, Transmission Assembly (Mustang):

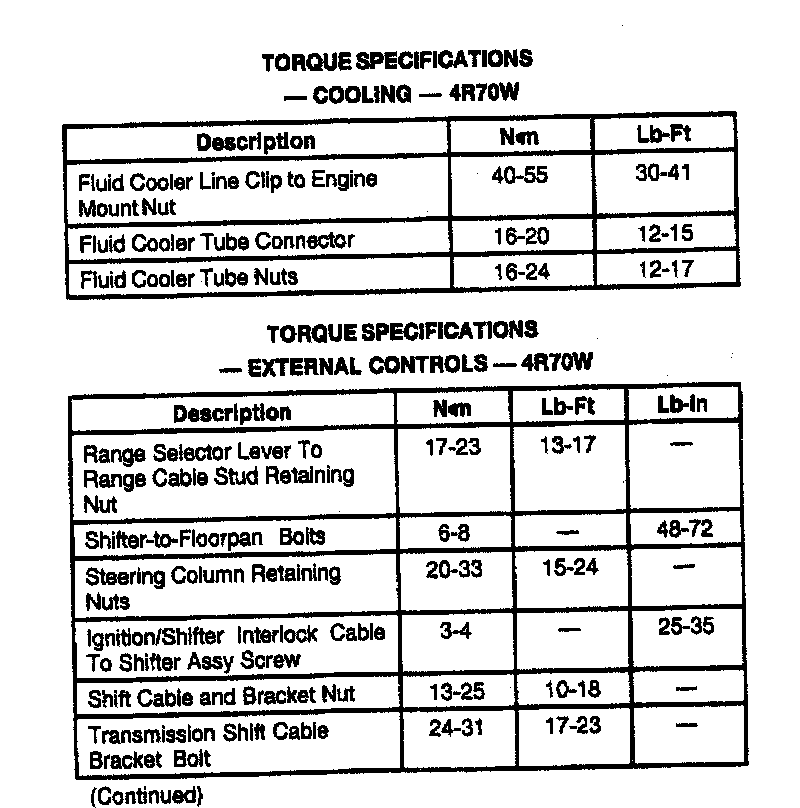

4R70W 4-spd A/T, Cooling/External Controls (Mustang):

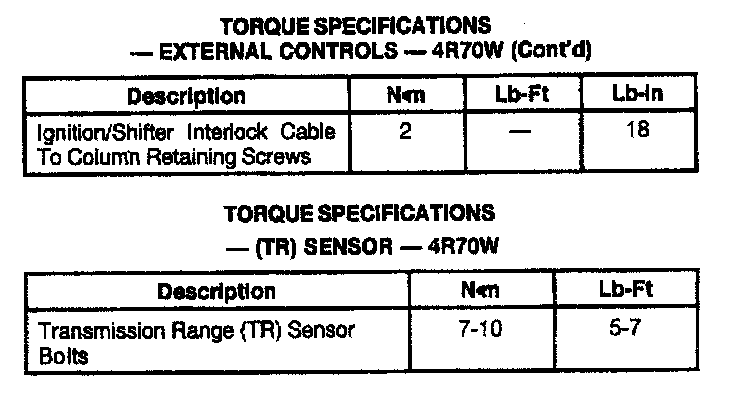

4R70W 4-spd A/T, External Control/Sensor (Mustang):

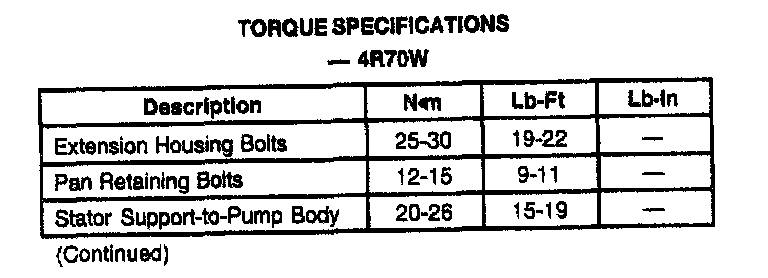

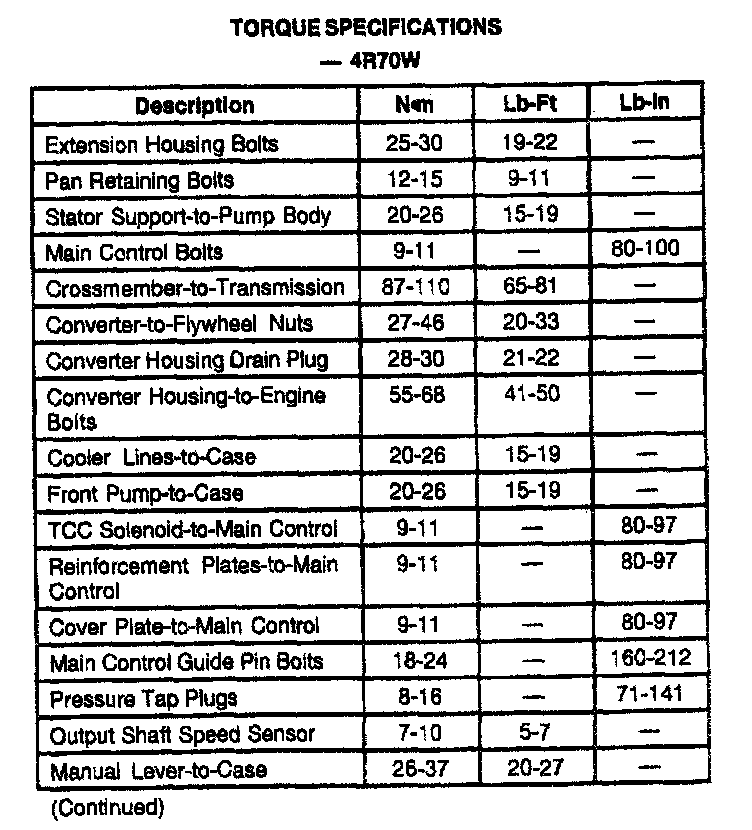

4R70W 4-spd A/T, Transmission Assembly (T-bird/Cougar):




4R70W 4-spd A/T, Transmission Assembly (T-bird/Cougar):

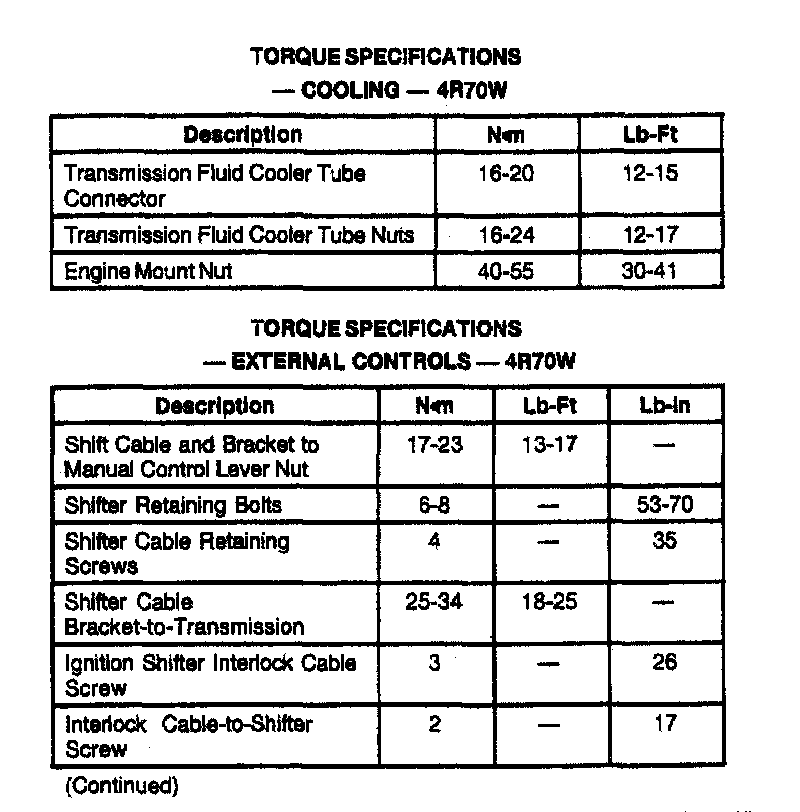

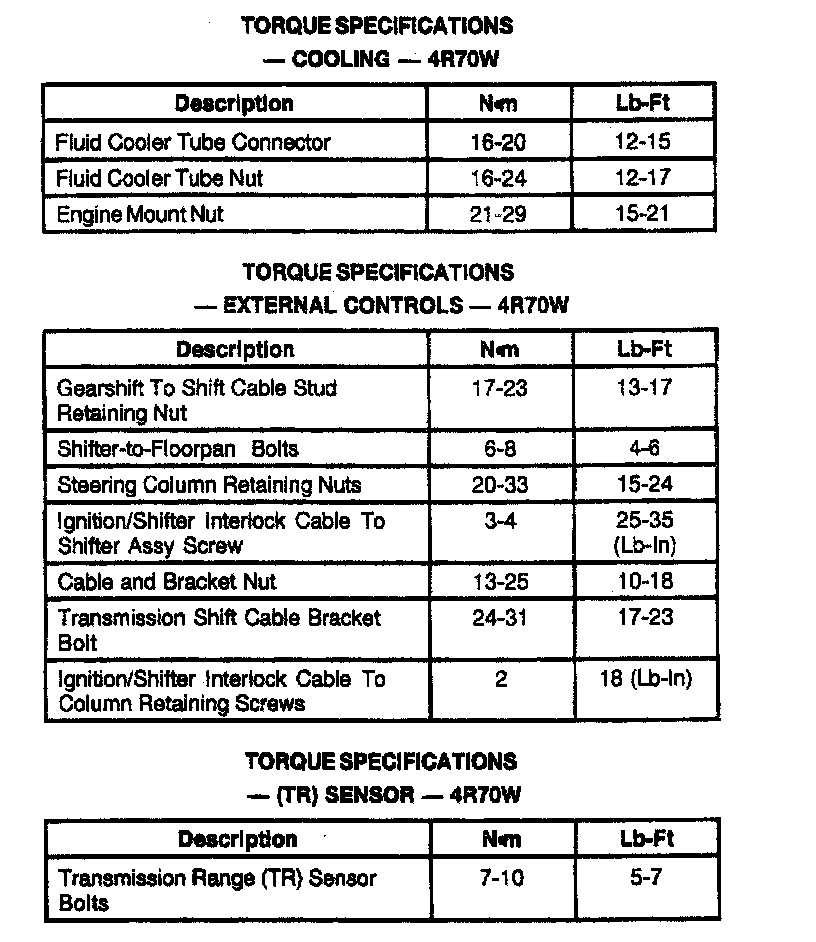

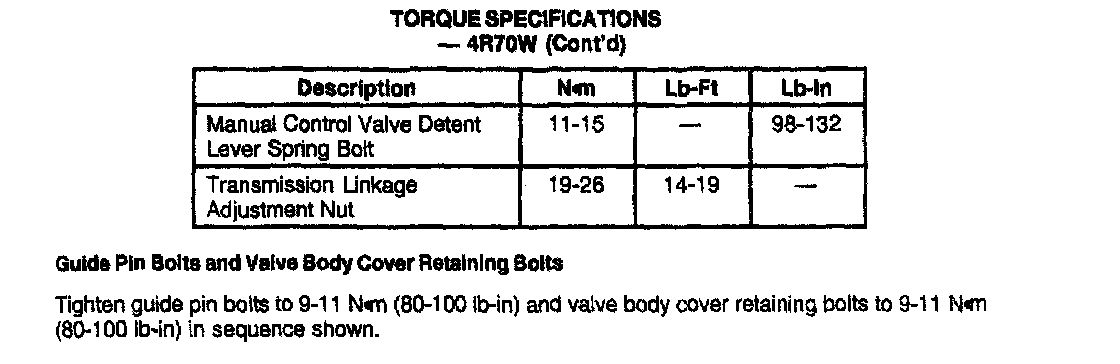

4R70W 4-spd A/T, Cooling/External Controls (T-bird/Cougar):




4R70W 4-spd A/T, External Controls/Sensor (T-bird/Cougar):

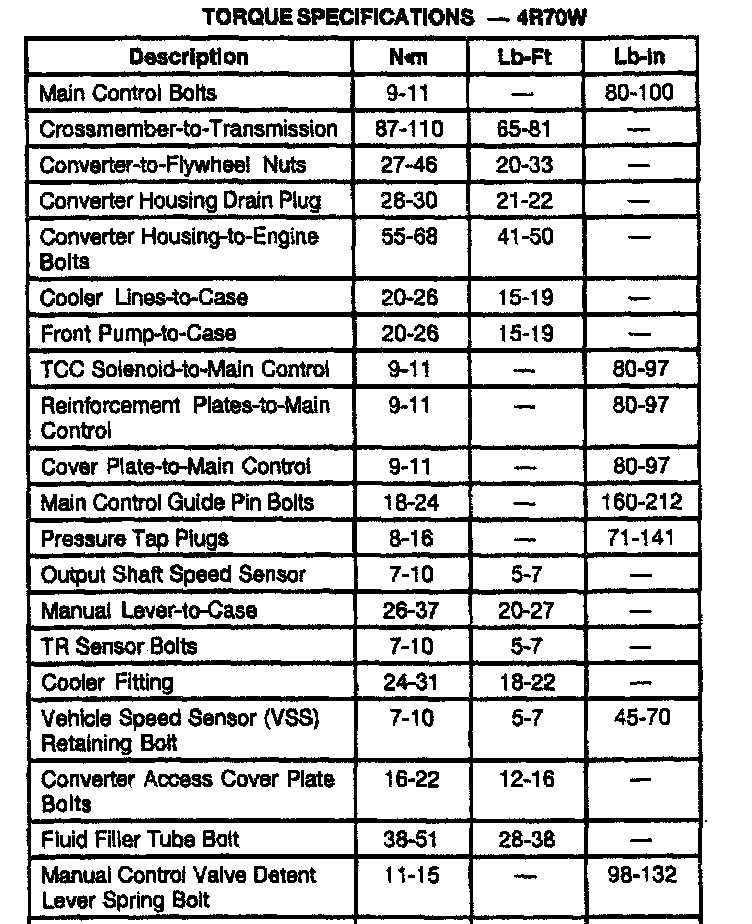

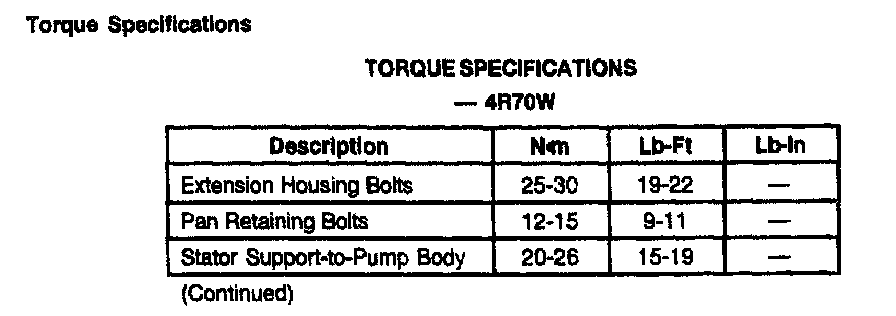

4R70W 4-spd A/T, Transmission Assembly (T.C/Crown Vic/G. Marquis):

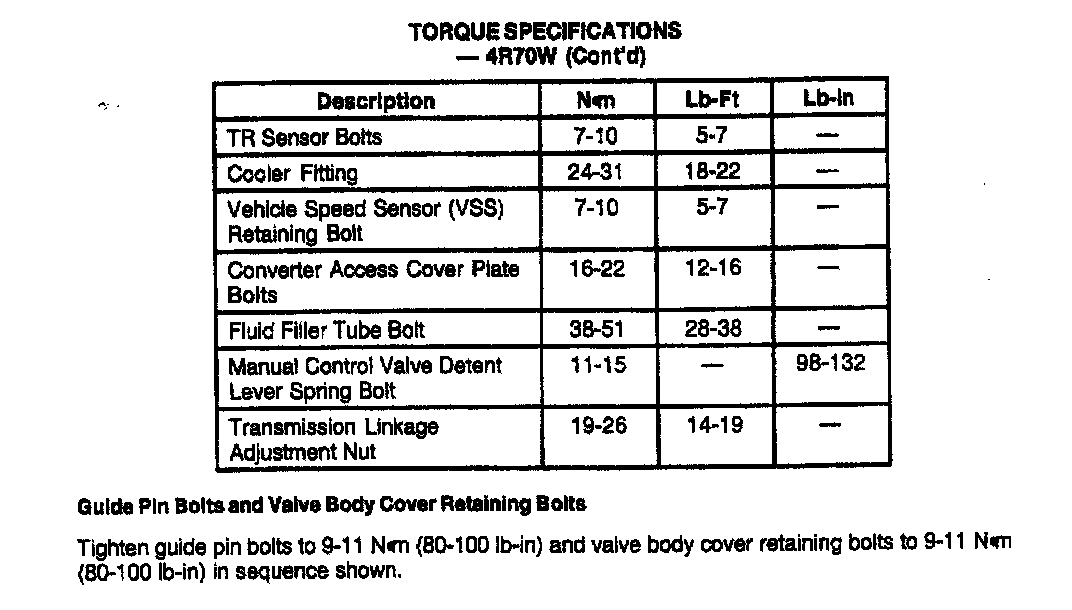

4R70W 4-spd A/T, Transmission (Town Car/Crown Vic/Grand Marquis):

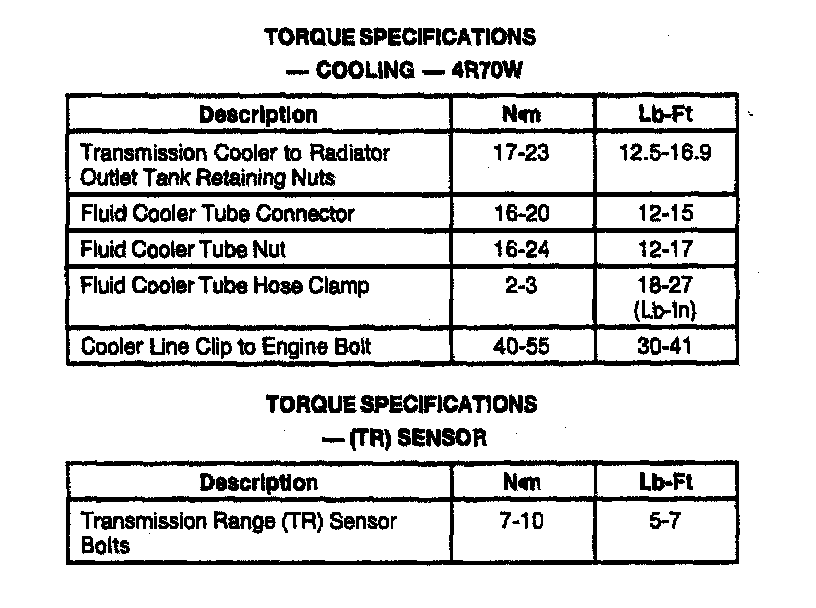

4R70W 4-spd A/T, Cooling/Sensor (Town Car/Crown Vic/G. Marquis):
