Constant Control Relay Module (CCRM)

NOTE: CCRM is located in left side, front of engine compartment. See Figure or Fig 1 .

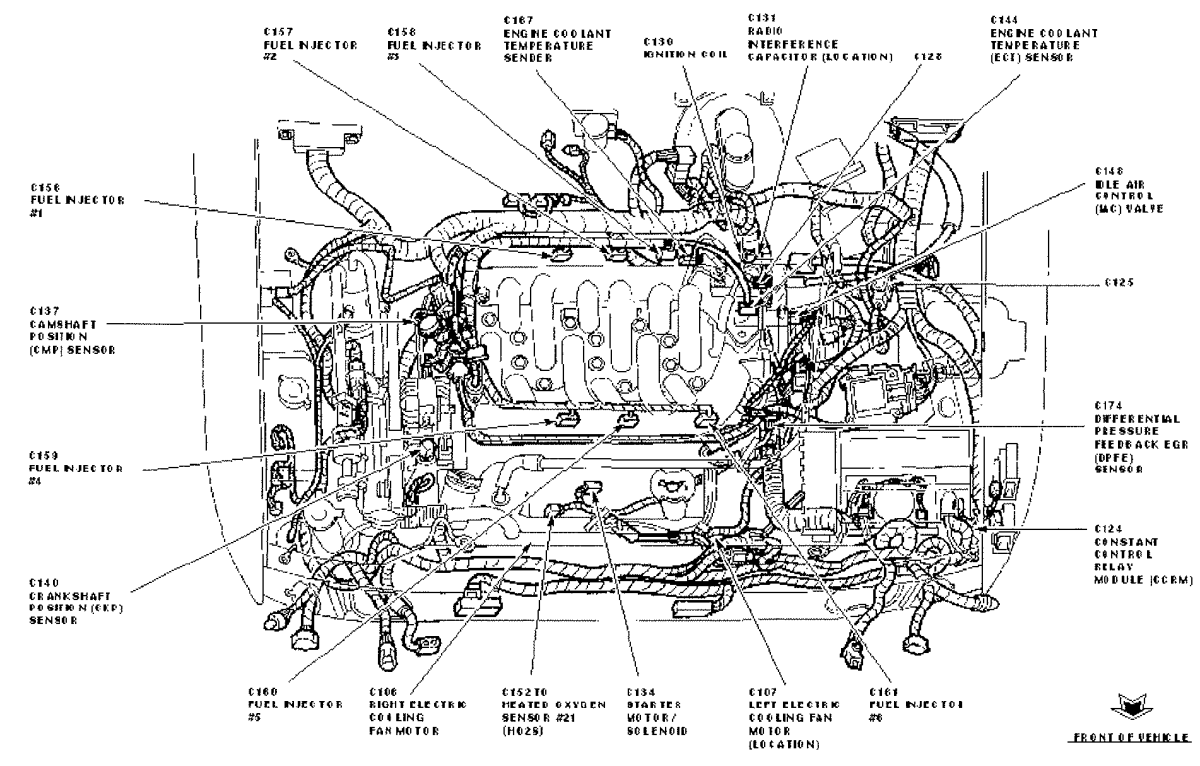

Fig 1: Locating Engine Compartment Electrical Components (3.8L)

Courtesy of FORD MOTOR CO.
