Power Window Relay: Locations

Behind Instrument Panel View:

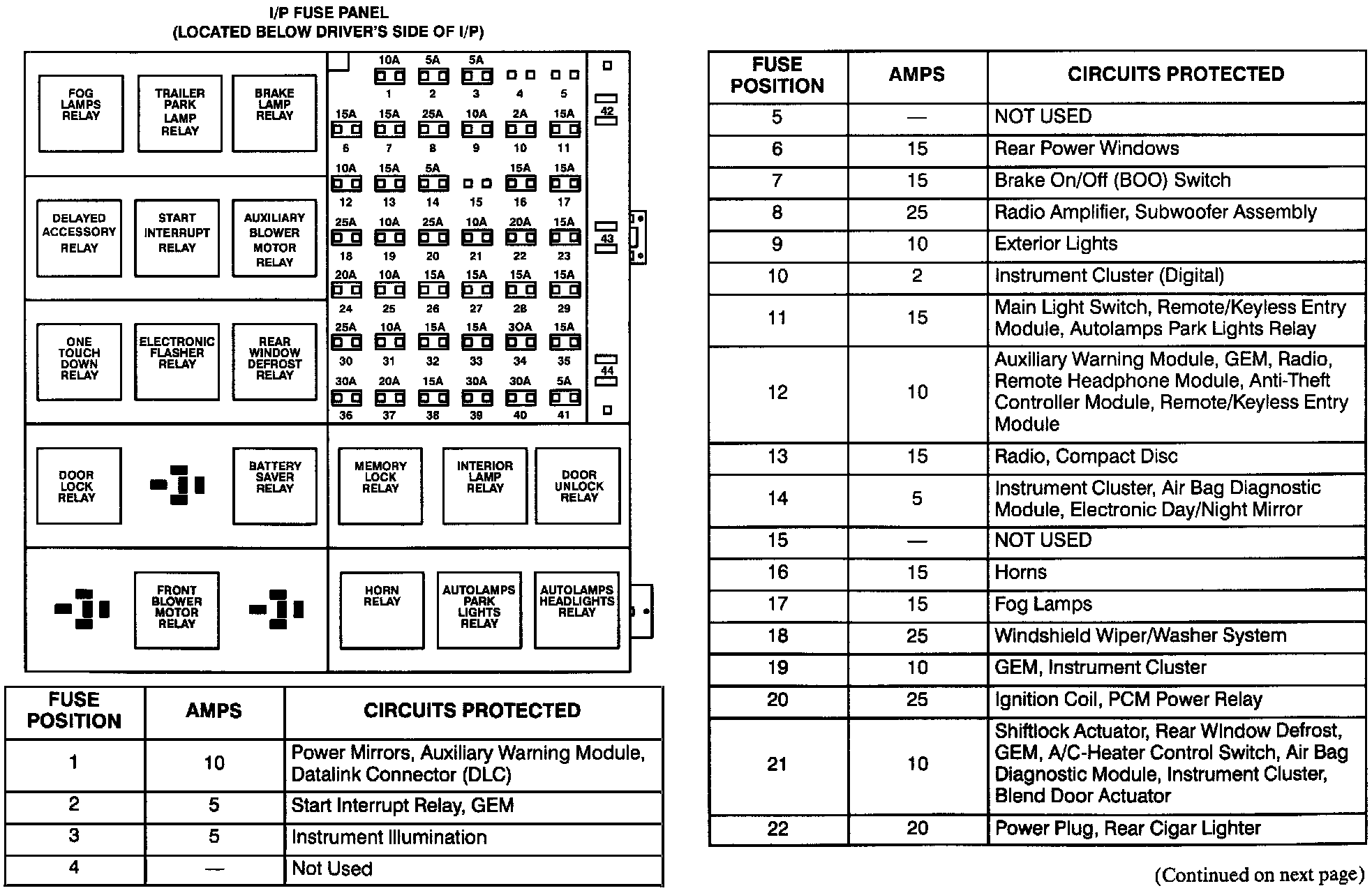

Instrument Panel Fuse Panel (Part 1 Of 2):





The One Touch Down Relay is located in instrument panel fuse panel.
