Symptom Testing: Notes

NOTE: To determine appropriate test, see SYMPTOM CHART TABLE. Unless otherwise directed, perform tests in order listed.

Verify the customer complaint by operating power seat. Visually inspect for obvious sign of mechanical and electrical damage. If no visual damage is evident, go to SYMPTOM CHART TABLE. A digital volt-ohmmeter is required to test the power seat system. See WIRING DIAGRAMS for pin numbers. These connectors are identified in illustration. See Figure -9.

Fig 1: Identifying Memory Control Module Harness Connectors (Explorer & Mountaineer) Connector C335

Courtesy of FORD MOTOR CO.

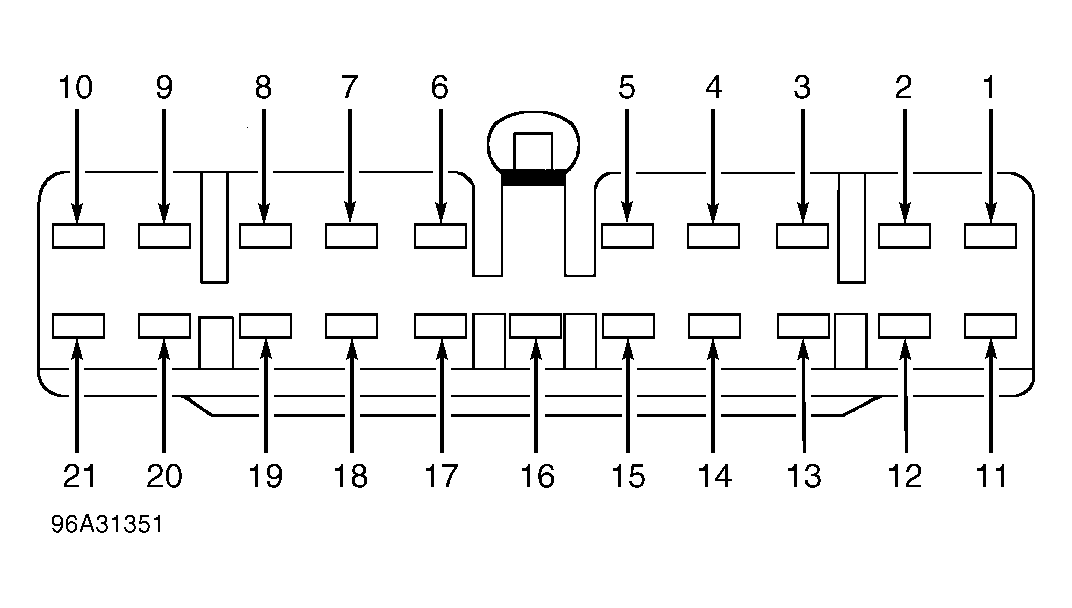

Fig 2: Identifying Memory Control Module Harness Connectors (Explorer & Mountaineer) Connector C351

Courtesy of FORD MOTOR CO.

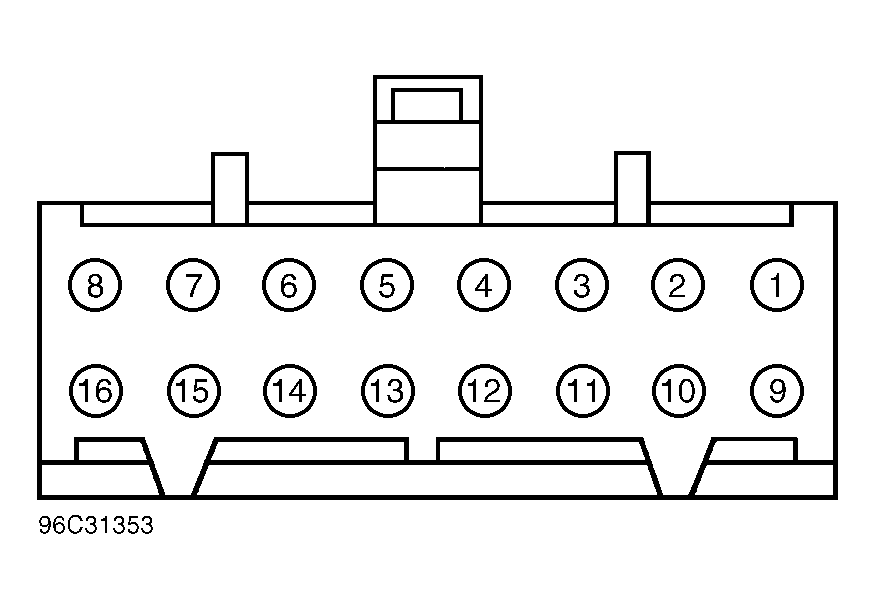

Fig 3: Identifying Memory Control Module Harness Connectors (Explorer & Mountaineer) Connector C352

Courtesy of FORD MOTOR CO.

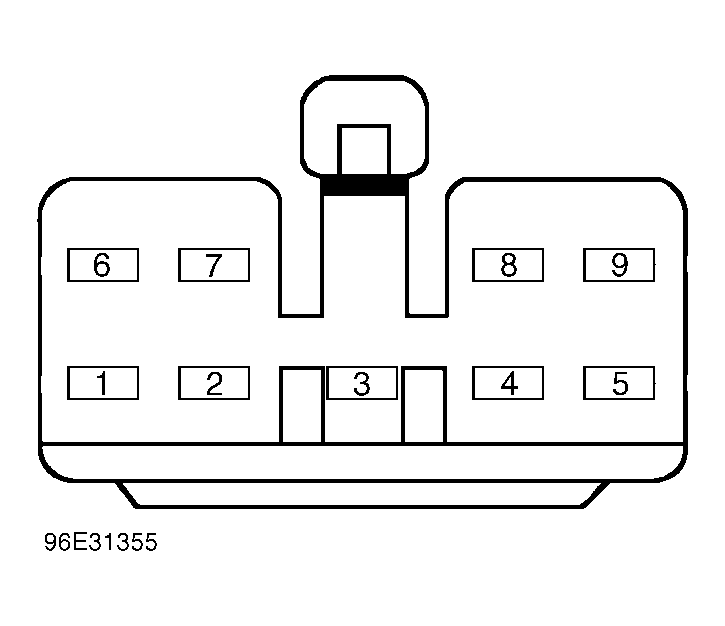

Fig 4: Identifying Memory Control Module Harness Connectors (Explorer & Mountaineer) Connector C350

Courtesy of FORD MOTOR CO.

SYMPTOM CHART

Symptom

Go To Test

Power Seat Completely Inoperative

⁽¹⁾ A

Power Seat Noisy

Power Seat Loose

Power Seat Operation Incomplete

Power Seat Does Move Horizontally or Vertically

Power Lumbar Seat Inoperative

Memory Seat Inoperative

⁽¹⁾	If equipped with memory seat, perform TEST G .
