Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

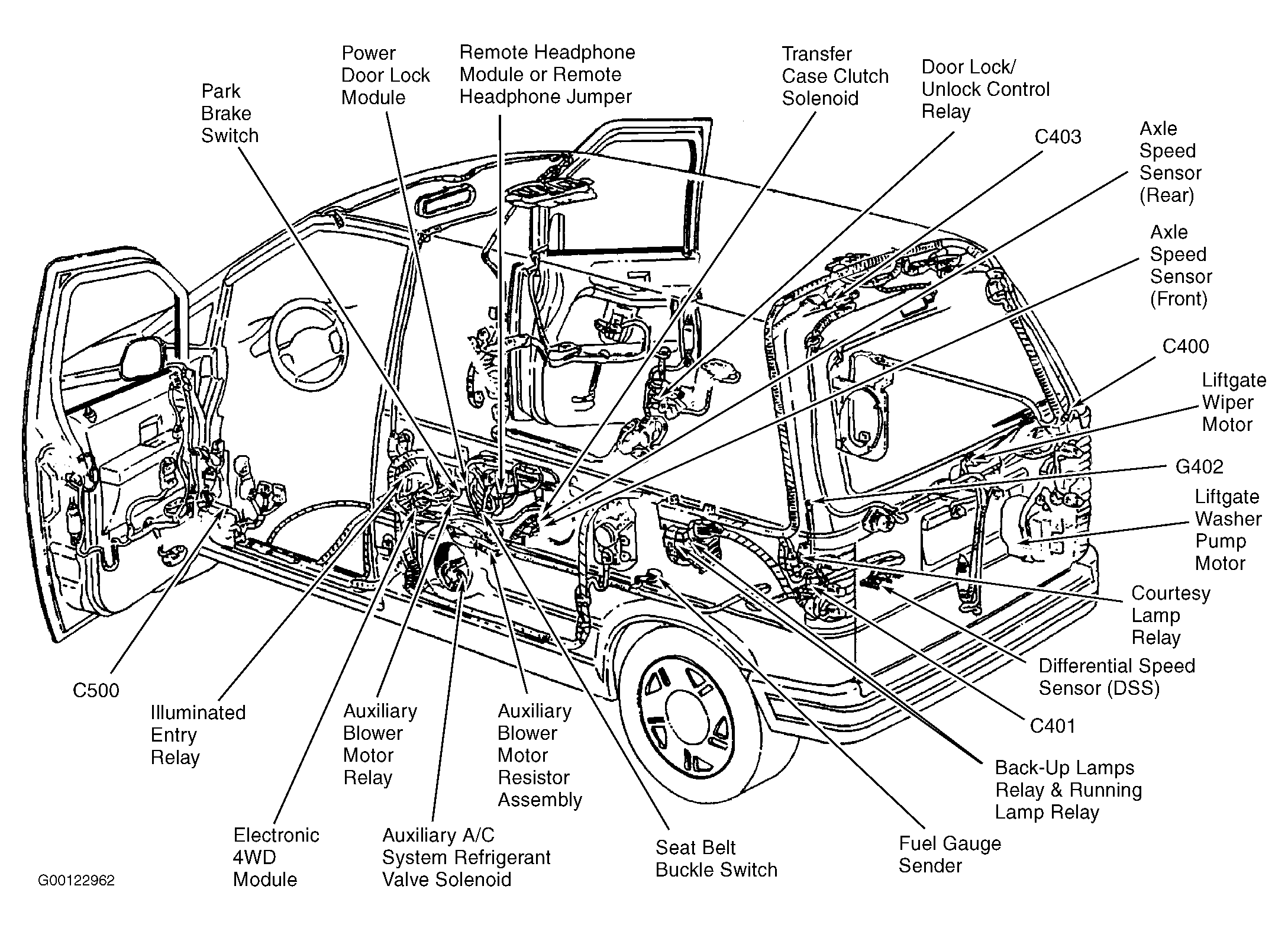

Fig 1: Vehicle Overview

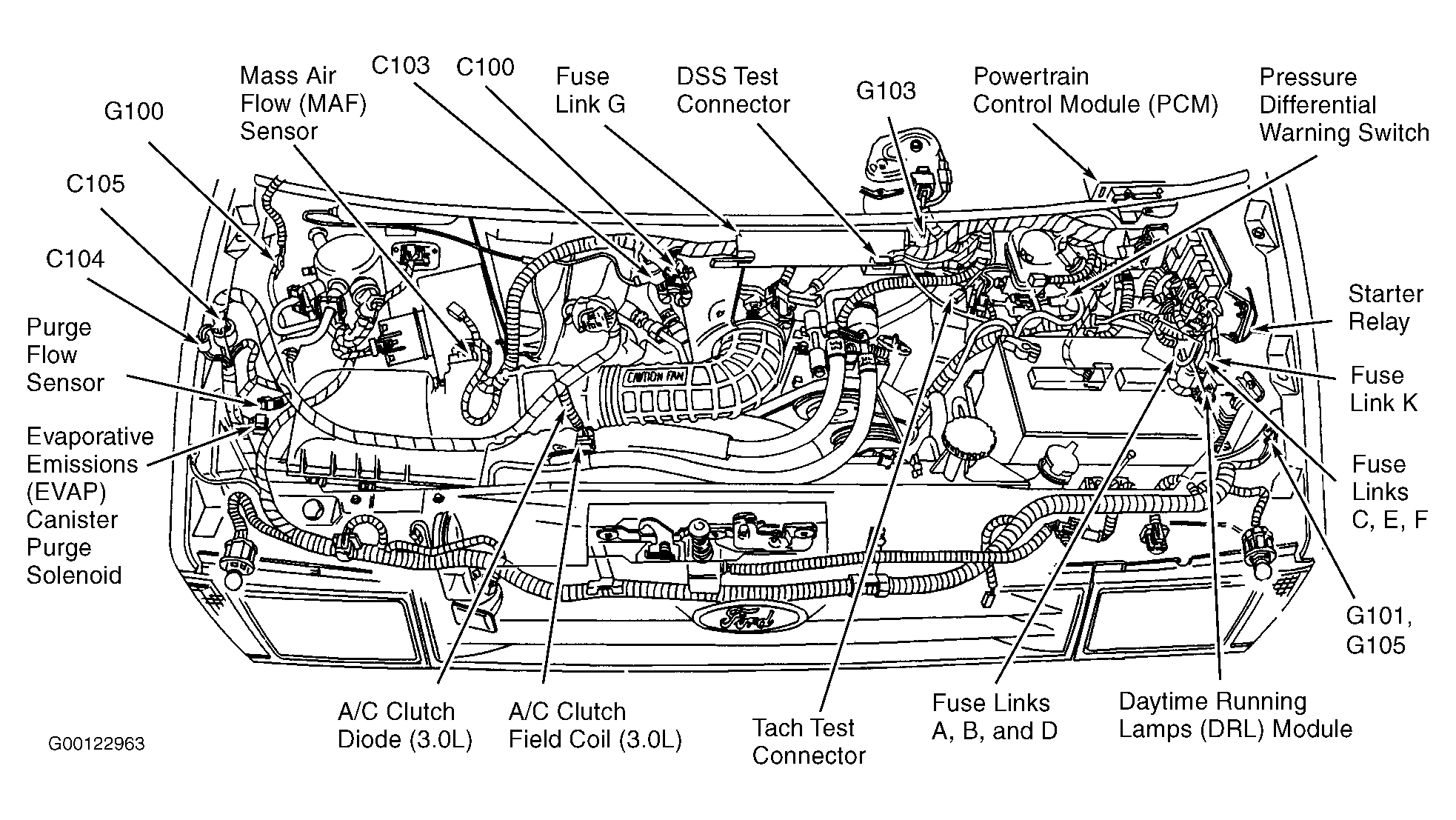

Fig 2: Engine Compartment

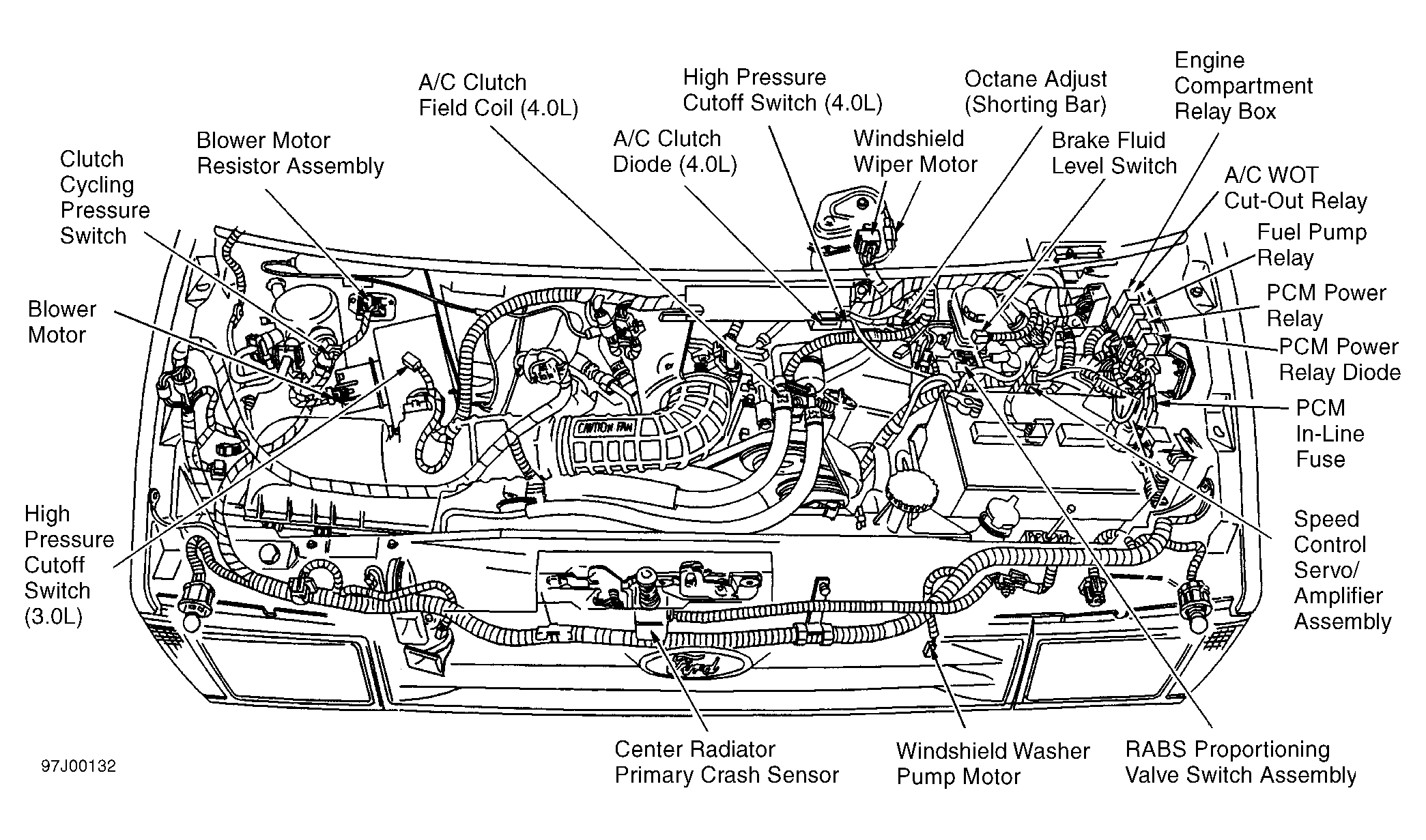

Fig 3: Engine Compartment

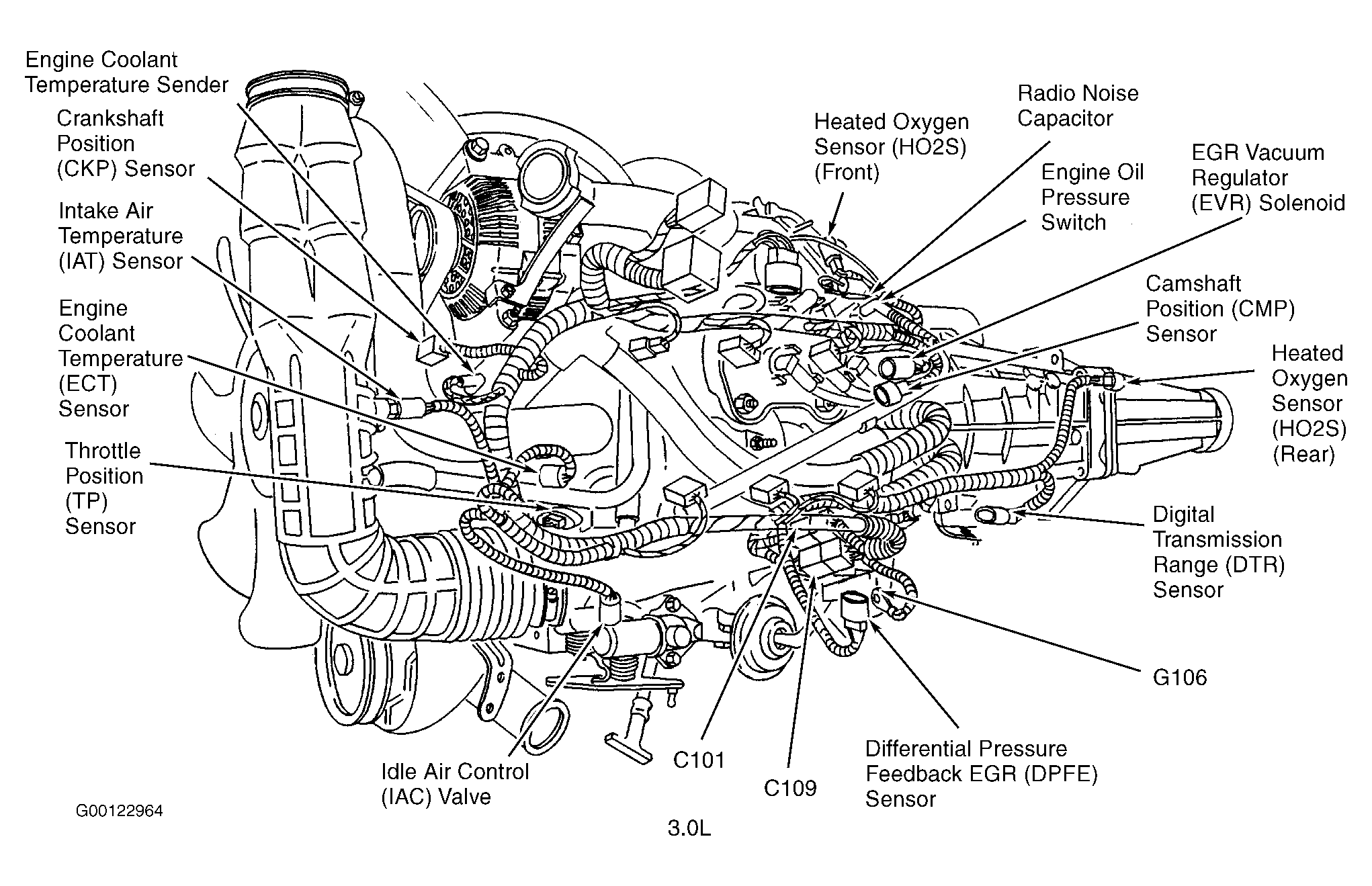

Fig 4: Top Of Engine (3.0L)

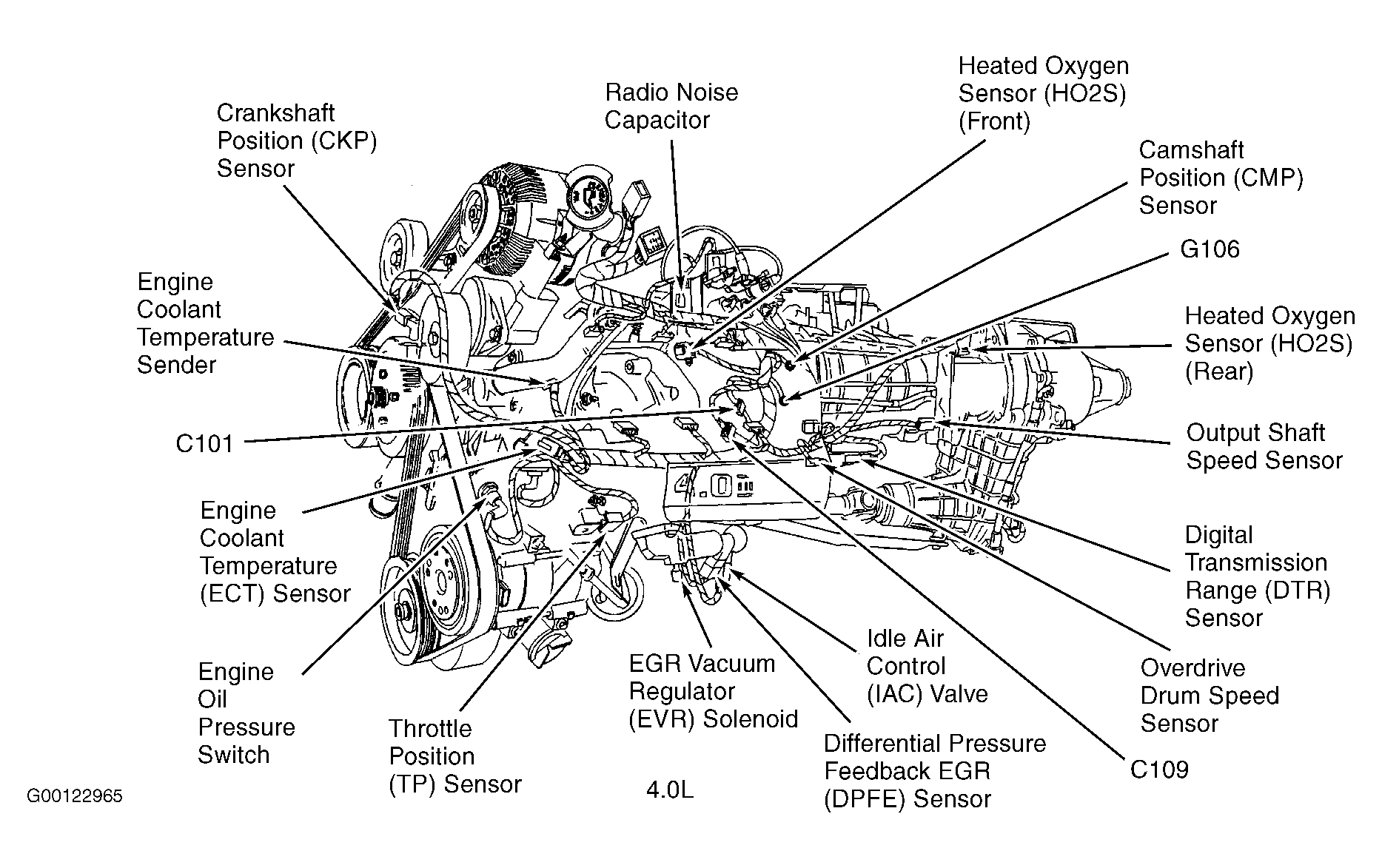

Fig 5: Top Of Engine (4.0L)

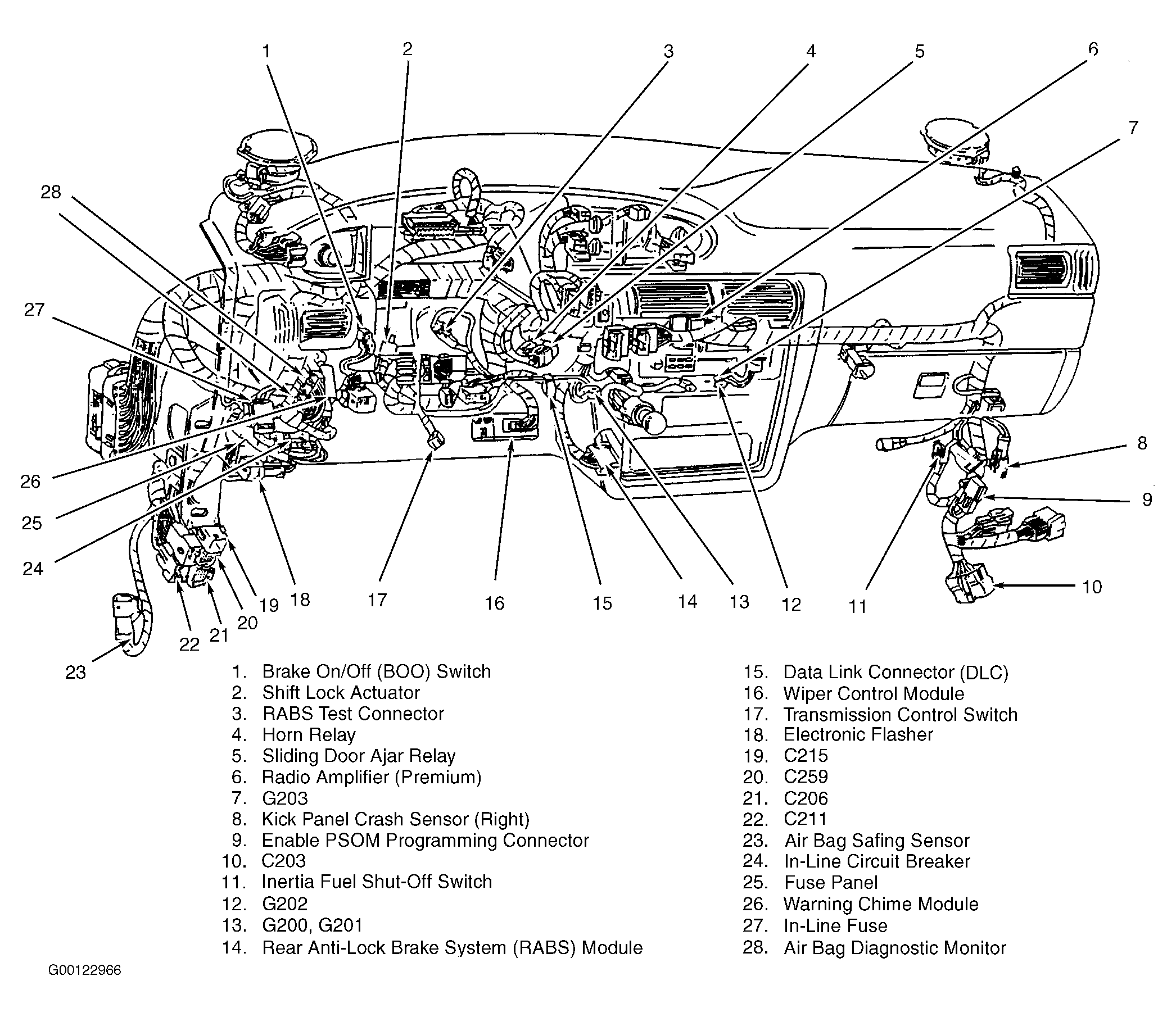

Fig 6: Dash
