Wiper Switch
WARNING: This page is about a different car, the 1997 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

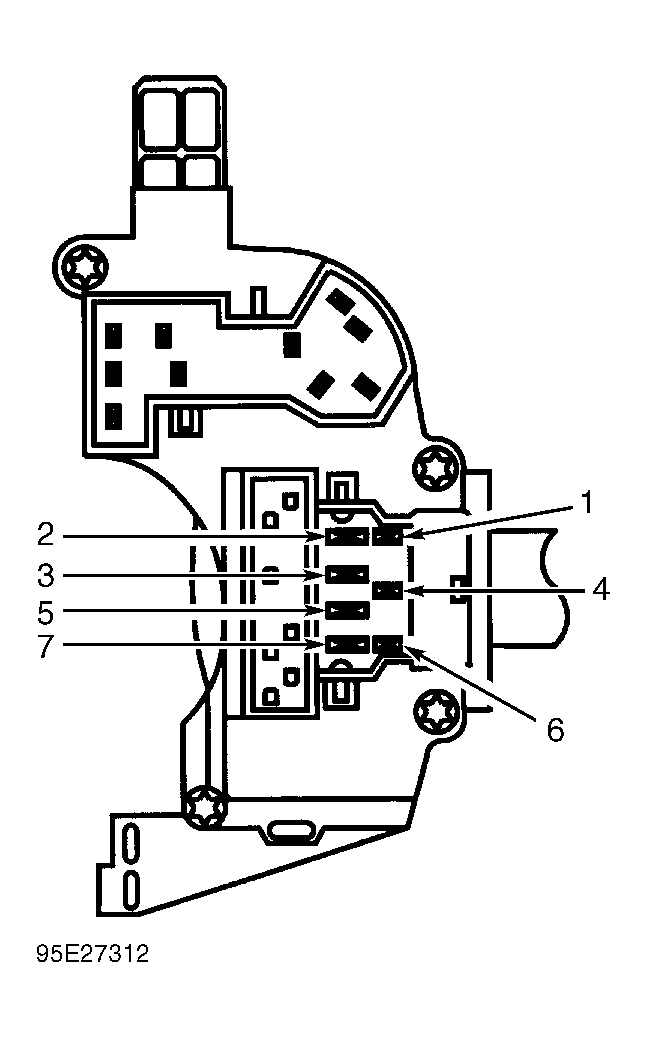

Wiper switch is incorporated into multifunction switch on steering column and is not serviced separately. Replace wiper switch if resistance is not as specified. See WIPER SWITCH RESISTANCE TEST TABLE. See Fig 1 .
WIPER SWITCH RESISTANCE TEST
| Switch Position Position | Measure Between Circuits No. | k/ohms | |||
|---|---|---|---|---|---|
| Wiper | |||||
| Off | 1 & 4 | 47.6 | |||
| Low | 1 & 4 | 4.08 | |||
| High | 1 & 4 | 0 | |||
| INT | 1 & 4 | 11.33 | |||
| WASH | |||||
| On | 4 & 6 | 0 | |||
| Off | 4 & 6 | 103.3 | |||
| INT (1) | |||||
| MIN | 4 & 6 | 3.3 | |||
| MAX | 4 & 6 | 103.3 | |||
|
|||||
