Engine Compartment Fuse Box

NOTE: Engine compartment fuse box is located on driver's side of engine compartment, near battery. See Fig 1 or Fig 2 .

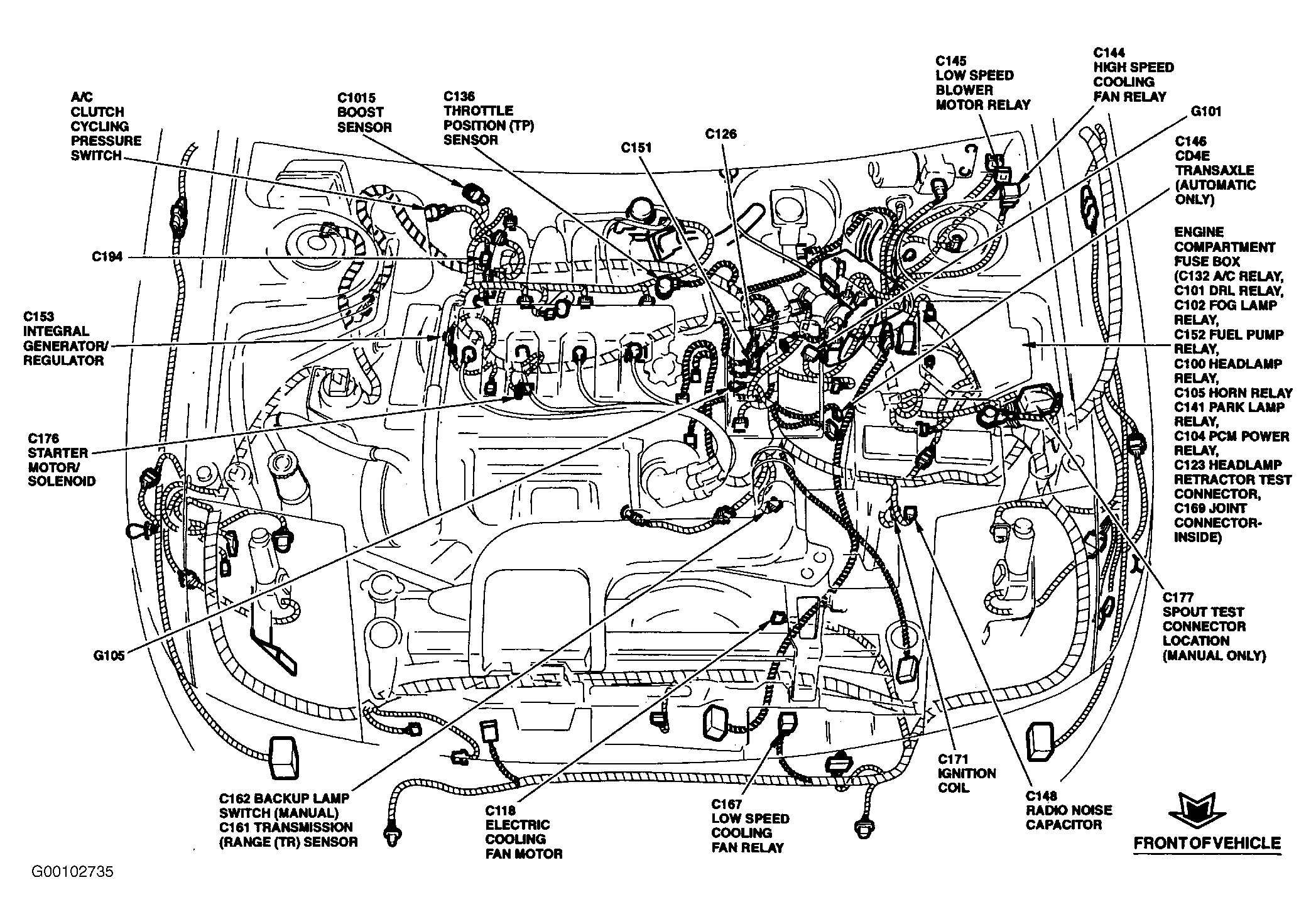

Fig 1: Locating Engine Compartment Electrical Components (2.0L)

Courtesy of FORD MOTOR CO.

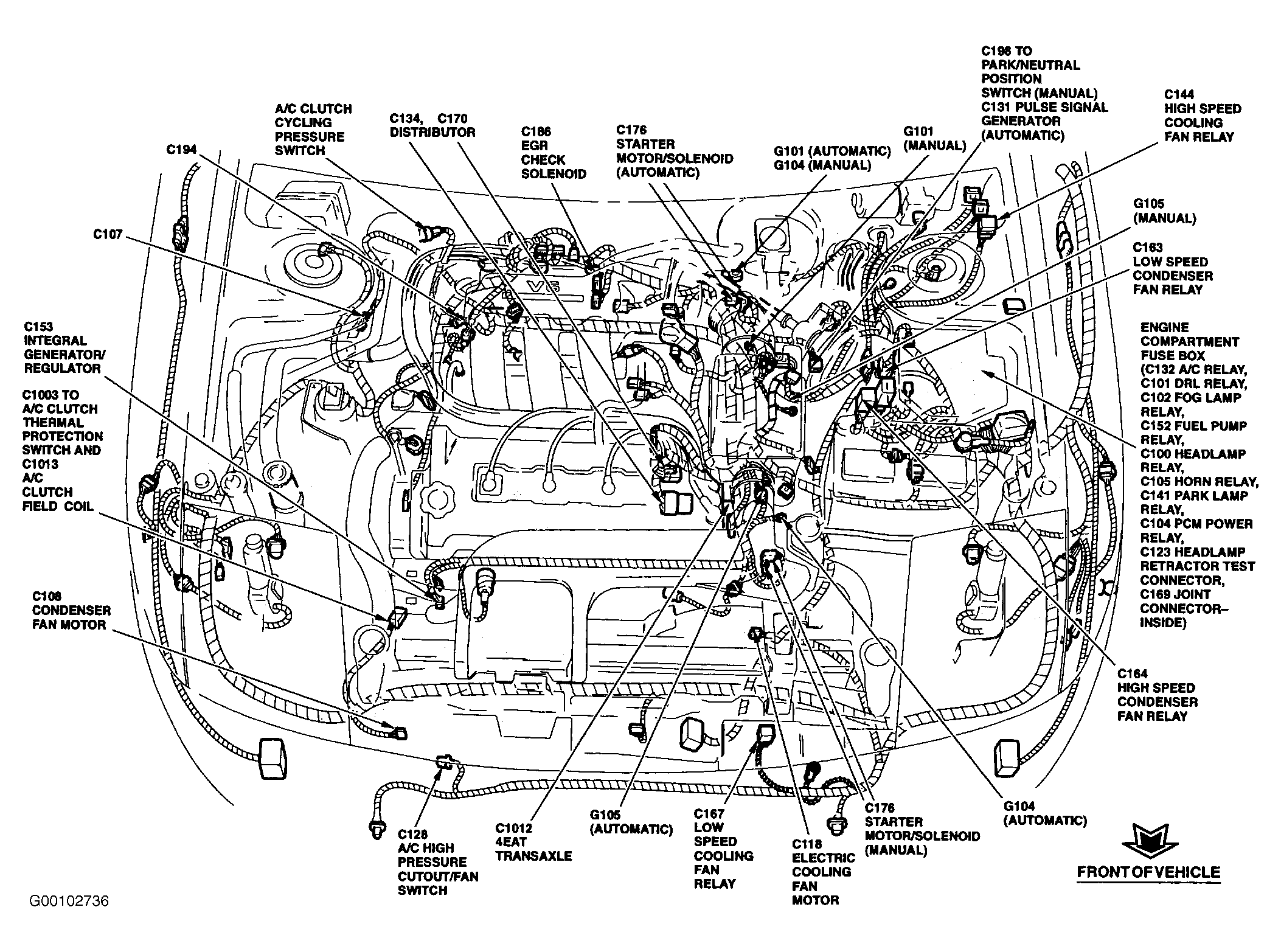

Fig 2: Locating Engine Compartment Electrical Components (2.5L)

Courtesy of FORD MOTOR CO.

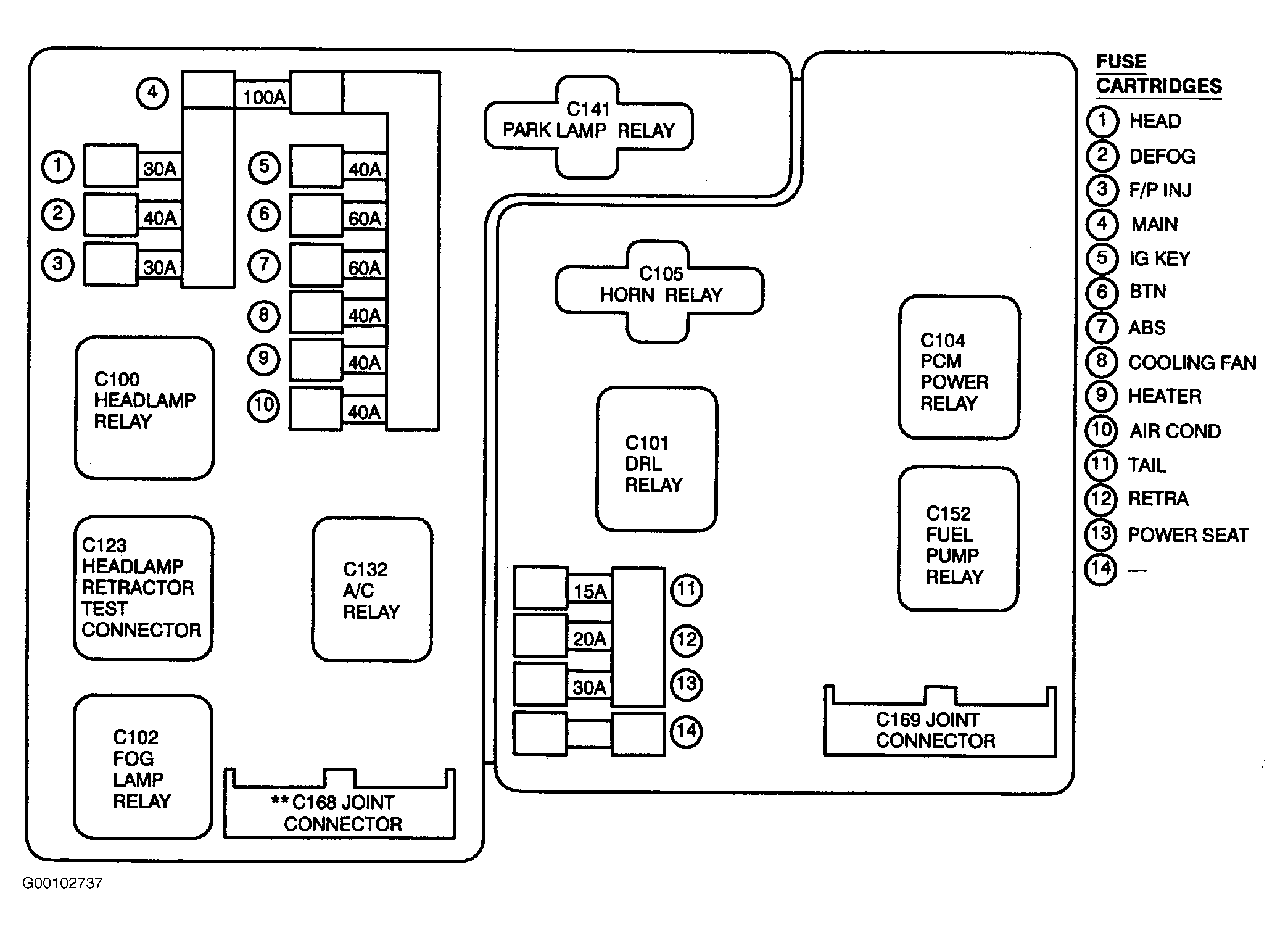

Fig 3: Identifying Engine Compartment Fuse Box Components

Courtesy of FORD MOTOR CO.

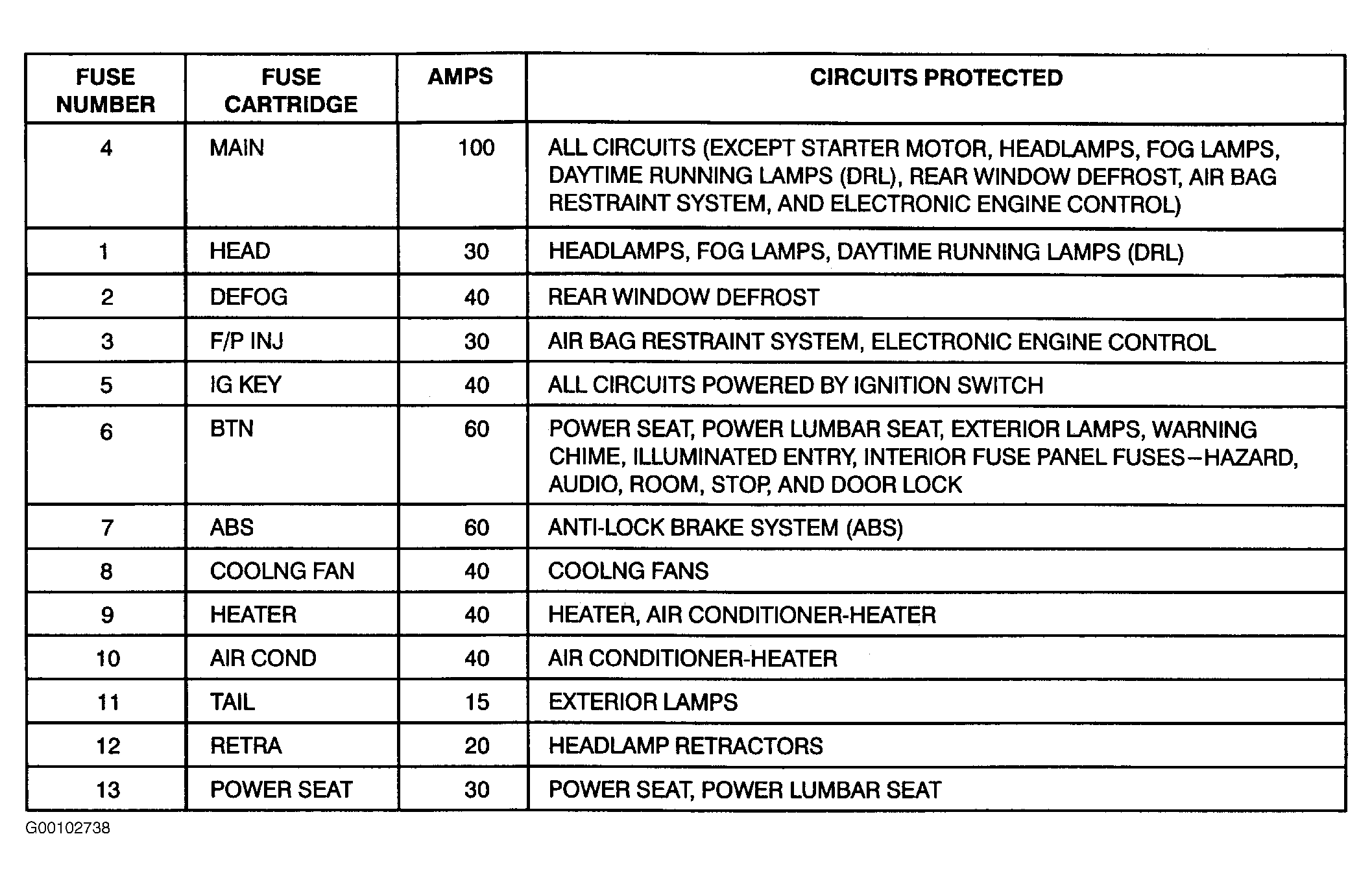

Fig 4: Engine Compartment Fuse Box Legend

Courtesy of FORD MOTOR CO.
